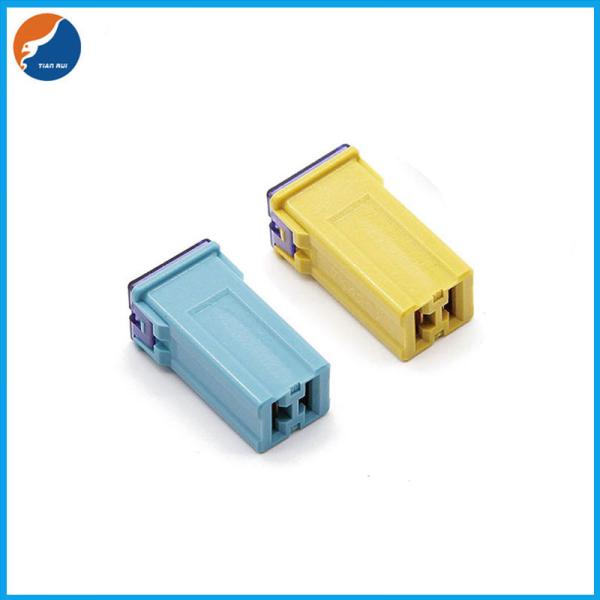

32V Slow Blow Plug In Type Cartridge Fuse SBFC-JT 20A 25A 30A 40A
50A 60A JCASE Fuse Female
SBFC-JT Slow Blow Auto Fuse
Rated current: 20A to 60A
Rated voltage: below DC32V
Safe breaking capacity: 1000A
Operating temperature: -40°C~120°C
Standard: IS08820-4
Production location: Japan/Mexico
Plating:-
Packing: 3000pcs
Insertion force: 44.1N or less
Withdrawal force: 9.8N~24.5N
Recommended torque:-
Fusing Characteristics
| Rating current | Fusing time |
| Min. | Max. |
| 110% | 100h | ---- |
| 135% | 60 s | 1800 s |
| 200% | 5 s | 60 s |
| 350% | 0.2 s | 7 s |
| 6005 | 0.04 s | 1 s |
Product Model Table
| Part No. | Rated current(A) | Color | Siemens | Voltage drop |
| 3424 | 20 | 0000 | 4.8 mΩ | 113 mV |
| 3474 | 25 | 0000 | 3.7 mΩ | 105 mV |
| 3434 | 30 | 0000 | 3.1 mΩ | 106 mV |
| 3444 | 40 | 0000 | 2.0 mΩ | 92 mV |
| 3454 | 50 | 0000 | 1.7 mΩ | 92 mV |
| 3464 | 60 | 0000 | 1.2 mΩ | 93 mV |
