22x58mm Fuse Link GR GL Glass Fast Blow Quick Speed Cylindrical Ceramic For Semiconductor Applications

22x58 mm Class aR and gR fuses New - gR operating class with and without striker

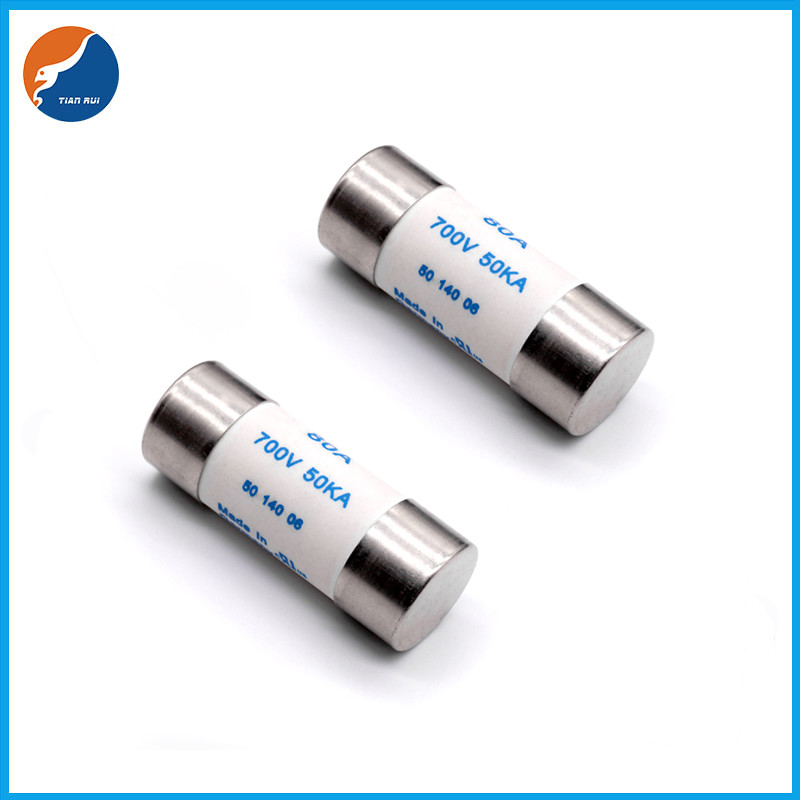

Product Description of 22x58MM Ceramic Fuse Link

22x58 mm class gR fuses provide full range overload and short-circuit protection and are used to protect AC/DC drives and semi conductors.

They are available with an optional striker to provide local indication of fuse status or work in the fuse holder to provide remote fuse indication capability.

Tianrui fuses feature superior current limitation and cycling performance expected in a high speed fuse.

Tianrui fuses couple high speed performance with full range protection. By operating at both shortcircuit and overload currents, they provide complete protection for semiconductor applications.

What’s more, these ferrule fuses are available with 4 to 100 A ratings in three compact sizes:

• 10x38 mm • 14x51 mm • 22x58 mm

Standard Features of 22x58MM Cylindrical Fuse Link

• Compact design

• Available with or without striker

• Compatible with fuse holders

Ratings of 22x58MM Fast Speed Fuse Link

• Volts - 690 Vac

• Amps

• 10x38 mm: 4 to 32 A

• 14x51 mm: 4 to 50 A

• 22x58 mm: 20 to 100 A

• Interrupting rating - 200 kA

• Operating class - gR (full range)

Dimension of Fast Blow Quick Speed 22x58MM Fuse Link

Fuse Size
