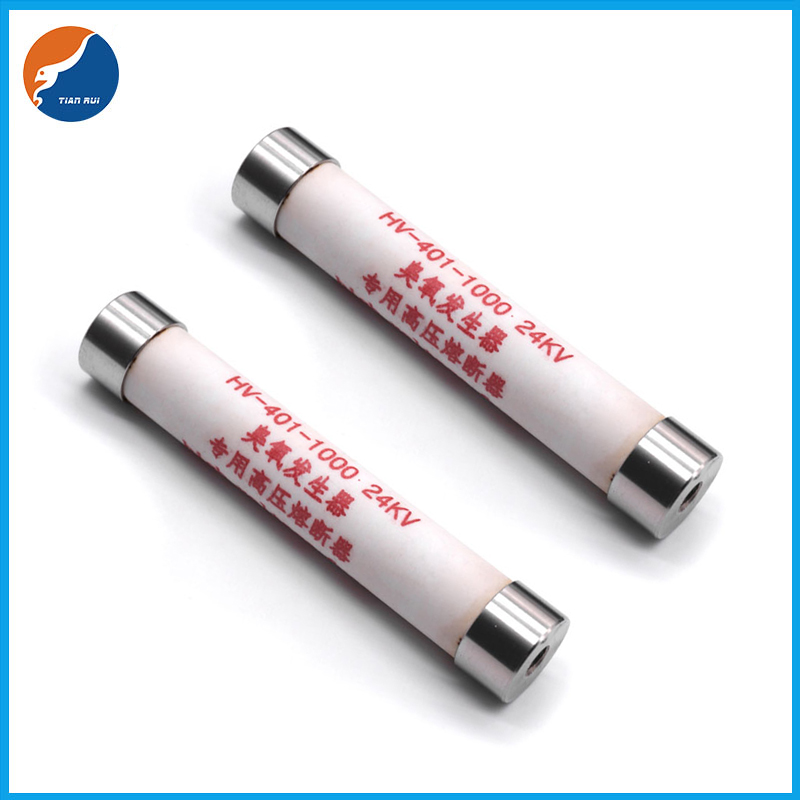

HV-401 HRC Cylindrical High Voltage Fuse Long Cartridge Type 1000V
DC 24KV For Ozone Generator
Specification of HV-401 High Voltage Fuse Cartridge Type 1000V DC
24KV For Ozone Generator
Product Name:HV-401 24KV High Voltage Fuse
Rated Current: 300mA to 50A
Rated Voltage: 24KV
Size: 18x100MM
Material: Engineering Ceramic Tube
Caps: Nickel Plated Copper Cap
Type: High Voltage Current-Limiting Fuse
Applicable frequency: Common Use
Application: Ozone Generator
| Size | Rated Current | Rated Voltage | Applicable Frequency |
| 18X100 | 300MA-50A | >24KV | Common Use |
Features of HV-401 High Voltage Fuse Cartridge Type 1000V DC 24KV
For Ozone Generator
Very slow speed, high breaking, anti-oxidation, anti-pulse,
anti-pulling arc
Application of HV-401 High Voltage Fuse Cartridge Type 1000V DC
24KV For Ozone Generator
The high-voltage fuse used in the previous ozone generator is large
in size, high in cost, cumbersome to assemble, and takes up a lot
of space. Moreover, it is easy to oxidize under high oxygen
environment and has certain safety hazards, and the reliability is
low.
After two years of research and development, our company has
developed a special integrated high-voltage fuse for ozone
generators, which has been verified by continuous experiments to
verify its performance in all aspects, and it can be better applied
to ozone generators.
Description of HV-401 High Voltage Fuse Cartridge Type 1000V DC 24KV For Ozone
Generator
A high-voltage fuse with reliable performance that meets the
characteristics requirements is very necessary in the ozone
generator. It is not a single protection discharge tube, but more
importantly, it must protect the stainless steel shell from arc
burning. If the discharge tube is broken down and the stainless
steel is burned , The discharge chamber equal to this tube is
useless, and the others are burned and then discarded. 10 kg
becomes 5 kg, a vicious circle, 5 kg becomes 1 kg, and more than 5%
is equivalent to scrap, that is, the entire equipment. So. , The
fuse should work normally during corona discharge, and protect it
during glow discharge. It does not break down the arc discharge and
burns the stainless steel inner wall. When the next maintenance is
necessary, the cause can be found or the discharge tube can be
replaced. Some companies There is a protection circuit, but the
protection circuit is operated under abnormal conditions. It can
react and perform when there is a breakdown in the discharge
chamber. It is already passive protection. Therefore, some
enterprise equipment is because they trust him too much. Own fuse
(no, there is no high-voltage fuse that meets the characteristics
of the ozone machine's high-voltage, high-frequency and other
characteristics), which leads to a decrease in equipment efficiency
and an increase in energy consumption and even danger.
Dongguan Tianrui Electronics Co., Ltd. was established in 2000 in
Dongguan City. Specializing in the production and operation of
various types of fuses and fuse holders, the company also acts as
an agent for the distribution of various brands of temperature
fuses, temperature control switches, fuse holders and fuse clips.
Since 2006, the company has invested a lot of human capital and
technology to develop a series of patented products-new
miniaturized high-voltage fuses, which has become the most
potential high-voltage fuse R&D and production enterprise in
the contemporary era.
Our company's products are suitable for over-current protection of
various household appliances, communication equipment and other
electronic appliances. The company has strong technical force,
superb production technology and advanced equipment for basic
processing such as assembly and testing. The annual production
capacity reaches more than a dozen series, more than 100 kinds of
products, and 120 million pieces. Products have been exported to
Europe, America, Canada, Hong Kong, Shenzhen, Zhuhai and other
places.
Our company has passed the ISO9001 quality management system
certification, the company strictly organizes production and
shipments in accordance with the ISO9001 quality management system,
and the quality is superior. Most of the series of products have
obtained UL, CUL, TUV, VDE, CSA, CCC, PSE and other certifications.
Over the years, the company has adhered to the corporate tenet of
"Customer First, Quality First, Service First" and has won wide
acclaim from customers at home and abroad. .
Warmly welcome customers at home and abroad to visit and negotiate
cooperation.
