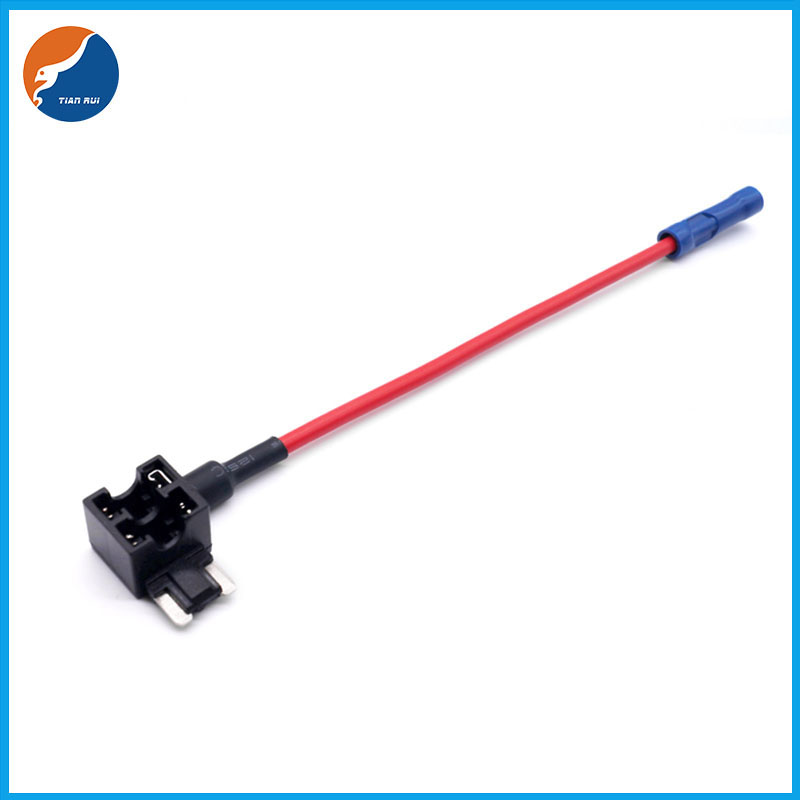

Auto Car Automotive Inline Fuse Holder ACN ATT Micro Low Profile
Fuse Holder Fuse Tap Adapter
Specifiation of Micro Fuse Tap
Rated current: 30A
Rated voltage: 32V
Housing material: Nylon
Terminal: tinned copper
Casing: heat shrinkable casing
Electronic wire: 1015, 16#150mm (according to customer
requirements)
Packing: 100PCS/bag (can be customized)
| Terminal in The Wire End |
| 1 | Transparent terminal |
| 2 | Blue insulation terminal |
| 3 | Stripped |
Description of Low Profile Fuse Holder Fuse Tap
Automobile electrical appliances are mainly used to add circuits on
the basis of the original automobile circuits to supply power to
automobile electronics (driving recorder, electric tailgate,
electronic dog, GPS, LED) and other devices. There are four types
of car fuse, medium, small, mini, and MICR02 fuse, corresponding to
medium car fuse, small car fuse, mini car fuse, and MICO02 car
fuse. It is easy to install and does not need to damage the
original circuit of the car.
Features of Micro Fuse Adapter
The products conventionally use UL certified wires such as 1015,
1007, 1430, etc. The wires are mainly drawn from tinned copper wire
and PVC outer coating material. Compared with the bare copper wire
core, it has stronger oxidation resistance and higher current per
unit area. Great feature. In addition, it can be customized
according to customer needs, such as Japanese standard AVSS, German
standard SPT-1 wire, etc., and the line type and length can also be
customized according to the customer's actual production.
Fuse tap is a solution for some fuse boxes to get electricity.
Conventional double fuse and electric appliances can’t cover the
cover. It mainly realizes the purpose of getting electricity. It
does not have line overcurrent protection. It is necessary to
increase the line fuse box to install insurance. Overcurrent
protection for the line.
Function of Low Profile Fuse Holder
Car navigation, ambient light to get electricity
Basic Information of Micro Fuse Tap Adapter
Take the main plastic of the electrical appliance: The fuse holder
is required to have anti-current, anti-voltage, corrosion
resistance, fire resistance, etc., and there are many plastic
materials that meet these characteristics. Our company uses nylon
(PA66) material with extremely high chemical stability, which is
wear-resistant and environmentally friendly, and has good
mechanical properties.
The plastic of the main body of the fuse: It acts as an insulating
support and protects the melt from external force damage. The
material used by our company is PC material or nylon material,
which is a kind of high-strength flame-retardant material, impact
resistance, abrasion resistance and other characteristics, which
can meet the demanding requirements of fuses.
Metal contact feet: Common main materials are zinc, tin, copper,
silver, etc. or alloys with these materials as the main components,
with good electrical conductivity, excellent ductility, and easy
forming. The material selected by our company is high-quality zinc
alloy material. The metal touch heel fuse melt is integrally
formed, acting as a bridge for the current to enter and exit the
melt.
| NAME | P/N | WIRE |
| ACN-1015 | C570100111N | #16-UL 1015 RED WIRE |
| ACN-3266 | C570100125N | # 16-UL 3266 RED WIRE |
