    1A - 100A DC Short Circuit Protection Hydraulic Magnetic Circuit Breaker 125V 250V 380V 400V AC

    Ask Lasest Price
    Brand Name : Tian Rui
    Model Number : A Series
    Certification : ROHS
    Price : Negotiable
    Payment Terms : D/P, T/T,Paypal, Western Union
    Supply Ability : 1000000PCS/Month
    Delivery Time : 5-7 Days
    • Product Details
    • Company Profile

    1A - 100A DC Short Circuit Protection Hydraulic Magnetic Circuit Breaker 125V 250V 380V 400V AC


    1A - 100A DC Short Circuit Protection Hydraulic Magnetic Circuit Breaker 125V 250V 380V 400V AC


    Technical Specification
    Temperature-40C to +85C
    Shock50G, 11ms or 100G, 6ms
    Vibration10 to 500 Hz, 10G(1.6 mm to 50 Hz)
    Life10,000 Switching operation with 6,000 at rate current
    Approximate weight1P-85g, 2P-185g, 3P-265g, 4P-360g
    Dielectric Strength2,500 Vac 50/ 60 Hz
    Rated Current1-100A according requirement
    Torgue Allowed for inserts screwM3 / 6-32 (0.6~0.8 Nm)

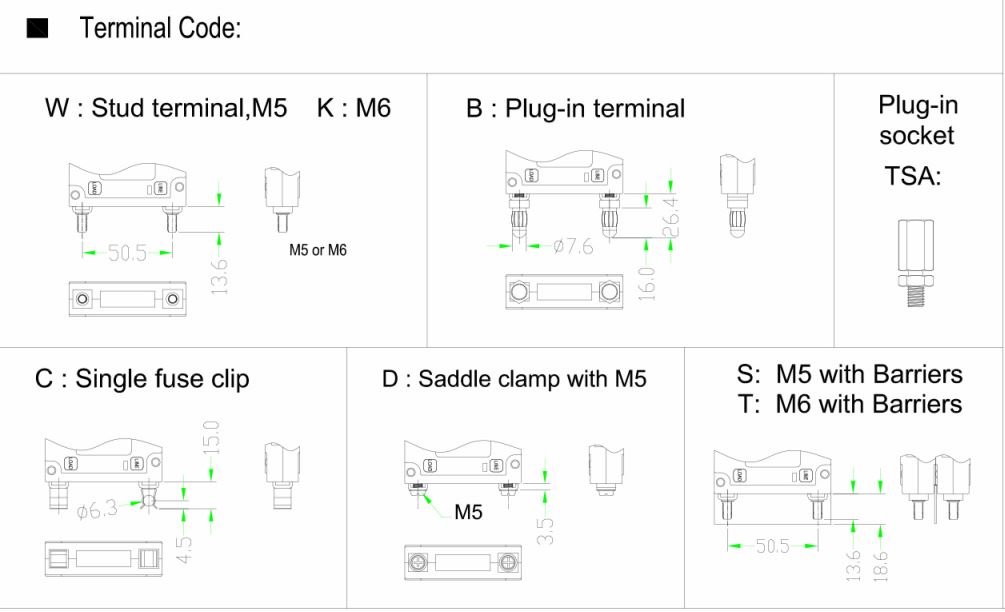

    Stud terminalM5 (2Nm) / M6 (3Nm)
    Interrupting CapacityInc 10,000A (EN 60934, EN 60947-2) Icu=5,000A (cUL)

    Description


    The electromagnetic circuit breaker is a new generation of small and precision equipment circuit breakers. It has a reasonable structure and adopts a hydraulic electromagnetic structure. It is mainly composed of an operating mechanism, a contact, and a decoupling mechanism. It has strong impact resistance and high flame retardancy. A current-limiting high-sensitivity miniature circuit breaker with double protection of overcurrent and short circuit. The circuit device protector is a fully sealed structure, adopts copper contact, longitudinal magnetic field structure, and is equipped with a new design permanent magnet and spring energy storage operating mechanism. It has the characteristics of simple structure and reliable operation. It is widely used in communication equipment systems, uninterrupted power supply equipment, railway locomotives, ships, elevators and other control systems, and it is also suitable for gasoline generator sets.


    1A - 100A DC Short Circuit Protection Hydraulic Magnetic Circuit Breaker 125V 250V 380V 400V AC


    Usage


    AC 50Hz/60Hz, voltage 230V, rated current 50A, 30A and below circuit, as the circuit overload and short circuit protection


    The surrounding air should not be higher than +85℃ and not lower than -40℃, the relative humidity of the air should not exceed 90%, and there should not be a place directly invaded by rain.
