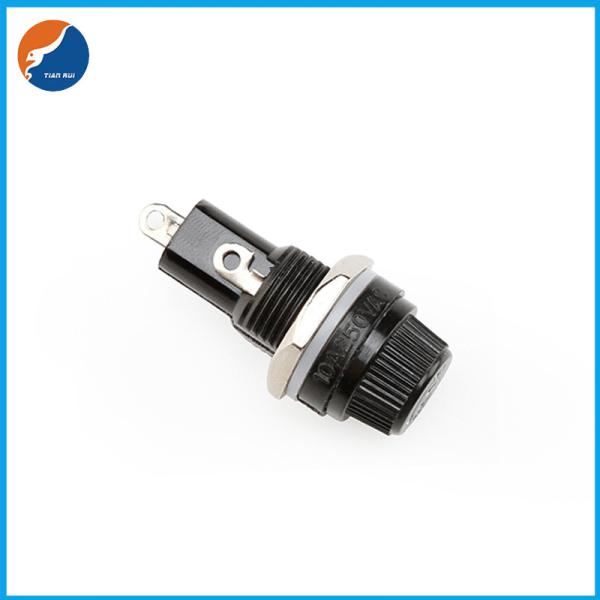

OP520 Series Panel Mount Fuse Holder For Glass Ceramic 5x20 Fuse

Model No. OP520

Rating: 10A 250VAC

Fuse Size: Φ 5.2 X 20 mm

Insulation resistance: DC 500V 100MΩ Min

Voltage breakdown AC 1500V 1 minute

Specification

Features

The durable PBT shell material is not easy to corrode
The metal clip has strong electrical conductivity and has an overload fuse protection function
Panel installation is simple and convenient to strictly follow safety standards

Application

Circuit overload protection, automotive electronics, household appliances, beauty equipment, medical equipment, instrumentation, consumer electronics, industrial controllers

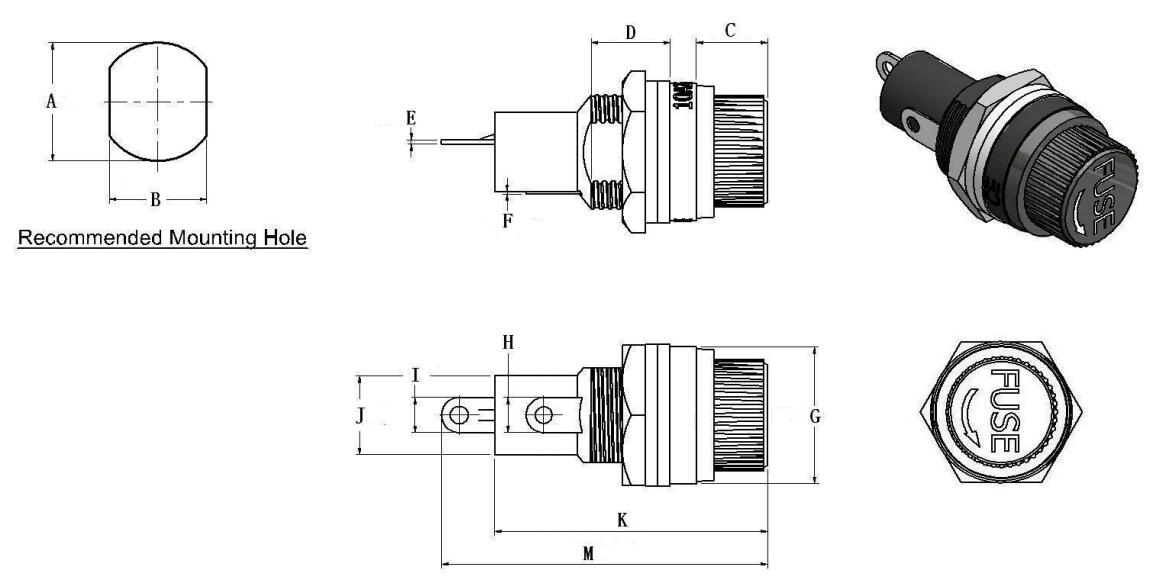

Drawing

Dongguan Tianrui Electronics Co., Ltd. was founded in 2010. It covers an area of 4,000 square meters and has a monthly production capacity of 50 million pieces. We are committed to be a comprehensive circuit protection component manufacturer and solution supplier. We are specialized in the design, development, production and sale of over-current protection, over-temperature protection, and over-voltage protection. Our products are widely used in consumer electronics, automobiles, ships, communications, power supplies, power tools, new energy and other fields. Our products cover auto-fuse, auto-fuse holder, current fuse, current fuse holder, temperature fuse, SMD fuse, resettable fuse, circuit breaker, thermal switch and so on. our products meet international standards including UL,

UR,CSA,CUL,VDE,TUV,PSE,CE,CCC,ROHS certification etc.

Partners:

Our products not only sell well in mainland China but also in North & South America, Southeast Asia and many other countries and regions. Our company has independent development and design capabilities, plastic molding, and metal stamping departments, and is equipped with multiple automatic fuse production lines and testing equipment and strives to find the best raw material suppliers. As we always put the quality at the first place, we have built a complete quality assurance system, which is the guarantee of the safety and stability of each product. Meanwhile, If you are interested in any of our products or would like to discuss a custom order, please feel free to contact us.

We are looking forward to the cooperation with you in the near future.
