24MM Overcurrent Protection 80mA 100 OHM WMZ12A PTC Thermistor

Ask Lasest Price
Brand Name :	TIAN RUI
Model Number :	WMZ12A
Certification :	ROHS
Price :	Negotiable
Payment Terms :	T/T, Paypal, Mastercard, Wetern Union, Alipay, etc
Supply Ability :	1000000PCS per Month
Delivery Time :	5-7 work days

Add to Cart

Product Details
Company Profile

24MM Overcurrent Protection 80mA 100 OHM WMZ12A PTC Thermistor

120 DEG 24MM PTC Overcurrent Protection 80mA 100 OHM WMZ12A PTC Thermistor

Features

• Non-contact circuit and component protection
• Automatically limit overcurrent
• Automatic recovery after troubleshooting
• No noise and no sparks when working
• Reliable and easy to use

Application

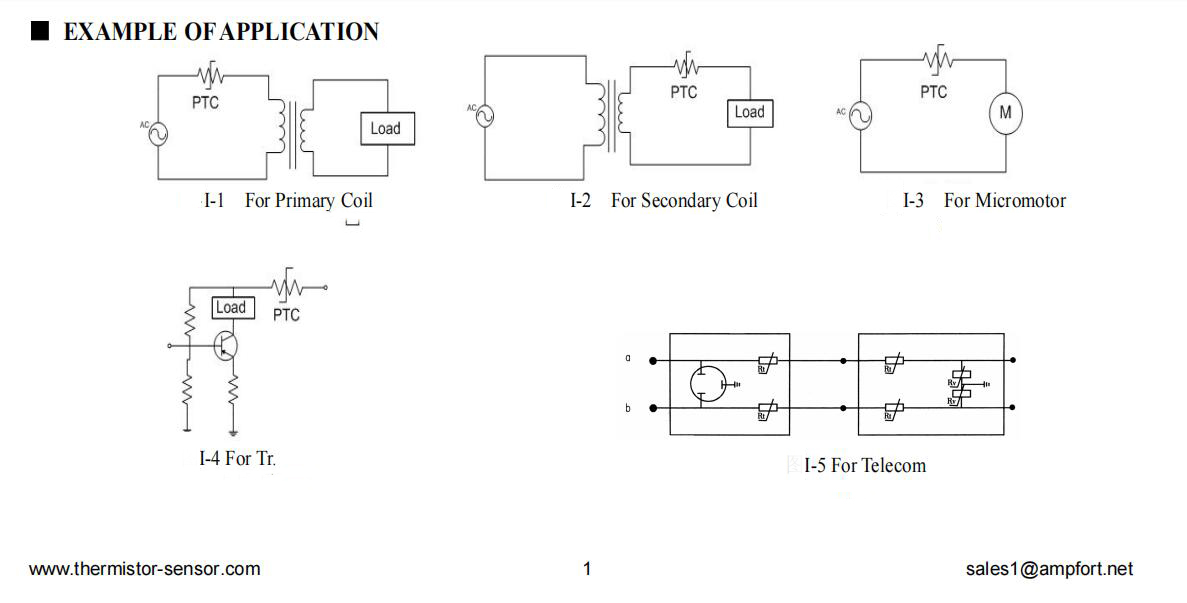

For Over Current Protection of the Adaptor (Primary Coil) / Charger / Watt-hour Meter / Multimeter / Micromotor and Transistor etc.

⑴ Series: WMZ12A ( Ⅰ/Ⅱ/Ⅲ )Overcurrent, overheating, overvoltage protection series thermistors
⑵ Curie Temp. : 50 - 50℃ 75 - 75℃ 85 - 85℃ 105 - 105℃ 120 - 120℃
⑶ Max Diameter D max : S - Φ4.5 A - Φ6.5 B - Φ8.5 LB-Φ10 M-Φ11.5 SL-Φ14.5
⑷ Rated Zero Power Resistance R N : 1R0- 1Ω 4R7-4.7Ω 15R-15Ω 101-100Ω
⑸ Tolerance of Resistance : V - ±25% M - ±20% K - ±10%
⑹ Shape of Leads : U - In-formed S - Straight A - Axis-formed
⑺ Leads material:U: Cu (P: Cp )
⑻ Max. Non Operating Current: 200-200mA 060-60mA 008-8mA
⑼ Packing Type: B - Bulk (A - Ammo R - Reel)
⑽ Leads Length: 5 : 5mm ( 10 : 10mm )
⑾ Coating Material: S-Black Silicone G-Green Silicone P-PF Resin E-Epoxy N-No Coating
⑿ Leads Diameter: 5-Ф0.5 6-Ф0.6 8-Ф0.8 1-Ф1.0
⒀ Leads Distance: A-2.5 B-5.0 C-7.5 D-10.0

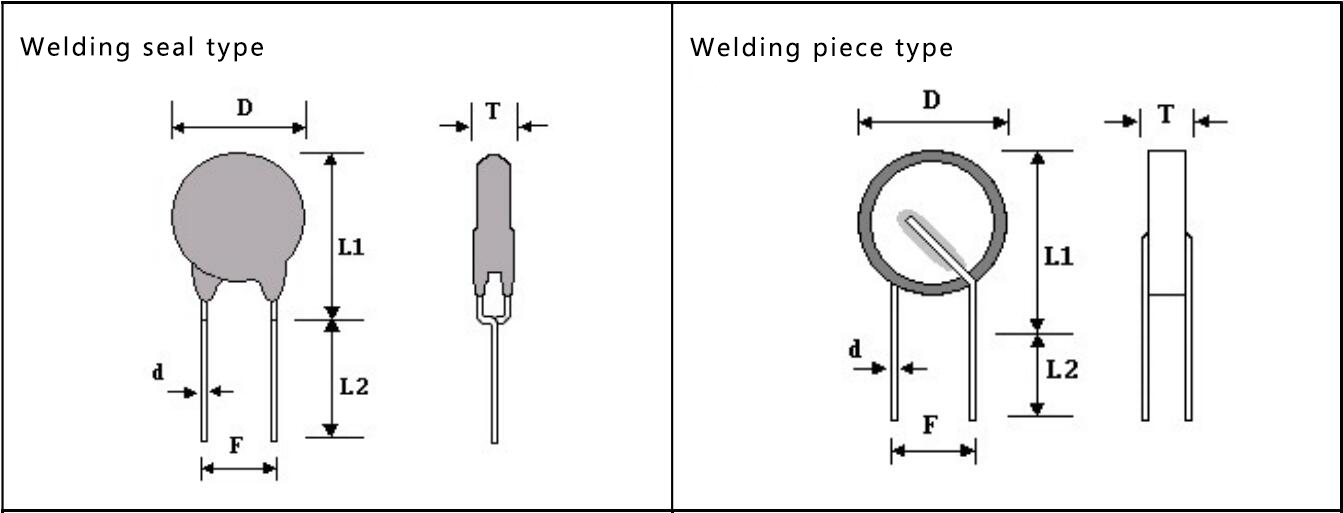

No.	Part No.	Max. Non Operating Current at 60℃ IN ( mA )	Trip Current at 25℃ IT ( mA )	Rated Zero Power Resistance RN (Ω)	Max. Permissible Current at VMax IMax ( A )	Dimension ( mm)
						DMax	TMax	d±0.05	F±1
Max. Operating Vol. VMax = 265VAC; Curie Temp. Tc = 80℃±7℃
1	WMZ12A-222M002	2	8	2200±20%	0.25	4.5	4.5	0.5	5.0
2	WMZ12A-152M003	3	12	1500±20%
3	WMZ12A-102M004	4	16	1000±20%
4	WMZ12A-681M005	5	20	680±20%
5	WMZ12A-471M006	6	24	470±20%
6	WMZ12A-151M025	25	100	150±20%	1.00	8.5	4.5	0.6	5.0
7	WMZ12A-121M030	30	120	120±20%
8	WMZ12A-101M035	35	140	100±20%
9	WMZ12A-82RM040	40	160	82±20%
10	WMZ12A-68RM045	45	180	68±20%
11	WMZ12A-25RM065	65	260	25±20%

No.	Part No.	Max. Non Operating Current at 60℃ IN ( mA )	Trip Current at 25℃ IT ( mA )	Rated Zero Power Resistance RN (Ω)	Max. Permissible Current at VMax IMax ( A )	Dimension ( mm)
No.	Part No.	Max. Non Operating Current at 60℃ IN ( mA )	Trip Current at 25℃ IT ( mA )	Rated Zero Power Resistance RN (Ω)	Max. Permissible Current at VMax IMax ( A )	DMax	TMax	d±0.05	F±1
Max. Operating Vol. VMax = 265VAC; Curie Temp. Tc = 105℃±7℃
12	WMZ12A-221M020	20	50	220±20%	0.25	4.5	4.5	0.5	5.0
13	WMZ12A-151M025	25	65	150±20%
14	WMZ12A-101M030	30	75	100±20%
15	WMZ12A-221M025	25	65	220±20%	0.30	5.5	4.5	0.6	5.0
16	WMZ12A-151M030	30	75	150±20%
17	WMZ12A-121M035	35	88	120±20%
18	WMZ12A-101M040	40	100	100±20%
19	WMZ12A-75RM045	45	115	75±20%
20	WMZ12A-68RM050	50	125	68±20%
21	WMZ12A-47RM055	55	138	47±20%
22	WMZ12A-221M025	25	65	220±20%	0.40	6.5	4.5	0.6	5.0
23	WMZ12A-151M035	35	88	150±20%
24	WMZ12A-101M045	45	115	100±20%
25	WMZ12A-68RM055	55	138	68±20%
26	WMZ12A-121M050	50	125	120±20%	1.00	8.5	4.5	0.6	5.0
27	WMZ12A-101M055	55	138	100±20%
28	WMZ12A-82RM060	60	150	82±20%
29	WMZ12A-62RM075	75	188	62±20%
30	WMZ12A-39RM085	85	213	39±20%
31	WMZ12A-22RM100	100	250	22±20%
32	WMZ12A-22RM120	120	300	22±20%	1.60	11.5	4.5	0.6	5.0/7.5
33	WMZ12A-15RM130	130	325	15±20%
34	WMZ12A-10RM140	140	350	10±20%
35	WMZ12A-8R2M150	150	375	8.2±20%
36	WMZ12A-18RM150	150	375	18±20%	2.50	14.5	5.0	0.6	5.0/7.5
37	WMZ12A-15RM160	160	400	15±20%
38	WMZ12A-12RM170	170	425	12±20%
39	WMZ12A-10RM180	180	450	10±20%
40	WMZ12A- 6R8M200	200	500	6.8±20%
Max. Operating Vol. VMax = 265VAC; Curie Temp. Tc = 120℃±7℃
41	WMZ12A-101M040	40	80	100±20%	0.30	5.5	4.5	0.6	5.0
42	WMZ12A-75RM045	45	90	75±20%
43	WMZ12A-62RM050	50	100	62±20%
44	WMZ12A-151M040	40	80	150±20%	0.40	6.5	5.0	0.6	5.0
45	WMZ12A-101M050	50	100	100±20%
46	WMZ12A-68RM060	60	120	68±20%
47	WMZ12A-47RM090	90	180	47±20%	1.60	11.5	5.0	0.6	5.0/7.5
48	WMZ12A-39RM100	100	200	39±20%
49	WMZ12A-33RM110	110	220	33±20%
50	WMZ12A-22RM130	130	260	22±20%
51	WMZ12A-15RM145	145	290	15±20%
52	WMZ12A-10RM160	160	320	10±20%
53	WMZ12A-8R2M170	170	340	8.2±20%
54	WMZ12A-22RM180	180	360	22±20%	2.50	14.5	5.0	0.6	5.0/7.5
55	WMZ12A-15RM200	200	400	15±20%
56	WMZ12A-10RM220	220	440	10±20%
57	WMZ12A-8R2M240	240	480	8.2±20%
58	WMZ12A-6R8M260	260	520	6.8±20%

No	Part No.	Rated Zero Power Resistance RN@25℃	Max. Non Operating Current IN( mA )		Trip Current at 25℃ IT ( mA )	Tripping time at max current T(Set)	Max. Current IMax(A)	Max. Voltage VMax(V)	Dimension ( mm )
No	Part No.	Rated Zero Power Resistance RN@25℃	@25℃	@40℃	Trip Current at 25℃ IT ( mA )	Tripping time at max current T(Set)	Max. Current IMax(A)	Max. Voltage VMax(V)	DMax	TMax	d±0.05	F±1
1	WMZ12A-85LB10RM150	10Ω±20%	150	120	300	0.55	3.0	250	10.0	5.0	0.6	5
2	WMZ12A-85B12RM060	12Ω±20%	90	60	160	0.2	2.0	250	9	5.0	0.6	5
3	WMZ12A-105B18RM110	18Ω±20%	135	110	270	0.18	3.0	250	8.5	5.0	0.6	5
4	*WMZ12A-70LB20RM070	20Ω±20%	110	70	200	0.3	3.0	250	10.5	5.0	0.6	5
5	WMZ12A-110B35RM070	35Ω±20%	90	70	230	0.45	3.0	250	9	5.0	0.6	5
6	*WMZ12A-108B35RM070	35Ω±20%	90	70	230	0.45	4.6	245	9	5.0	0.6	5
7	*WMZ12A-85LB50RM060	50Ω±20%	75	60	150	0.2	3.0	250	9.5	5.0	0.6	5
8	*WMZ12A-85LB50RM060	50Ω±20%	75	60	150	0.2	3.0	380	9.5	5.0	0.6	5
9	*WMZ12A-85LB55RM060	55Ω±20%	70	60	150	0.2	3.0	250	9.5	5.0	0.6	5
10	*WMZ12A-85LB55RM060	55Ω±20%	70	60	150	0.2	3.0	650	10.0	5.0	0.6	5
11	*WMZ12A-110B35RM070	35Ω±20%	100	70	230	0.2	3.0	245	7.2	3.5	0.5	4.5
12	WMZ12A-110B50RM090	50Ω±20%	90	60	180	0.15	4.5	250	7.2	3.5	0.5	4.5
13	WMZ12A-110H35RM060	35Ω±20%	90	60	180	0.2	2.5	230	6.3	3.5	0.5	4.5
14	*WMZ12A-110LB50RM060	50Ω±20%	90	60	190	0.2	2.5	250	8.4	3.5	0.6	5.5
15	*WMZ12A-115B25RM085	25Ω±20%	130	85	260	0.3	3.0	250	7.2	3.5	0.5	4.5
16	*WMZ12A-110B35RM070	35Ω±20%	110	70	230	0.2	3.0	250	7.2	2.2	/	/
17	*WMZ12A-85C10RM100	10Ω±20%	130	100	300	0.2	3.0	250	LWH=8.75.31.9
