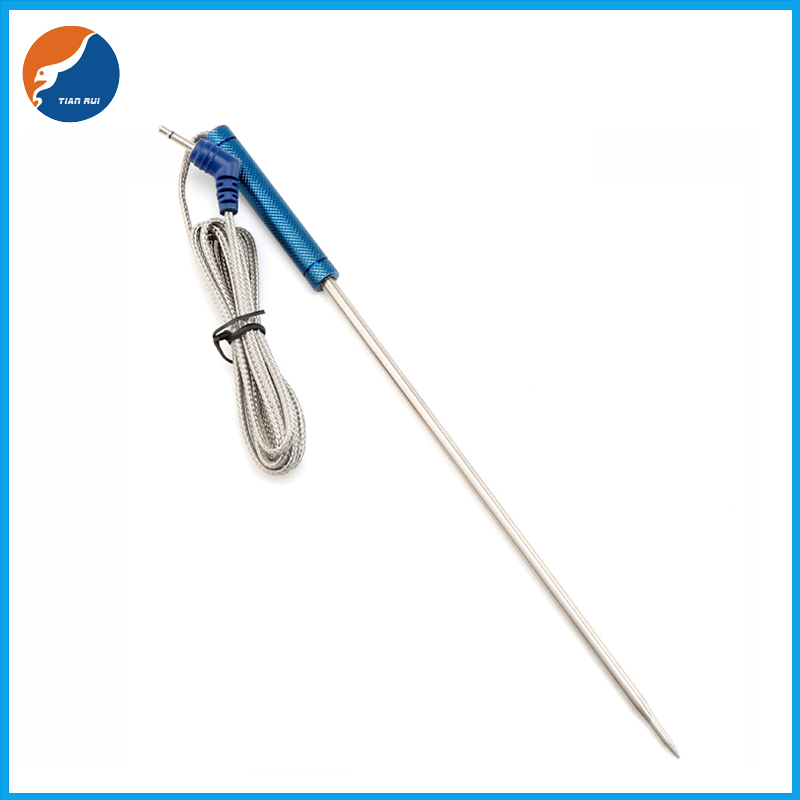

Aluminum Handle Food Grade Grill Temperature Probe BBQ Temperature
Sensor
Description
NTC Temperature Sensor is made with high precision, reliable NTC
Thermistor connected to high quality PVC cable,which is wrapped
with insulated, heat conductive and water resistant materials into
desired shapes, so as to facilitate long-distance temperature
measurement and control and installation.
Features
• Food-grade stainless steel piercing probe, reliable material,
flexible structure, simple to use
• Color stainless steel handle, non-slip and wear-resistant;
stainless steel braided network cable, high strength, good
anti-interference and shielding performance.
Product Application Range
Water heater, wall-hung stove, ice crusher, bread maker, oven,
microwave oven, deep fryer, food processor, water dispenser,
boiling bucket, electric kettle, coffee maker, soymilk machine,
heater, dishwasher, disinfection cabinet, washing machine,
Temperature measurement and control of smart toilets, dryers, air
conditioners and other household appliances, automobile air
conditioners, refrigerators, freezers, medium and low temperature
drying ovens, incubators and other occasions.
| RESISTANCE AT 25℃ (ohms) | B COMSTANT (25-50) | TEMPERATURE ℃ | THERMAL TIME CONSTANT (SEC.) | THERMAL DISSIPATION CONSTANT (Mw/℃) | H702S Series |
| PART No.: |
| 100K ±1% | 3950K ±1% | -40℃ ～ 350℃ | Max. 8 | ≧2.5 | CWFB1104FC-801M |

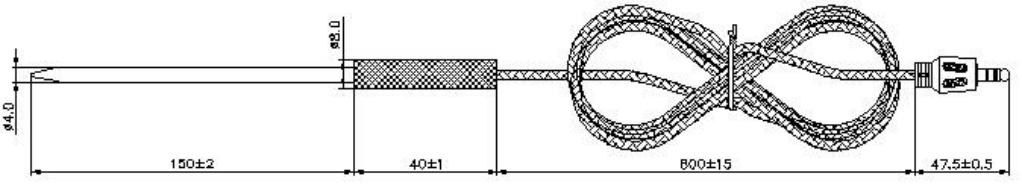

| No. | COMPONENT | MATERIAL AND SPECIFICATIONS | Q'TY | REMARK |
| 1 | ELEMENT | ACU CHIP | 1 | |
| 2 | HOUSING | Stainless Steel Probe Φ4*0.4*190 | 1 | |
| 3 | Aluminum Handle Φ8*Φ4.1*40 | 1 | |
| 4 | LEAD WIRE | AWG#26 Braided wire 380℃ | 1 | |
| 5 | CONNECTOR | 3.5mm Stereo Jack | 1 | BLACK |
| RESISTANCE AT 25℃ (ohms) | B COMSTANT (25-50) | TEMPERATURE ℃ | THERMAL TIME CONSTANT (SEC.) | THERMAL DISSIPATION CONSTANT (Mw/℃) | H702S Series |
| PART No.: |
| 100K ±1% | 3950K ±1% | -40℃ ～ 350℃ | Max. 8 | ≧2.5 | CWFB1104FC-801M |
| No. | COMPONENT | MATERIAL AND SPECIFICATIONS | Q'TY | REMARK |
| 1 | ELEMENT | ACU CHIP | 1 | |
| 2 | HOUSING | Stainless Steel Probe Φ4*0.4*190 | 1 | |
| 3 | Aluminum Handle Φ8*Φ4.1*40 | 1 | |
| 4 | LEAD WIRE | AWG#26 Braided wire 380℃ | 1 | |
| 5 | CONNECTOR | 3.5mm Stereo Jack | 1 | BLACK |
| RESISTANCE AT 25℃ (ohms) | B COMSTANT (25-85) | TEMPERATURE ℃ | THERMAL TIME CONSTANT (SEC.) | THERMAL DISSIPATION CONSTANT (Mw/℃) | H702S Series |
| PART No.: |
| R25:1388KΩ ±5% R200:4KΩ ±1% | 4557 | -40℃ ～ 350℃ | Max. 8 | ≧2.5 | CWFB1105FD-182M |

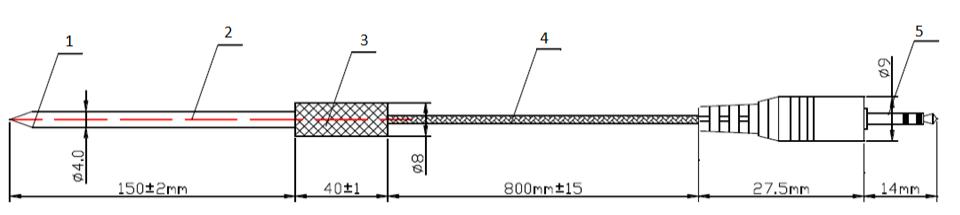

| No. | COMPONENT | MATERIAL AND SPECIFICATIONS | Q'TY | REMARK |
| 5 | ELEMENT | ACU CHIP | 2 | |
| 4 | HOUSING | Stainless Steel Probe (S304) Φ4*0.4*190 | 1 | |
| 3 | Aluminum Handle Φ8*Φ4.1*40 | 1 | |
| 2 | LEAD WIRE | AWG#26 Braided wire (Braided Cable) 380℃ | 1 | |
| 1 | CONNECTOR | 3.5mm Stereo Jack | 1 | BLACK |
| RESISTANCE AT 25℃ (ohms) | B COMSTANT (25-85) | TEMPERATURE ℃ | THERMAL TIME CONSTANT (SEC.) | THERMAL DISSIPATION CONSTANT (Mw/℃) | H702S Series |
| PART No.: |
| R25:1388KΩ ±5% R200:4KΩ ±1% | 4557 | -40℃ ～ 350℃ | Max. 8 | ≧2.5 | CWFB1105FD-182M |
| No. | COMPONENT | MATERIAL AND SPECIFICATIONS | Q'TY | REMARK |
| 5 | ELEMENT | ACU CHIP | 1 | |
| 4 | HOUSING | Stainless Steel Probe (S304) Φ4*0.4*190 | 1 | |
| 3 | Aluminum Handle Φ8*Φ4.1*40 | 1 | |
| 2 | LEAD WIRE | AWG#26 Braided wire 380℃ | 1 | |
| 1 | CONNECTOR | 3.5 mm mono audio plug | 1 | BLACK |
