DC Power Hexagon Rhombus Panel Mounted Auto Automatic Reset Circuit Breaker for Boat

* Single pole, thermal type breakers

* Rating: 10-30A T1(51) @ 30Vdc, 40-50A T1(51) @ 24Vdc (consult to factory for 70A or special requirement)

* Interrupt Capacity: 3KA@32Vdc, per SAE & ABYC E-11

* Ingress Protection rating: IP66 (consult to factory for IP67)

* Operating temperature: -40C to 85C (-40F to 185F )

* Storage temperature: -40C to 125C (-40F to 260F )

* Materials:Housing is thermal plastic UL rated 94V0.

* Marking: Standard marking includes amp/volt rating, parts no.

* Terminal: #10-32 threaded studs.

* Torque rating: 24in-lb (2.7Nm) max.

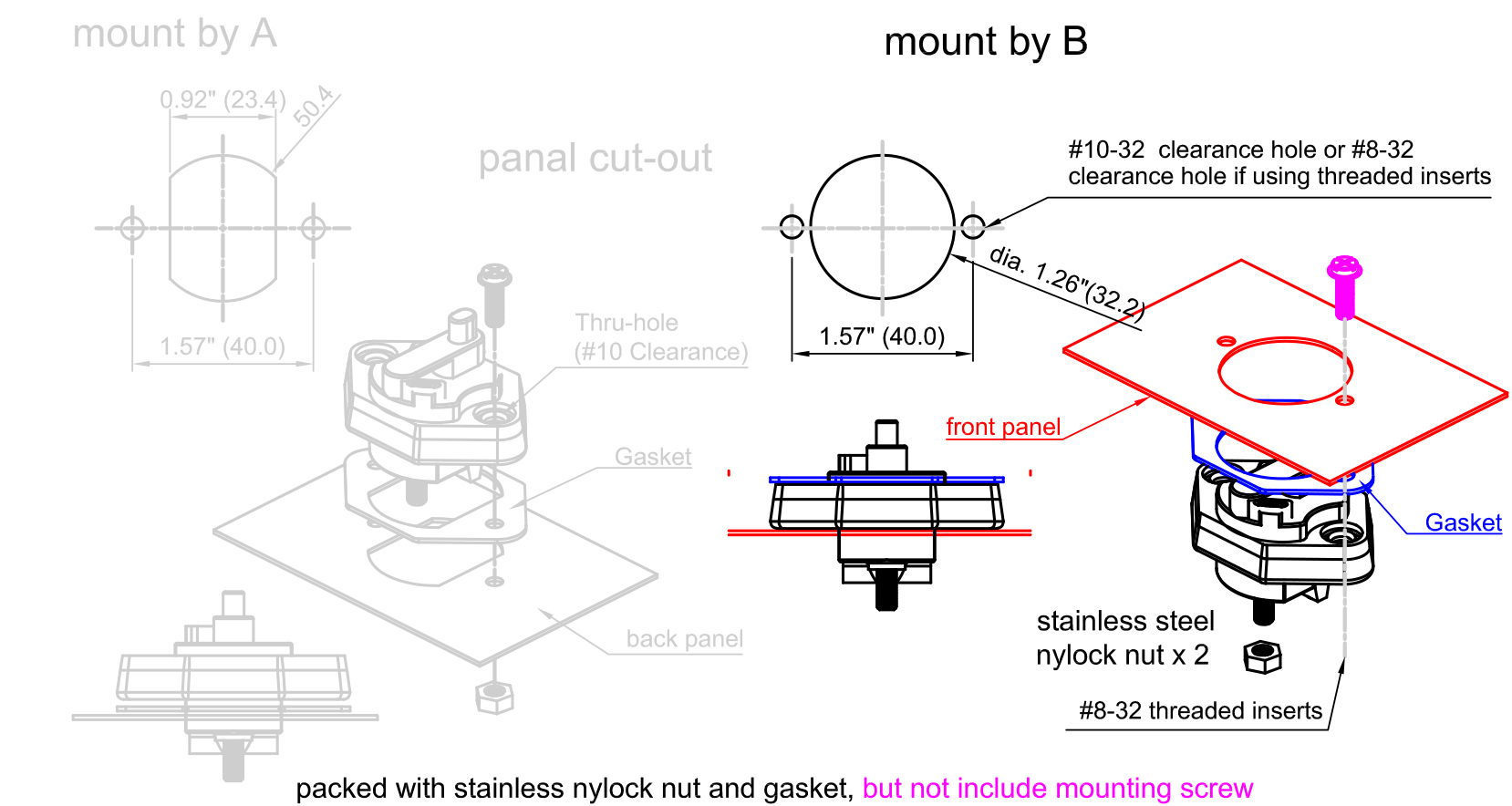

* Mounting torque rating: support #8-32 threaded inserts,or #10 clearance holes.18in-lb (2.0Nm) max.

* Type 1 - Automatic reset, rate up to 30A-30Vdc and 50A-24Vdc

Compliance: SAE J553; ABYC E-11; SAE J1171 (Ignition Protected)

packed with nuts & gasket, but not include mounting screw.

Advantage

The current of this series products can be from 10-50A, which can solve your short-circuit troubles. Because the overload protector can be used repeatedly, it also greatly reduces your expenses in terms of cost.

Features

• Use portable
Small size, can be carried with you, does not occupy space, can be used after connecting the wire, plug and play

• Bakelite material
Bakelite has high mechanical strength, good insulation, heat resistance and corrosion resistance

• Widely applicable
Universally used for the protection of accessories such as trucks, trams, buses, etc.

• High and low temperature resistance
Operating environment is suitable for minus 40°C to 85°C

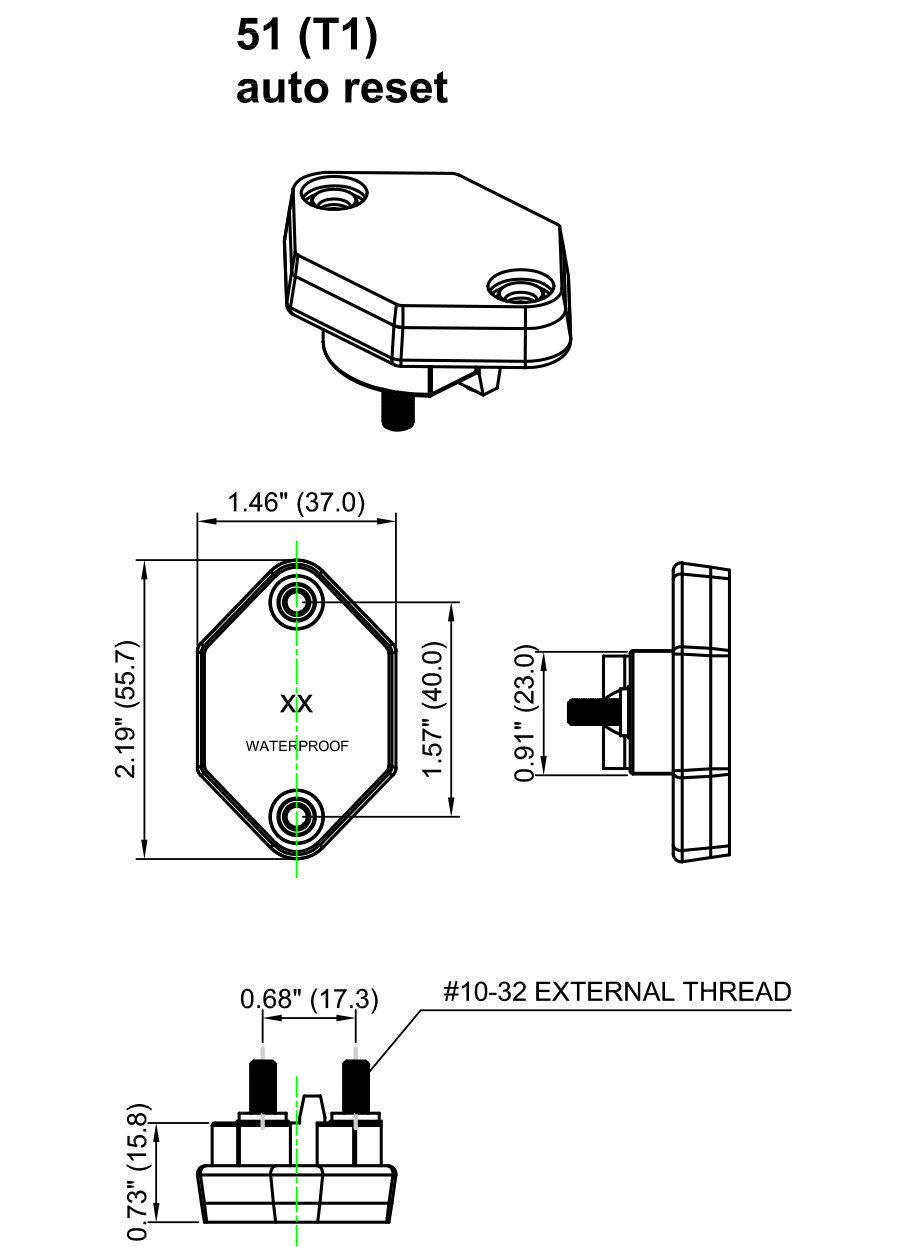

Size inch(mm)
