SL-708A ATC ATO 30A In-Line Fuse Holder 16 Gauge Wiring Harness 12V
Standard Plug Socket
Specification of ATO In-line Fuse Holder
Product Name: ATO ATC In-line Fuse Holder
Category: In-line fuse holder
Model No. SL-708A
Maximum voltage: 32 (V)
Maximum current: 50 (A)
Uses: automotive electronics
Plastic parts: PVC
Terminal pole: brass nickel plated (silver plated)
Suitable fuse specifications: small insert fuse
Feature description: fireproof, high temperature resistance, strong
contact performance, corrosion resistance, long service life,
multiple models to choose
Warm reminder: A large number of stocks are available, which can be
customized according to customer needs!
| Material | Plastic |
| Applicable fuse | Blade type ATS 1A-30A |
| UL 1015 wire |
| Gauge | Length | Color |
| #12 | 20 cm | Yellow |
| #14 | 20 cm | Yellow |
| #16 | 20 cm | Black |
| #18 | 20 cm | Red |
Features of ATC In-line Fuse Holder
* Premium Quality---Inline blade fuse holders wiring harness select
Tin plated copper as conductor to ensure its good bending
performance, melting resistance and excellent electrical
conductivity.Protecting circuits and electrical equipment.
* Waterproof Protection---Unique design of dual slot tight-fitting
waterproof lid to enhance moisture-proof, waterproof performance
and dust proof.
* In-line Fuse Holders, Protecting circuits and electrical
equipment. Easy to add additional circuits for cars, CD players,
fax machines and etc.
* Easy Installation: Insert your fuse to the holder or you can
change different votage fause,close the cover and then connect the
fuse holder to the circut.
Application of 30A In-Line Fuse Holder
Blade fuse use for automobile lighting, audio, UPS, auto
headlights, taillights, stoplights, electronic circuit board or
other electronic products with low voltage circuit. Blade fuse
(also called plug-in fuse) comes with a high-temperature
impact-resistant plastic casing & two prongs that fit into sockets
mostly used in automobiles. Each fuse is printed with rated current
in amperes on the top. The amp color would change with different
current,which is according to international standards.if you want
to have you own logo or your company information on our prodcut
packing ,you can supply ur design to us.
Fuse holders can be used in any applications where you need to
ensure electrical protection, isolation and switching under load of
inductive or resistive loads. The technology solutions applied to
reduce power dissipation help to minimize module heating. Fuse
holders are suitable for protection against overloads and short
circuits.

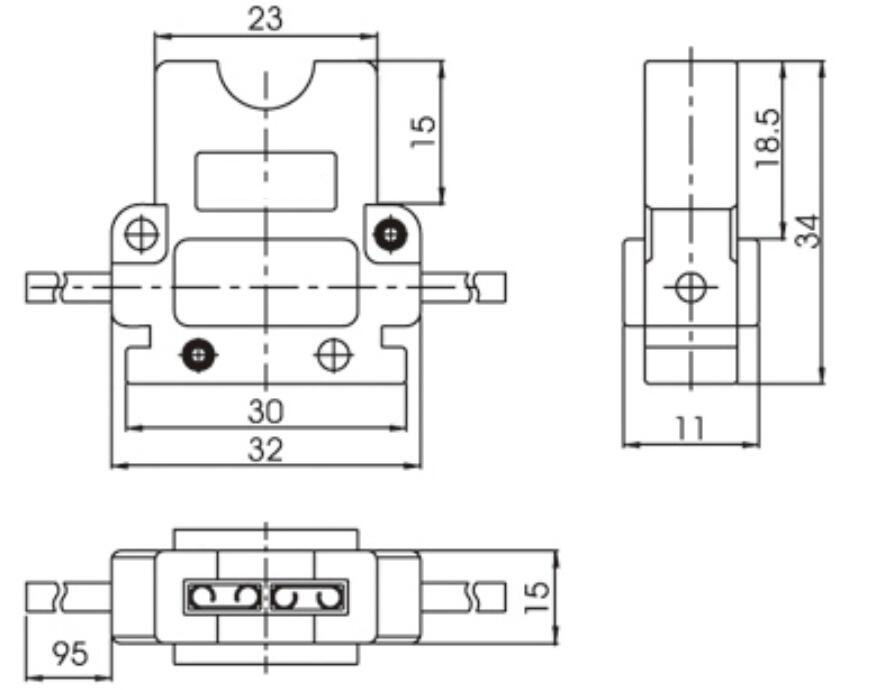

Drawing of 16 Gauge In-Line Fuse Holder
What is Car Fuses & Inline Fuses Holder
An automotive fuse is an electrical component that is designed to
protect other components, devices, and wiring from any damage that
might occur due to excess current flow. When a circuit fails or is
abnormal, the current is constantly rising, and the increased
current may damage some important devices or valuable devices in
the circuit, and may also burn the circuit or even cause a fire. If
the fuse holder fuse holder is correctly placed in the circuit, the
fuse will blow itself when the current abnormally rises to a
certain height and a certain degree, and a dangerous situation such
as a fire may occur. At this time, the fuse holder acts to isolate
from the outside world, thereby protecting the circuit from safe
operation.
