3R-3SS SMD Tape 2KA 90V-470V GDT Gas Discharge Tube High Insulation Resistance For Broadband Equipment

Description of 3R-3SS SMD Tape 2KA 90V-470V GDT Gas Discharge Tube

Gas discharge tubes (GDT) use noble gasses enclosed in ceramic tubes to provide an alternate circuit path for voltage spikes. The ceramic envelope and with nickel connectors allow for high loads. 3R-3SS Gas Discharge Tubes (GDT) series has a surge rating of 2kA, 8/20μs.Offered in a Squared Surface Mount package, which helps to make pick and place on PCB process easier.

This GDT series is perfectly suited for broadband equipment applications. The GDT’s low off-state capacitance is compatible with high bandwidth applications and this capacitance loading value does not vary if the voltage across the GDT changes.

3R-3SS Gas Discharge Tube (GDT) series are specifically designed for protection of electrical, multimedia, and communication equipment against over voltage transients in surface mount assembly applications.

Features of 3R-3SS SMD Tape 2KA 90V-470V GDT Gas Discharge Tube

• Extremely small size
• Excellent response to fast rising transients
• Stable breakdown voltage
• GHz working frequency
• 8/20μs Impulse current capability: 2KA
• Surface Mount package
• Non-Radioactive
• Ultra Low capacitance (<1pF)
• High insulation resistance
• Lead-free compliant
• RoHS and REACH compliant
• Size: 3.5mm*3.5mm*6.8mm
• Storage and operational temperature: -40~+90°C

Applications of 3R-3SS SMD Tape 2KA 90V-470V GDT Gas Discharge Tube

• Communication equipment
• CATV equipment
• Data lines
• Telecom SLIC protection
• Broadband equipment
• ADSL equipment, including ADSL2+
• XDSL equipment
• Satellite and CATV equipment
• Test equipment
• Consumer electronics
• ESD protection

Electrical Characteristics

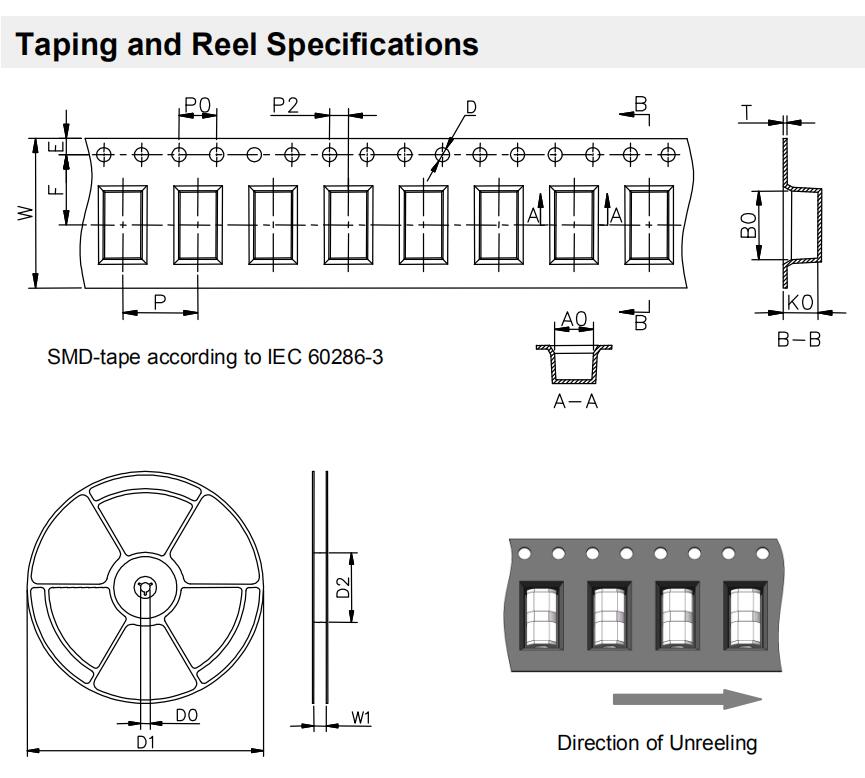

Soldering Parameters - Reflow Soldering (Surface Mount Devices)

Reflow Condition

Pb - Free assembly

Pre Heat

-Temperature Min (Ts(min))

150°C

-Temperature Max (Ts(max))

200°C

- Time (min to max) (ts)

60 -180 Seconds

Average ramp up rate ( Liquids Temp TL) to peak

3°C/second max

TS(max) to TL - Ramp-up Rate

5°C/second max

Reflow

- Temperature (TL) (Liquids)

217°C

- Time (min to max) (ts)

60 -150 Seconds

Peak Temperature (TP)

260 +0/-5°C

Time within 5°C of actual peak Temperature (tp)

10 - 30 Seconds

Ramp-down Rate

6°C/second max

Time 25°C to peak Temperature (TP)

8 minutes Max

Do not exceed

260°C
