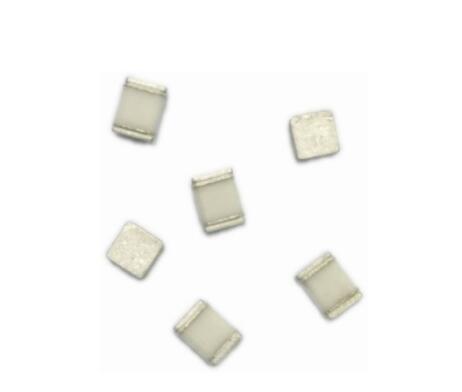

SMD3225 1KA 0.5pF 1210 SMD Gas Discharge Tube Surge Protector Arrestor with A Squared Surface Mount Package

Description of SMD3225 1KA 0.5pF 1210 SMD Gas Discharge Tube Surge Protector Arrestor

Gas discharge tubes (GDT) use noble gasses enclosed in ceramic tubes to provide an alternate circuit path for voltage spikes. The ceramic envelope and with nickel connectors allow for high loads. SMD3225 Gas Discharge Tubes (GDT) series has a surge rating of 1kA, 8/20μs.Offered in a Squared Surface Mount package, which helps to make pick and place on PCB process easier.

This GDT series is perfectly suited for broadband equipment applications. The GDT’s low off-state capacitance is compatible with high bandwidth applications and this capacitance loading value does not vary if the voltage across the GDT changes.

SMD3225 Gas Discharge Tube (GDT) series are specifically designed for protection of electrical, multimedia, and communication equipment against over voltage transients in surface mount assembly applications.

Features of SMD3225 1KA 0.5pF 1210 SMD Gas Discharge Tube Surge Protector Arrestor

• Excellent response to fast rising transients
• Stable breakdown voltage
• GHz working frequency
• 8/20μs Impulse current capability: 1KA
• Surface Mount package
• Non-Radioactive
• Ultra Low capacitance(<0.5pF) and insertion loss
• Lead-free compliant
• RoHS and REACH compliant
• Very Small Size(EIA 1210)
• Storage and operational temperature: -40~+90°C

Applications of SMD3225 1KA 0.5pF 1210 SMD Gas Discharge Tube Surge Protector Arrestor

• Communication equipment
• CATV equipment
• Test equipment
• Data lines
• Power supplies
• Telecom SLIC protection
• Broadband equipment
• ADSL equipment, including ADSL2+
• XDSL equipment
• Satellite and CATV equipment
• General telecom equipment

Electrical Characteristics of SMD3225 1KA 0.5pF 1210 SMD Gas Discharge Tube Surge Protector Arrestor

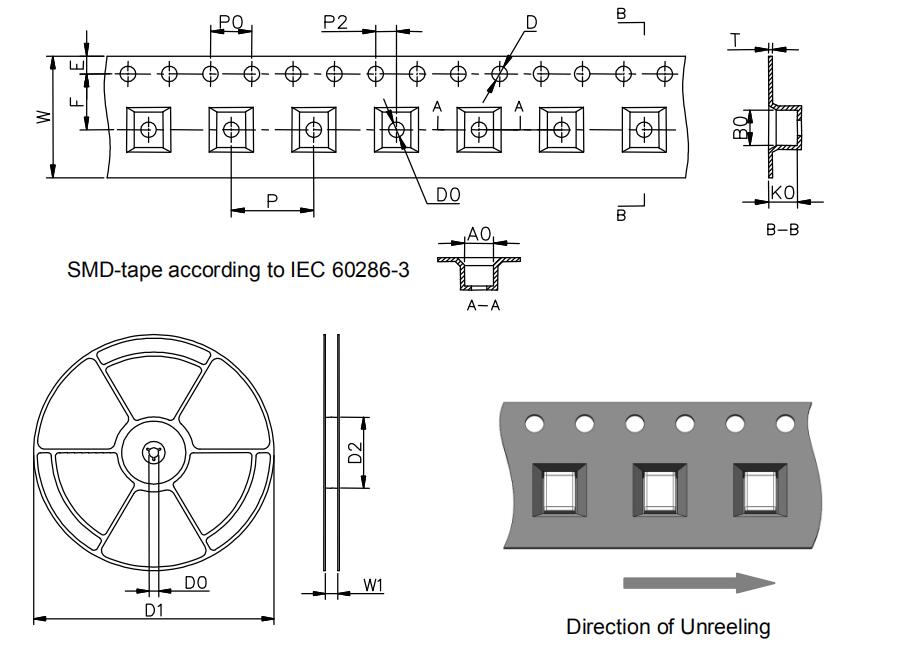

Taping and Reel Specifications of of SMD3225 1KA 0.5pF 1210 SMD Gas Discharge Tube Surge Protector Arrestor

Soldering Parameters - Reflow Soldering (Surface Mount Devices) of of SMD3225 1KA 0.5pF 1210 SMD Gas Discharge Tube Surge Protector Arrestor
