Description of SMD3216 Gas Discharge Tube

The SMD3216 series has been especially designed to meet data transmission protection requirements. The optimized design features a high level of protection against fast rising transients usually caused by lightning disturbances. For use in high frequency data lines, the series offers ultra low capacitances and shows only marginally signal losses up to high frequencies. The devices are extremely reliable and are able to withstand high surge currents without destruction.

Features of 3216 1206 Surface Mount SMD GDT

• Excellent response to fast rising transients
• Stable breakdown voltage
• GHz working frequency
• 8/20μs Impulse current capability: 500A
• Surface Mount package
• Non-Radioactive
• Ultra Low capacitance(<0.3pF) and insertion loss
• Lead-free compliant
• RoHS and REACH compliant
• Very Small Size(EIA 1206)
• Storage and operational temperature: -40~+90°C

Applications of 3216 1206 Gas Discharge Tube

• Ethernet, PoE, xDSL
• Cable modem, splitters, line cards
• Wireless antenna protection
• CATV equipment
• Switching power supply

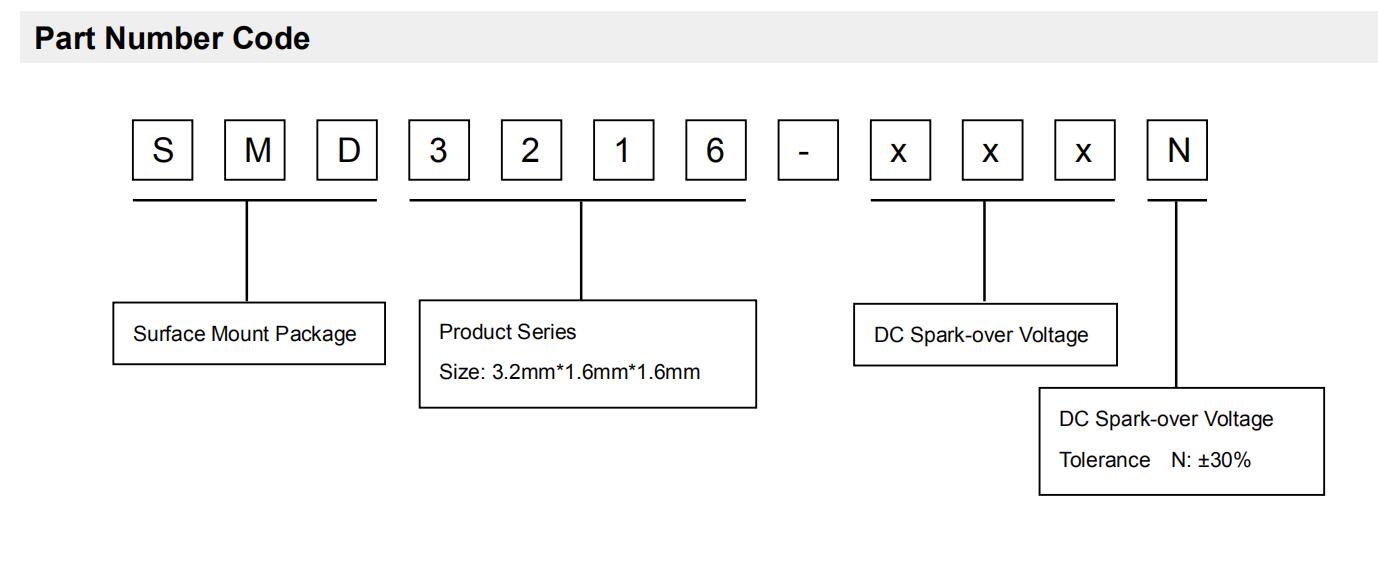

Part Number	DC Spark-over Voltage 1) 2) @100V/S	Impulse Spark-over Voltage		Insulation Resistance 3)	Capacitance @1 MHz	Service life
						Impulse Discharge Current @8/20μS		Impulse Withstanding Voltage Capacity @10/700μS, 40 ±5 times
		100V/μS	1KV/μS
		Max	Max	Min	Max	Nominal ±5 times	Max 1 time
	V	V	V	GΩ	pF	A	A	KV
SMD3216-090N	90±30%	600	700	1	0.3	500	600	6
SMD3216-150N	150±30%	600	700	1	0.3	500	600	6
SMD3216-200N	200±30%	650	750	1	0.3	500	600	6
SMD3216-230N	230±30%	650	750	1	0.3	500	600	6
SMD3216-300N	300±30%	700	800	1	0.3	500	600	6
SMD3216-350N	350±30%	750	850	1	0.3	500	600	6
SMD3216-400N	400±30%	850	950	1	0.3	500	600	6
SMD3216-420N	420±30%	850	950	1	0.3	500	600	6
SMD3216-470N	470±30%	1000	1100	1	0.3	500	600	6
SMD3216-500N	500±30%	1000	1200	1	0.3	500	600	6
SMD3216-600N	600±30%	1200	1400	1	0.3	500	600	6
Glow Voltage at 10mA.............................................................. ~60V
Arc Voltage at 0.2A ~10V
Glow to Arc transition Current…………………………………… ~0.1A
Weight ~0.03g
Operation and storage temperature…………………………….. -40~+90°C
Climatic category (IEC 60068-1) 40/90/21
Marking…………………………………………………………… Without
Surface treatment Matte-tin plated
1) At delivery AQL 0.65 level II, DIN ISO 2859 2) In ionized mode 3) Insulation Resistance Measuring Voltage: 90V~150V at DC 50V Other at DC 100V Terms in accordance with ITU-T Rec. K.12, IEC 61643-311, GB/T 9043.

Symbol

Millimeters

Inches

1.6±0.2

0.063±0.008

1.6±0.2

0.063±0.008

3.2±0.3

0.126±0.012

0.3±0.1

0.012±0.004

1.3

0.051

3.3

0.130

1.8

0.071

Taping and Reel Specifications

Symbol

Millimeters

Inches

12±0.3

0.472±0.012

1.8±0.1

0.071±0.004

3.4±0.1

0.134±0.004

1.8±0.1

0.071±0.004

4.0±0.1

0.157±0.004

5.5±0.1

0.217±0.004

1.75±0.1

0.069±0.004

1.5+0.1/-0.0

0.059+0.004/-0.0

4±0.1

0.157±0.004

2±0.1

0.079±0.004

0.35±0.05

0.014±0.002

13.3±0.15

0.524±0.006

178±2

7.007±0.079

60+1/-2

2.362+0.039/-0.079

12.5±0.4

0.492±0.016

Soldering Parameters - Reflow Soldering (Surface Mount Devices)

Reflow Condition

Pb - Free assembly

Pre Heat

-Temperature Min (Ts(min))

150°C

-Temperature Max (Ts(max))

200°C

- Time (min to max) (ts)

60 -180 Seconds

Average ramp up rate ( Liquids Temp TL) to peak

3°C/second max

TS(max) to TL - Ramp-up Rate

5°C/second max

Reflow

- Temperature (TL) (Liquids)

217°C

- Time (min to max) (ts)

60 -150 Seconds

Peak Temperature (TP)

260 +0/-5°C

Time within 5°C of actual peak Temperature (tp)

10 - 30 Seconds

Ramp-down Rate

6°C/second max

Time 25°C to peak Temperature (TP)

8 minutes Max

Do not exceed

260°C
