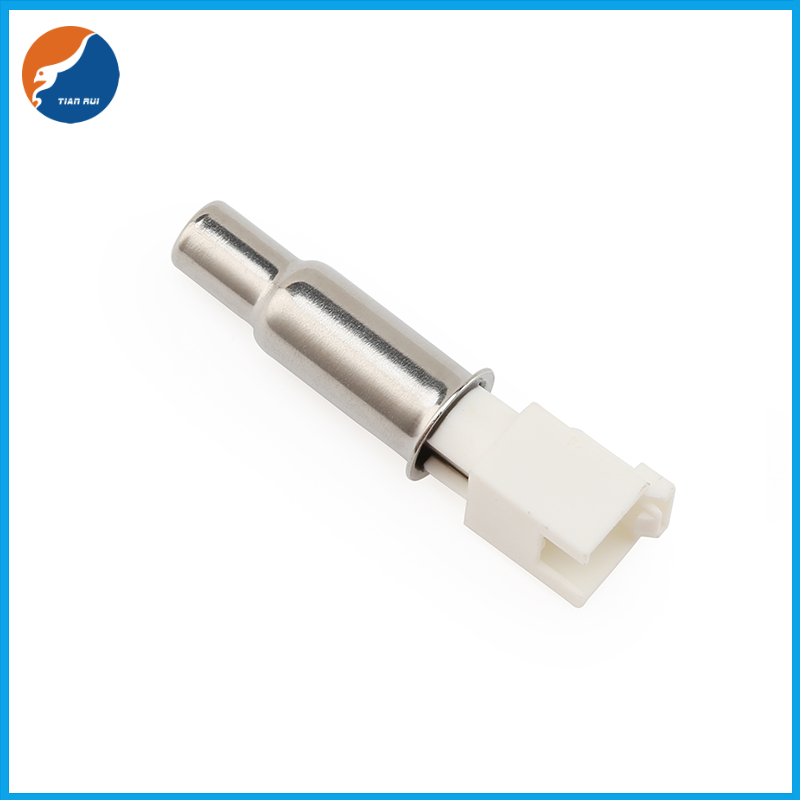

5K 10K Stainless Steel Clothes Dryer Washing Machine NTC Thermistor
Temperature Sensor
Description Of Washing Machine NTC Thermistor Temperature Sensor
The Temperature Sensor in your washing machine connects to the
heater element, which ensures your washer is at the correct
temperature whilst on a cycle. If your washing machine is not
performing to the best of its ability, it may have a faulty
temperature sensor. So get it replaced today with this spare and
have your washing machine working at full function again.
Features Of Washing Machine NTC Thermistor Temperature Sensor
◆ Stainless steel is humid and corrosion resistant, and is mainly
used in household cleaning appliances. In addition, voltage
withstand standard is increased, and voltage of the sensor ranges
from 1500V to 3750V.
◆ Voltage withstand standard is increased, and the highest votlage
is AC 3750V. The sensor is safer for long-term exposure to
liquid-contacting environment.
◆ Screw-on type, metal case type, and plastic case type sensors are
available, and the sensors are customizable.
◆ Various electrical characteristics are available for your choice.
◆ Most sensors are made of stainless steel, and the sensors are
able to be soaked in detergent for a long time because stainless
steel is humid and corrosion resistant.

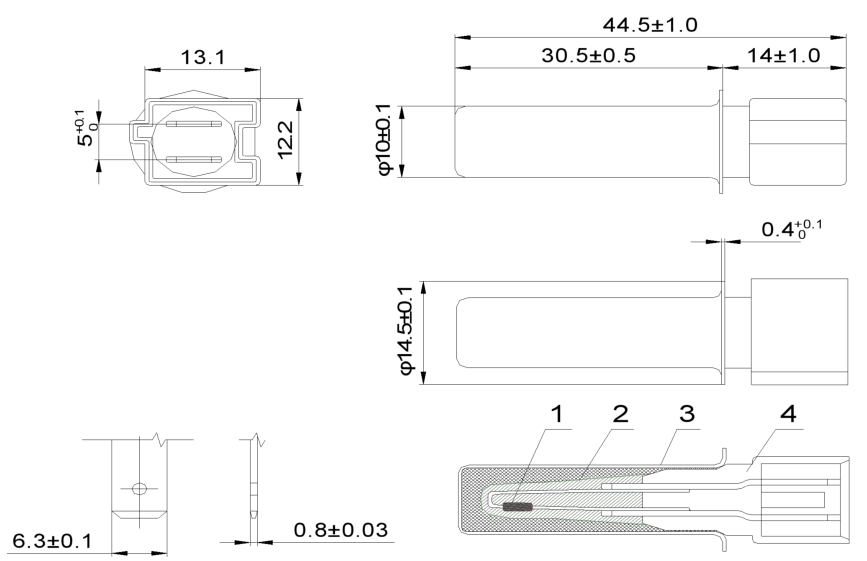

Exterior Dimension Of Washing Machine NTC Thermistor Temperature Sensor
Unit:mm
Exterior Specification Of Washing Machine NTC Thermistor Temperature Sensor
| Serial number | Material name | Specifications / Models | Texture of material |
| 2-1. | THERMISTOR | AFT482X3950FB (R60=1.204KΩ±2% B25/85=3966K±1.5%) | |
| 2-2. | CAP | 10.0X14.5X30.5 SUS (DES1410001 A-0) | SUS304 |
| 2-3. | EPOXY FILLING | G-308:GU-308:G-008X Black | |
| 2-4. | TERMINAL | 6.3 Type PBTB Connector Black | PBTB |
Application of Washing Machine NTC Thermistor Temperature Sensor
◆ Sensor is installed in wind channel of clothes dryer to detect
temperature of intake air and exhaust air.
◆ Sensor is recommneded for washing machine, and it is generally
installed next to heating pipe for water temperature detection.
◆ The sensor is mainly used in washing machine, clothes dryer,
all-in-one washer and dryer, etc.
Electrical Characteristics of Washing Machine NTC Thermistor Temperature Sensor
| Serial number | Item | Symbol | Test Conditions | Min. | Nor. | Max. | Unit |
| 3-1. | Resistance At 0℃ | R0 | Ta=0±0.05℃ PT≦0.1mw | 15.031 | 15.768 | 16.505 | kΩ |
| 3-2. | Resistance At 25℃ | R25 | Ta=25±0.05℃ PT≦0.1mw | 4.661 | 4.828 | 4.995 | kΩ |
| 3-3. | Resistance At 30℃ | R30 | Ta=30±0.05℃ PT≦0.1mw | 3.764 | 3.89 | 4.016 | kΩ |
| 3-4. | Resistance At 40℃ | R40 | Ta=40±0.05℃ PT≦0.1mw | 2.5 | 2.573 | 2.645 | kΩ |
| 3-5. | Resistance At 60℃ | R60 | Ta=60±0.05℃ PT≦0.1mw | 1.18 | 1.204 | 1.228 | kΩ |
| 3-6. | Resistance At 83℃ | R83 | Ta=83±0.05℃ PT≦0.1mw | 0.538 | 0.554 | 0.569 | kΩ |
| 3-7. | Resistance At 85℃ | R85 | Ta=85±0.05℃ PT≦0.1mw | / | 0.52 | | |
| 3-8. | B Value | B25/85 | | 3906.5 | 3966 | 4025.5 | k |
| 3-9. | Thermal Dissipation Constant | δ | T1=85±0.2℃,Ta=25±1℃ | / | 5.0 | / | mw/℃ |
| 3-10. | Response Time | τ | T1=47.1±0.2℃, T2=85±0.2℃ Ta=25±1℃ | / | 16 | / | sec |
| 3-11. | Insulation test | / | 500VDC 1Sec | 100 | / | / | MΩ |
| 3-12. | Hi-Pot Test | / | AC3750V 1Sec | / | / | 0.5 | Sec |
| 3-13. | Product Working Temp.Range | / | / | -20 | / | +130 | ℃ |
| 3-14. | Max Power rating at 25℃ | / | 200 | / | / | / | mW |
Storage Method of Washing Machine NTC Thermistor Temperature Sensor
Storage Conditions:
1. Ambicnt Temperature : -10℃～+40℃
2. Relative Humidity: ≦75%RH
3. Keep away from corrosive atmosphere and sunlight
4. Period of Storage: 1 year
Application Conditions of Washing Machine NTC Thermistor Temperature Sensor
1. Maximum service temperature and maximum power in application
should not exceeds specification listed in Product Specification
2. Much be handled with care when moving and installing the product
3. Product should not be used when deformed or rusty casing is
observed on product
4. Product should not be used when broken housing ,or excessive
deformation on housing is observed
5. Avoid excessive temperature fluctuation when operating the
product in its operational temperature range
6. Do not apply excessive shock and vibration on product
7. Do not pull or bend the lead wire excessively
8. Do not use in any ambient with corrosiven gas (CO2,NH3,Sox,Nox
Do not use in any ambient with electrolytic solution with
brine,acid,alkaline and organic
9. Do not use in environment with water.high moisture,and high
corrosive solution
10. Current throught NTC element will cause self-heating,and may
affect the measurement
11. This product belongs to surface appressed type sensor
temperature, when using, need to make bottom plane fully and
heating
