    3RB-5SS 5mmX5mmX7.5mm Gas Discharge Tube 90 Volt Gas Tube Arrester For Circuit Protection PCB Board

    Ask Lasest Price
    Brand Name : TIAN RUI
    Model Number : 3RB-5SS
    Certification : ROHS REACH
    Price : Negotiable
    Payment Terms : D/P,T/T,Paypal,Western Union
    Supply Ability : 1000000+PCS+Month
    Delivery Time : 5-7 days
    • Product Details
    • Company Profile

    3RB-5SS 5mmX5mmX7.5mm Gas Discharge Tube 90 Volt Gas Tube Arrester For Circuit Protection PCB Board

    3RB-5SS 5mmX5mmX7.5mm Gas Discharge Tube 90 Volt Gas Tube Arrester For Circuit Protection PCB Board


    Description of 3RB-5SS 5mmX5mmX7.5mm Gas Discharge Tube


    Gas discharge tubes (GDT) use noble gasses enclosed in ceramic tubes to provide an alternate circuit path for voltage spikes. The ceramic envelope and with nickel connectors allow for high loads. 3RB-5SS Gas Discharge Tubes (GDT) series has a surge rating of 10kA, 8/20μs.Offered in a Squared Surface Mount package, which helps to make pick and place on PCB process easier.


    This GDT series is perfectly suited for broadband equipment applications. The GDT’s low off-state capacitance is compatible with high bandwidth applications and this capacitance loading value does not vary if the voltage across the GDT changes.


    3RB-5SS Gas Discharge Tube (GDT) series are specifically designed for protection of electrical, multimedia, and communication equipment against over voltage transients in surface mount assembly applications.


    3RB-5SS 5mmX5mmX7.5mm Gas Discharge Tube 90 Volt Gas Tube Arrester For Circuit Protection PCB Board


    Features of 3RB-5SS 5mmX5mmX7.5mm Gas Discharge Tube


    • Excellent response to fast rising transients
    • Stable breakdown voltage
    • GHz working frequency
    • 8/20μs Impulse current capability: 10KA
    • Surface Mount package
    • Non-Radioactive
    • Ultra Low capacitance (<1pF)
    • High insulation resistance
    • Lead-free compliant
    • RoHS and REACH compliant
    • Size: 5mm*5mm*7.5mm
    • Storage and operational temperature: -40~+90°C


    Applications of 3RB-5SS 5mmX5mmX7.5mm Gas Discharge Tube


    • Communication equipment
    • CATV equipment
    • Data lines
    • Power supplies
    • Telecom SLIC protection
    • Broadband equipment
    • ADSL equipment, including ADSL2+
    • XDSL equipment
    • Satellite and CATV equipment
    • Test equipment
    • Consumer electronics



    Electrical Characteristics of 3RB-5SS 5mmX5mmX7.5mm Gas Discharge Tube

    Part NumberDC
    Spark-over Voltage 1) 2) 3) @100V/S
    Impulse Spark-over Voltage 3)Insulation Resistance
    4)
    Capacitance @1MHzLife Ratings
    Impulse Discharge Current
    @8/20μs 5)
    AC Discharge Current
    @50Hz 1S 5)
    Impulse Life @10/1000μS
    200A 5)
    100V/μS1KV/μS
    MaxMaxMinMaxNominal
    ±5 times
    Max 1 timeNominal 5 timesMin
    VVVpFKAKAATimes
    3R075B-5SS75±20%50060011101210300
    3R090B-5SS90±20%50060011101210300
    3R150B-5SS150±20%50060011101210300
    3R200B-5SS200±20%60070011101210300
    3R230B-5SS230±20%60070011101210300
    3R250B-5SS250±20%60070011101210300
    3R350B-5SS350±20%80090011101210300
    3R400B-5SS400±20%85095011101210300
    3R420B-5SS420±20%85095011101210300
    3R470B-5SS470±20%900100011101210300
    Glow Voltage at 10mA................................................................................ ~60V
    Arc Voltage at 1A ~10V
    Glow to Arc transition Current…………………………………………........... ~0.3A
    Weight ~0.88g
    Operation and storage temperature…………………………………............. -40~+90°C
    Climatic category (IEC 60068-1) 40/90/21
    Marking…………………………………………………………………............. Without
    Surface treatment Matte-tin plated
    1) At delivery AQL 0.65 level II, DIN ISO 2859
    2) In ionized mode
    3) Tip or ring electrode to center electrode
    4) Insulation Resistance Measuring Voltage:
    75V at DC 25V
    90V~150V at DC 50V
    Other at DC 100V
    5) Total current through center electrode, half value through tip respectively ring electrode.
    Terms in accordance with ITU-T Rec. K.12, IEC 61643-311, GB/T 9043.

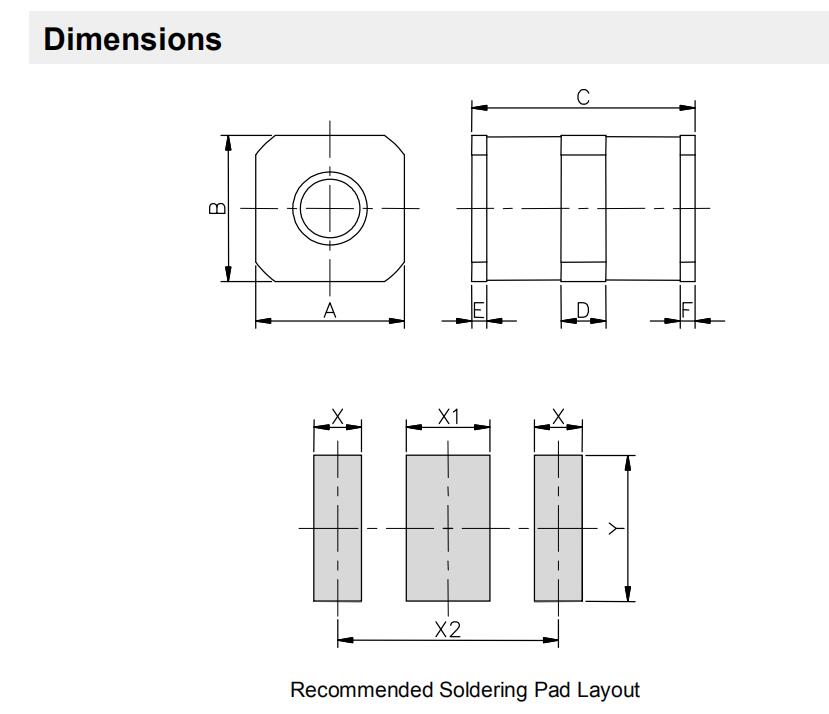

    SymbolMillimetersInches
    A5.0±0.20.197±0.008
    B5.0±0.20.197±0.008
    C7.5±0.30.295±0.012
    D1.5±0.10.059±0.004
    E0.5±0.10.020±0.004
    F0.5±0.10.020±0.004
    X1.60.063
    X12.80.110
    X27.40.291
    Y5.00.197

    SymbolMillimetersInches
    W16±0.30.630±0.012
    A05.4±0.10.213±0.004
    B08.4±0.10.331±0.004
    K05.3±0.10.209±0.004
    P12±0.10.472±0.004
    F7.5±0.10.295±0.004
    E1.75±0.10.069±0.004
    D1.5+0.1/-0.00.059+0.004/-0.0
    P04±0.10.157±0.004
    P22±0.10.079±0.004
    T0.4±0.10.016±0.004
    D013.3±0.150.524±0.006
    D1330±212.992±0.079
    D2100+1/-23.937+0.039/-0.079
    W116.5±0.40.65±0.016

    Soldering Parameters - Reflow Soldering (Surface Mount Devices)


    Reflow ConditionPb - Free assembly
    Pre Heat-Temperature Min (Ts(min))150°C
    -Temperature Max (Ts(max))200°C
    - Time (min to max) (ts)60 -180 Seconds
    Average ramp up rate ( Liquids Temp TL) to peak3°C/second max
    TS(max) to TL - Ramp-up Rate5°C/second max
    Reflow- Temperature (TL) (Liquids)217°C
    - Time (min to max) (ts)60 -150 Seconds
    Peak Temperature (TP)260 +0/-5°C
    Time within 5°C of actual peak Temperature (tp)10 - 30 Seconds
    Ramp-down Rate6°C/second max
    Time 25°C to peak Temperature (TP)8 minutes Max
    Do not exceed260°C
