    Automotive Air Conditioner Epoxy Resin Coating MF52 NTC Thermistor Temperature Sensor

    Ask Lasest Price
    Brand Name : Tianrui
    Model Number : CWF202F3914FD400BC
    Certification : ROHS
    Price : Negotiable
    Payment Terms : T/T, Paypal, Mastercard, Wetern Union, Alipay, etc
    Supply Ability : 1000000PCS per Month
    Delivery Time : 5-7 work days
    • Product Details
    • Company Profile

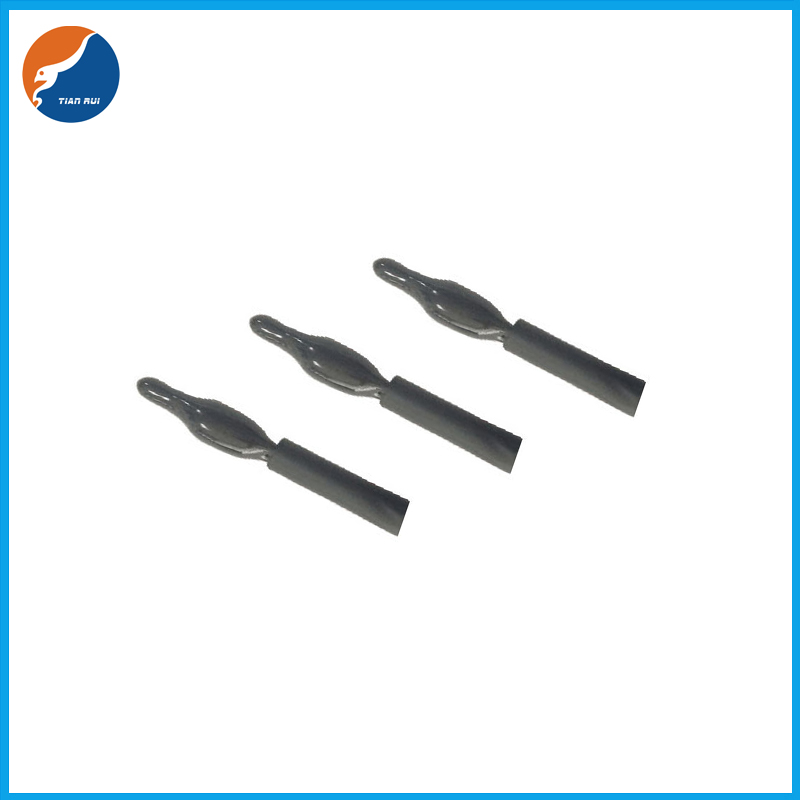

    Automotive Air Conditioner Epoxy Resin Coating MF52 NTC Thermistor Temperature Sensor

    Automotive Air Conditioner Epoxy Resin Coating MF52 NTC Thermistor Temperature Sensor


    Description of Automotive Air Conditioner Epoxy Resin Coating MF52 NTC Thermistor Temperature Sensor


    Automotive air temperature sensor use high relibility and steability NTC thermistor as sensing element .

    The small step tip enables fast response and our unique craft makes this sensor especially steable under frequest hot-cold circle


    Negative temperature coefficient thermistor is a thermistor whose resistance value decreases with increasing temperature. The resistance change can be caused by the external environment temperature or the self-heating of the components caused by the current in the loop. The predictability of this resistance change with temperature is the basis of the thermistor application.


    It is suitable for temperature measurement and control of household air conditioners, automobile air conditioners, refrigerators, freezers, water dispensers, water heaters, heaters, dishwashers, washing machines, disinfection cabinets, dryers, and thermostats.

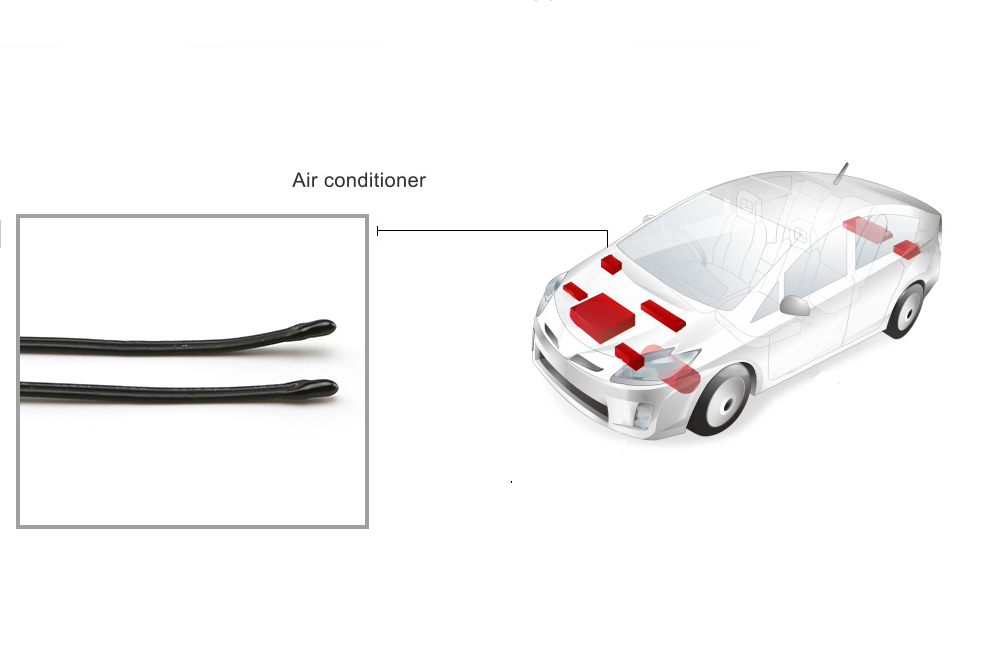

    Automotive Air Conditioner Epoxy Resin Coating MF52 NTC Thermistor Temperature Sensor


    Features of Automotive Air Conditioner Epoxy Resin Coating MF52 NTC Thermistor Temperature Sensor


    ⇒ Wide operating temperature range

    ⇒ High stability and reliability

    ⇒ Fast response

    ⇒ Air temperature measurement

    ⇒ Automotive Grade


    Application of Automotive Air Conditioner Epoxy Resin Coating MF52 NTC Thermistor Temperature Sensor


    ⇒ Auto Air-condintioner

    ⇒ Dryer

    ⇒ Air-conditioner

    ⇒ Industrial manufacture

    ⇒ Electronic appliance




    Overall Dimension of Automotive Air Conditioner Epoxy Resin Coating MF52 NTC Thermistor Temperature Sensor



    Materials of Automotive Air Conditioner Epoxy Resin Coating MF52 NTC Thermistor Temperature Sensor


    NOMaterial NameItem/PN
    2-1.Lead wireUL2651#Φ1.8 *2C 105℃ 300V Grey White
    2-2.ThermistorR0=6.65KΩ±1.5% R25=2KΩ±3.5% B0/25=3941K±1% MF52
    2-3.Epoxy ResinJ105/J106B/J05X G108/GU01 Black

    Performances of Automotive Air Conditioner Epoxy Resin Coating MF52 NTC Thermistor Temperature Sensor


    NOItemSignTest ConditionsMin.Normal valueMax.Unit
    4-1.Resistance at 25℃R25

    Ta=5±0.05℃

    PT≦0.1mw

    1.9322.07K
    4-2.B ValueB0/25387439143953k
    4-3.Dissipation factorσTa=25±0.5℃1.5/mw/℃
    4-4.Time constantτTa=25±0.5℃//3sec
    4-5.Insulation resistance/500VDC100//
    4-6High-voltage Insulation Test/1500VAC5Sec
    4-7Operating temp.range//-10/+100

    Other Specification of Automotive Air Conditioner Epoxy Resin Coating MF52 NTC Thermistor Temperature Sensor


    SpecificationR25℃ (KΩ)B25/50℃ (K)Disspation constantThermal time constantOperating temp. range
    CWF□-□280-301□0.32800

    ln still air 2.1~15mW/℃


    ln still air 25~65s


    -40~+150℃

    CWF□-□338/350-202□23380/3500
    CWF□-□327/338-502□53270/3380
    CWF□-□327/338-103□103270/3380
    CWF□-□347/395-103□10347/3950
    CWF□-□395-203□203950
    CWF□-□395/399-473□473950/3990
    CWF□-□395/399-503□503950/3990
    CWF□-□395/399-104□1003950/3990
    CWF□-□420/425-204□2004200/4250
    CWF□-□440-474□4704400
    CWF□-□445/453-145□14004450/4530

    The sizes above are for reference only. Different encapsulation and electrical parameter can be custom made as requirement.
