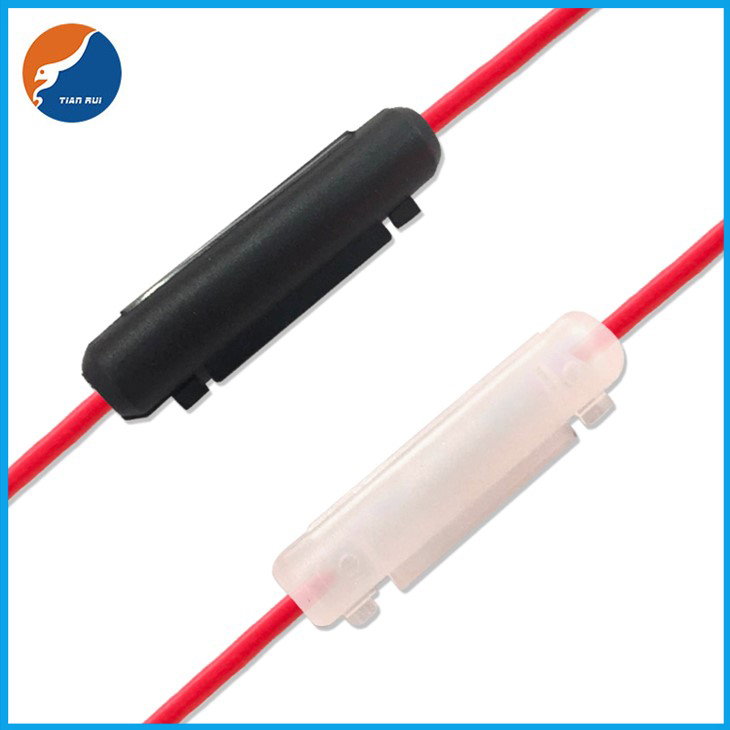

3AG 6.35X31.75mm 6X30mm Flip Type Black PA66 Current In-Line Glass Tube Fuse Holder

Specification of Current In-Line Glass Tube Fuse Holder

SL706C 3AG In-line Fuse Holder

For 6.35x30mm And 6.35x32mm Fuse

Electrical Rating: Max 15A

Contacts: Brass

Insulating Body: Nylon Black, White

Available Wire Gauge: 16AWG-22AWG

Temperature Range: -25 to 125℃

Flip Type

Description of 3AG 6.35X31.75mm 6X30mm In-line Fuse Holder

Fuse holders can be used in any applications where you need to ensure electrical protection, isolation and switching under load of inductive or resistive loads. The technology solutions applied to reduce power dissipation help to minimize module heating.
Fuse holders are suitable for protection against overloads and short circuits.

Features of Black PA66 In-Line Glass Tube Fuse Holder

Made of high-quality nylon material, with sufficient material, UV resistance and aging resistance
It has good characteristics of high temperature resistance and wear resistance, long life and easy to use
Has good insulation and flame retardant properties to escort safety
Easy to carry, suitable for a variety of scenarios

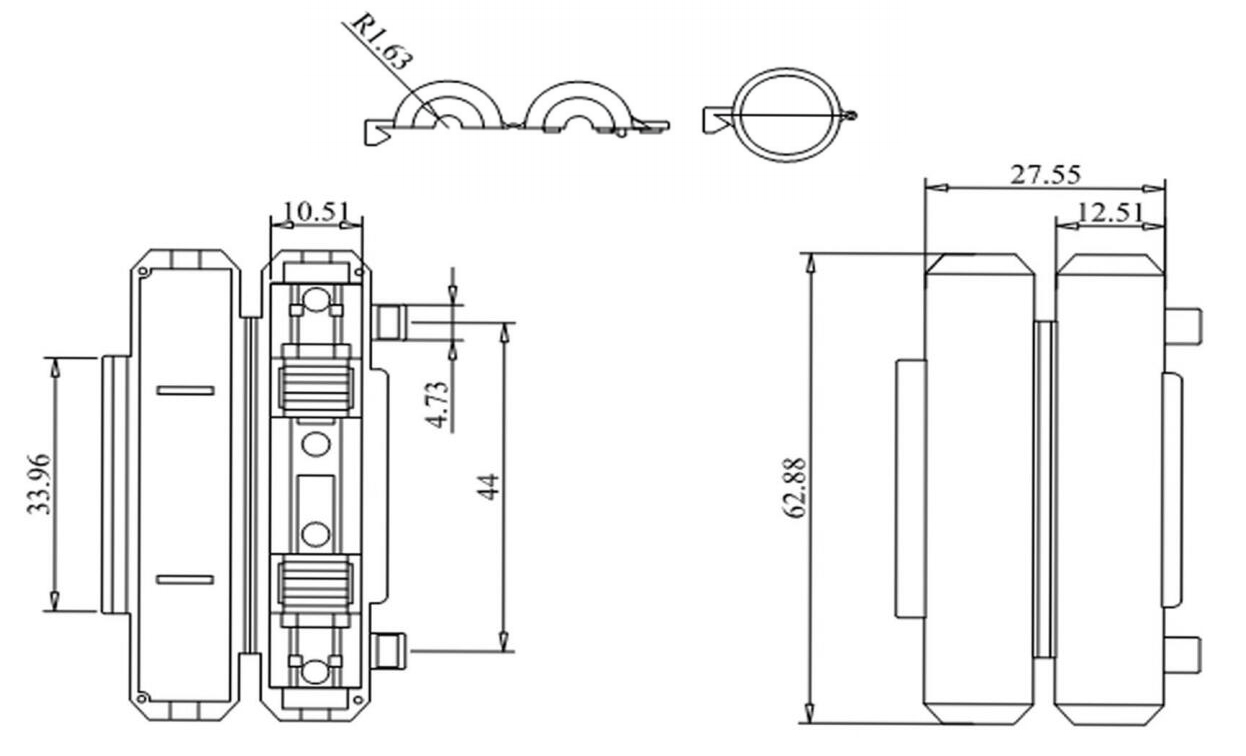

Dimension of In-line Glass Fuse Holder

Application of 3AG 6.35X31.75mm 6X30mm Current In-Line Glass Tube Fuse Holder

Products are widely used in household appliances, automobiles, new energy electric vehicles, motorcycles, aviation,communications,etc.
