6 Circuit Way Blade Fuse Box Holder for 12V 24V Automotive Truck Boat Marine Bus RV Van Car Auto Modified

The Details of 6 Circuit Way Blade Fuse Box Holder

[Product name]: 6 Way Automotive Car Auto Blade Fuse Box
[Product net weight]: 174G
[Product gross weight]: 177G
[Product size]: 12*5*5.2cm
[Single product packaging size]: 18.5*13*5.5cm
[Packing method]: standard PE bag packaging (box customized)
[Input rated voltage]: 32V
[Input rated current]: 75A
[Maximum output current]: 20A per circuit
[Product accessories]: PA66 body, PC dust cover, nickel-plated copper terminal, stainless steel screws, PP×70 stickers
[Main line terminal]: M6 threaded stud (75A 32V DC max)
[Main wire]: #4-6AWG
[Single-wire terminal]: M4 threaded stud (20A 32V DC max)
[Single wire]: #12-16AWG
Accept ATO or ATC fuses from 1A to 20A

Fuse Function of 6 Circuit Way Blade Fuse Box Holder

When the circuit fault or abnormal, with the current constantly increased, and the increased current may damage some important or valuable components in the circuit, but also may burn down the circuit and even cause a fire.Fuses protect electronic equipment from current damage and avoid serious damage caused by internal malfunction of electronic equipment.Therefore, each fuse has a rated specification, when the current exceeds the rated specification, the fuse will blow.If the fuse is properly installed in the circuit, it will fuse itself to cut off the current when the current rises to a certain height and a certain temperature, thus playing a role in protecting the safe operation of the circuit.

Advantages of 6 Circuit Way Blade Fuse Box Holder

[1] The product adopts PA66 anti-flame retardant and high and low temperature resistant environmental protection material, with good mechanical strength, insulation, heat resistance and flame retardancy.
[2] All fasteners are stainless steel, and the input and output ends of the fuse box are fixed with tightening screws, which can be installed more quickly. Moreover, the fuse box is fixed with self-tapping screws, which is simpler and safer to install.
[3] Free stickers of products can be attached to the electrical appliances we connect according to the label name on the stickers. When the fuse is broken, we can immediately identify which electrical appliance has a problem, which saves time and effort.

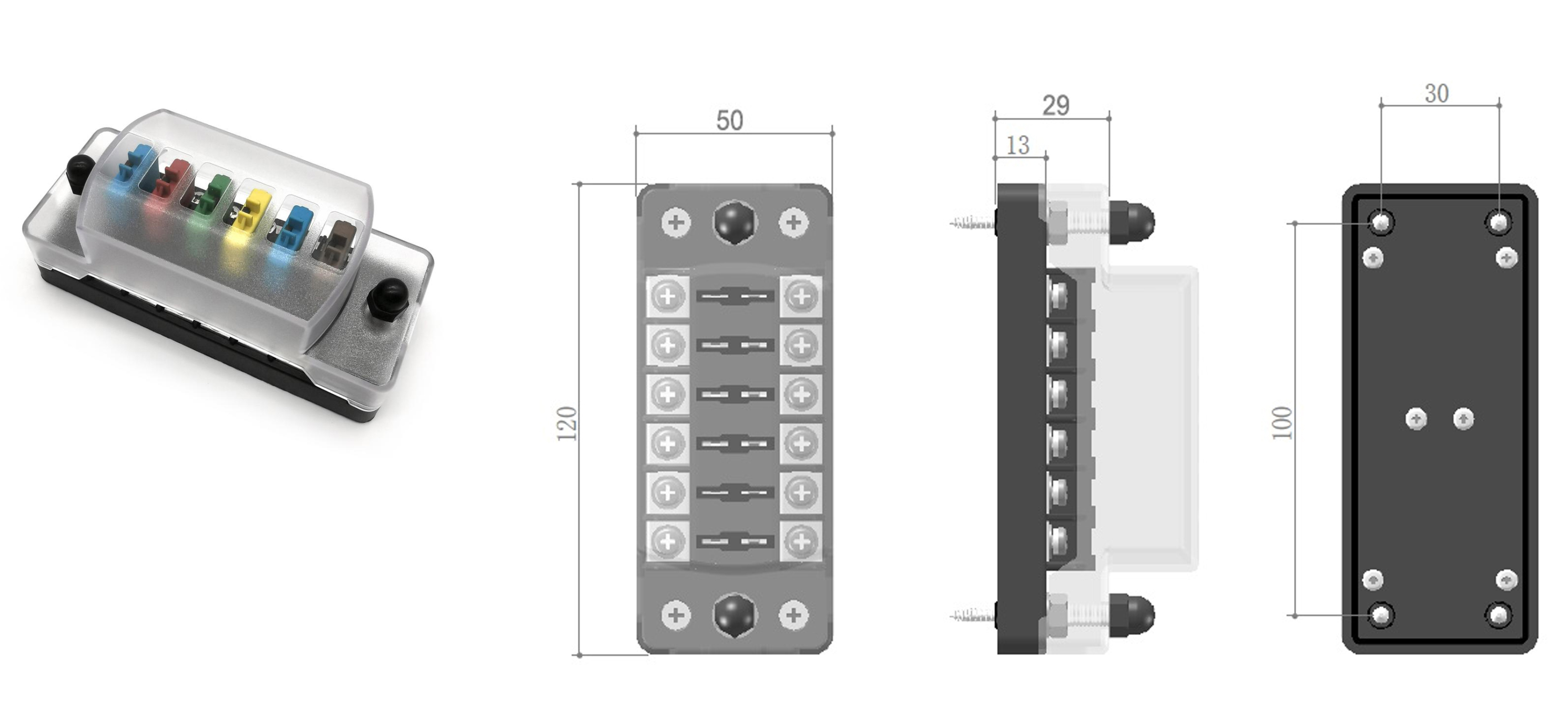

Drawing of 6 Way Independent Positive And Negative Long Automotive Car Auto Blade Fuse Box

Installation Range of 6 Circuit Way Blade Fuse Box Holder

It can be installed on cars, off-road vehicles, RVs, buses, yachts, boats, etc.
