Single Stud 5/16" M8 Automotive Car Auto MRBF Battery Terminal Fuse
Holder
Description of Single Stud 5/16" M8 Automotive Car Auto MRBF Battery Terminal Fuse
Holder
Appropriate for DC Main, inverters, windlass, and bow thruster,
this marine-rated battery fuse block can bring full range circuit
protection for automotive and marine applications and let you free
from worrying about circuit burnout or even fire. Providing high
current protection in tight space constraints, alleviating having
to make up a short wire to connect to a standard fuse block to the
battery, and maintaining the integrity of the cable. IP66, designed
for the harshest environment to protect against powerful water
jets. Ignition protected, safe for installation aboard
gasoline-powered boats.
Specification of Single Stud 5/16" M8 Automotive Car Auto MRBF Battery Terminal Fuse
Holder
Stud Size: 5/16" (M8), accepts 5/16" ring terminals
Terminal Mounting Hole: 3/8" (M10)
Maximum Voltage Rating: 58Vdc

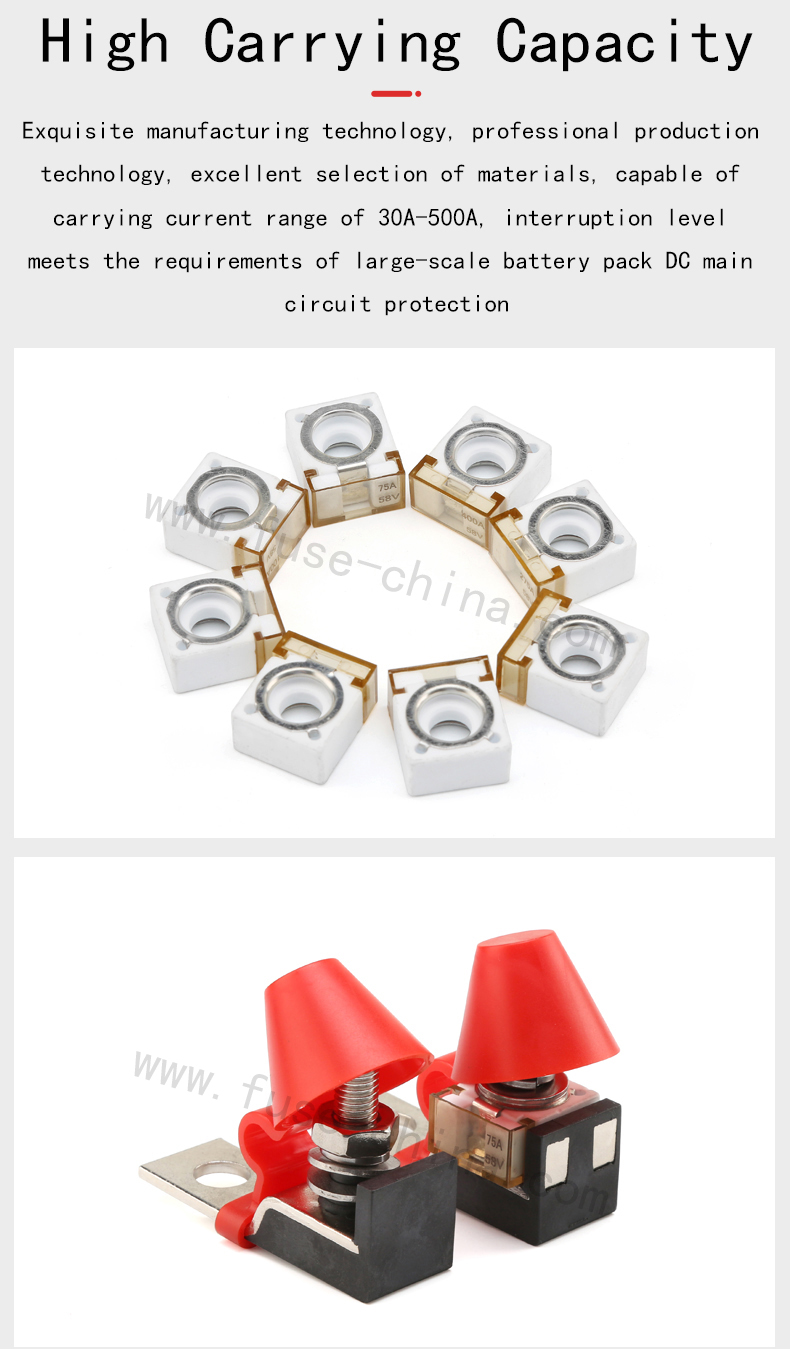

Amperage Rating: 30A-500A
Interrupt Rating: 2,000A @ 58Vdc
Maximum Torque Rating: 12 Nm (106 in-lbs)
NOTE: DO NOT mount fuse directly onto battery post. Fuses should be
mounted on the MRBF terminal fuse block.
Features of Single Stud 5/16" M8 Automotive Car Auto MRBF Battery Terminal Fuse
Holder
• CIRCUIT PROTECTION: This high-amp fuse block kit is suitable for
main and auxiliary circuit protection such as alternator outputs,
starter motor inputs and accessory circuits. Appropriate for DC
Main, inverters, windlass, and bow thruster, it can bring full
range circuit protection for automotive and marine applications,
free from worrying about circuit burnout or even fire.
• TERMINAL FUSES BLOCK KIT: Max voltage rating of fuse: 58V;
Amperage Rating of fuse holder: 200A; Fuses Holder Stud Size: M8
(5/16"); Fuse Holder Mounting Hole: M10 (3/8"). Fuses are
REPLACEABLE and allow tacking of terminals-- Easy to use,
multifaceted to meet your needs.
• COMPACT & SIMPLE: The specially compact designed makes this fuse
block kit perfect for any tight space, and easy to install to
provide high current protection for the tightest space constraints.
Installed directly on the battery, alleviating having to make up a
short wire to connect to a standard fuse block to the battery, and
maintaining the integrity of the cable.
• WEATHERPROOF: IP66, designed for the harshest environment to
protect against powerful water jets, suitable for small open
cockpit boats and other harsh environments. The insulating cap can
also prevent accidental short circuits, ensuring safety.
• IGNITION PROTECTED: 10,000 AIC at 14V DC satisfies ABYC
requirements for DC Main circuit protection on large battery banks.
Ignition protected, safe for installation aboard gasoline powered
boats.
Application of Single Stud 5/16" M8 Automotive Car Auto MRBF Battery Terminal Fuse
Holder
Full range circuit protection for automotive and marine
applications. The breaking capacity meets the requirements of
conventional vehicle batteries and 12V, 24V and 42V electrical
networks. Compact, high-amp fuse appropriate for DC Main,
inverters, windlass, and bow thruster circuit protection. Provides
high current protection in tight space constraints. Ignition
protected when used with MRBF Terminal Fuse Blocks. Isolated stud
design uses standard M8 hardware and permits stacking of terminals.
