    10 Ways Circuit Automotive Car Auto Blade Fuse Box With Cover

    Ask Lasest Price
    Brand Name : TIAN RUI
    Model Number : TR1-10A
    Certification : ROHS
    Price : Negotiable
    Payment Terms : D/P, T/T,Paypal, Western Union
    Supply Ability : 1000000PCS/Month
    Delivery Time : 5-7 Days
    • Product Details
    • Company Profile

    10 Ways Circuit Automotive Car Auto Blade Fuse Box With Cover

    10 Ways Circuit Automotive Car Auto Blade Fuse Box with Cover


    Specifications of 10 Ways Circuit Automotive Car Auto Blade Fuse Box with Cover


    Product name: 10 Ways Blade Fuse Holder without LED indicator

    Material: PC cover, transparent; PBT body, black; Terminal: copper tin plated.

    Weight: 10 ways-125g

    Voltage: 32VDC (common use within 32V)

    Current: The maximum can withstand 100A, it is recommended that each circuit does not exceed 30A.

    Applicable fuse: standard blade fuse (1A-30A).

    Applicable terminals: Y-type terminal on the input end, which can be used with #4-6AWG wire; 250 in-line terminals for the output end, which can be used on #12-16AWG wire.


    Max Voltage32 VDC
    Max Current Rating30A per Circuit - 100A Max Input
    Fuse TypeRegular Auto Blade Fuse.
    BasePBT (UL flame: 94V-0), Black
    CoverPC (UL flame: 94V-2), Transparent
    Push ButtonPOM (White)
    Terminals

    Copper, Tin plated 0.250”Quick Connect Terminals

    Temperature Rating-20° C~ +85° C
    Mounting4 mounting holes for # 10-32 screws (not supplied)
    Mechanical DimensionsInches [mm]


    Drawing of 10 Ways Circuit Automotive Car Auto Blade Fuse Box with Cover

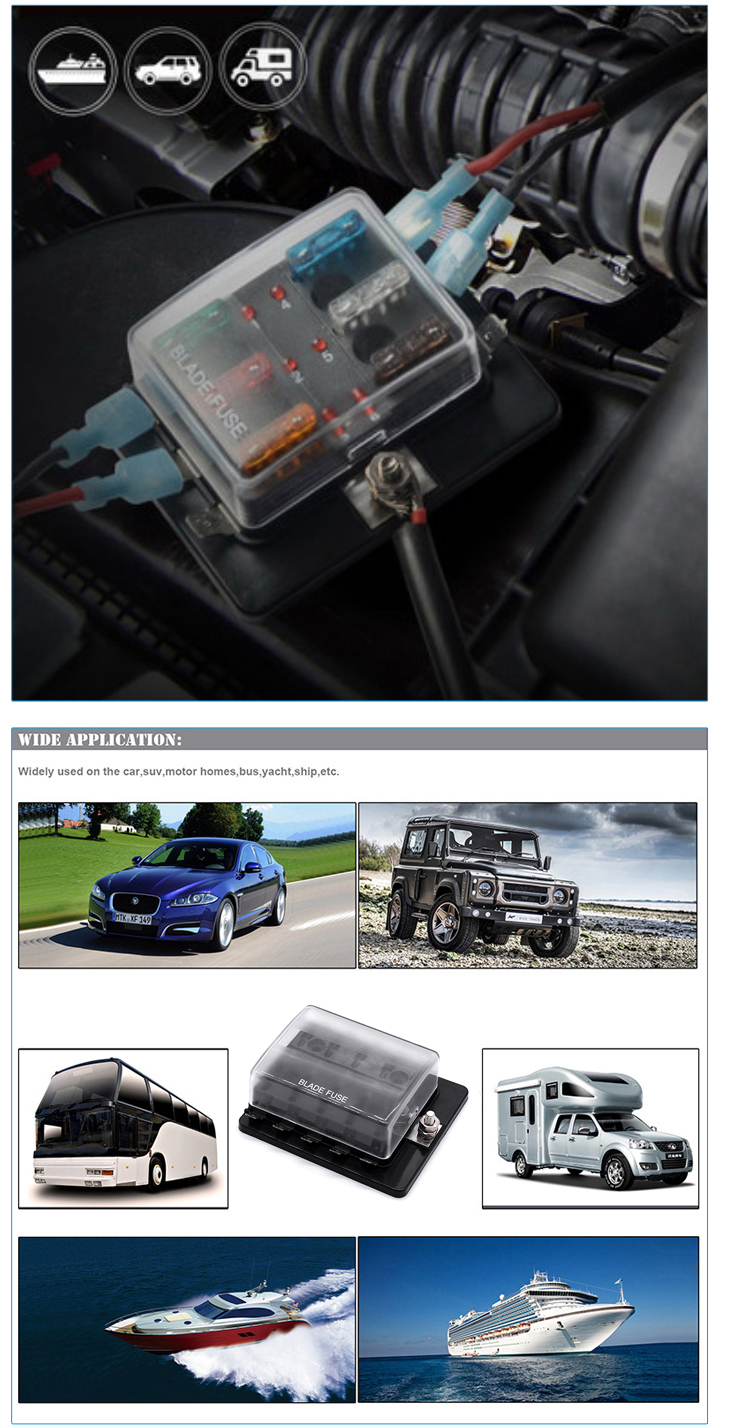

    Application of 10 Ways Circuit Automotive Car Auto Blade Fuse Box with Cover


    Suitable for electric vehicles, auto audio, auto assembly insurance, sightseeing/fire fighting/new energy vehicles, forklifts, air conditioners, buses and high-power meters, instruments, generators, etc.
