570 Series Black Thermoplastic Panel Mount Micro Subminiature Fuse Holder for TR5 TE5 Fuses

Specification of

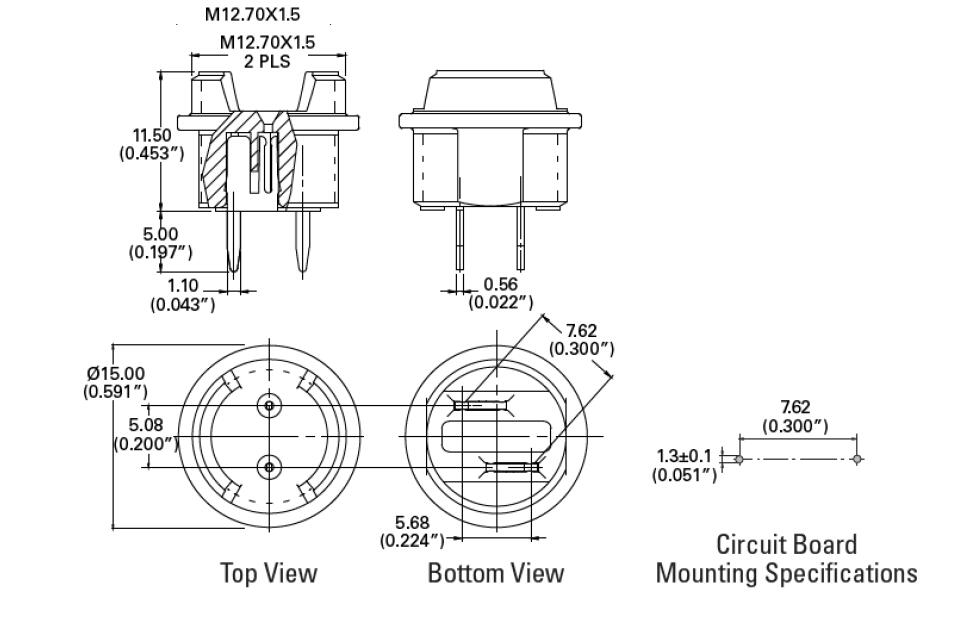

Mounting

12.7mm diameter D-hole or double D-hole

Admissible torque on plastic hex nut is 1.2Nm

Terminals

Solderable or 2.8mm quick connect-fits 0.5mm tab

Materials

Holder: Black Thermoplastic, UL 94V0, Polyamide PA 6.6

Metal parts: Copper alloy, Solderable, tinned

Electrical Data (23℃/without Cap)

Rated Voltage: 250V

Max. Current/Power; 6.3A/2.5W

Minimum Cross Section: Conductor-2.5mm²

Unit Weight: 2.2g

Packaging:Bulk (100 pcs.)
