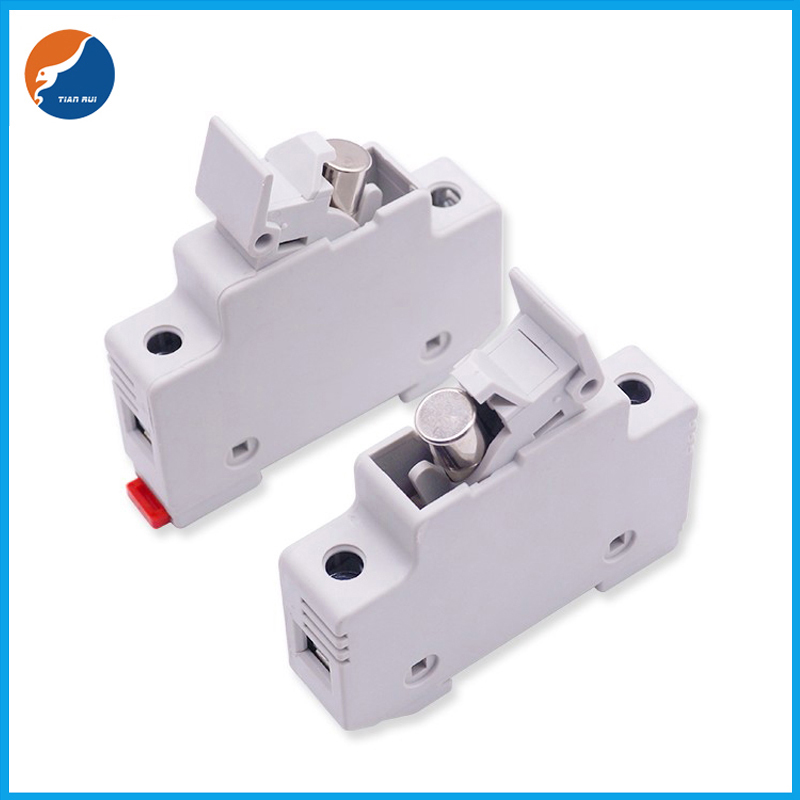

1P 2P 3P Din Rail Fuse Base 10x38mm Fuses Link AC Cylindrical
RT18-32 Fuse Holder
Construction Feature of 1P 2P 3P Din Rail Fuse Base 10x38mm Fuses Link AC Cylindrical
RT18-32 Fuse Holder
This series of fuse consists of fuse link and fuse base. The
variable cross-section fuse body made by pure copper piece (or
copper wire, silver wire, silver piece) is sealed in the fusion
tube which is made by the high strength porcelain or epoxy glass
cloth pipe, there is full of the high-purity quartz sand processed
after chemistry to take the extinguishing of arc medium in the
tube. The two sides of the fuse use the spot welding to reliably
connect with the end plate and to form the cylindrical cap shape
structure. Fuse base suppressed by the resin or plastic casing
fitted with contacts and contains the fusion pieces, the connection
made by riveting as the support of the appropriate size fuse body
parts. This series of fuse has many merits such as small in size,
convenient for installation, safe in usage, beautiful in appearance
and so on.

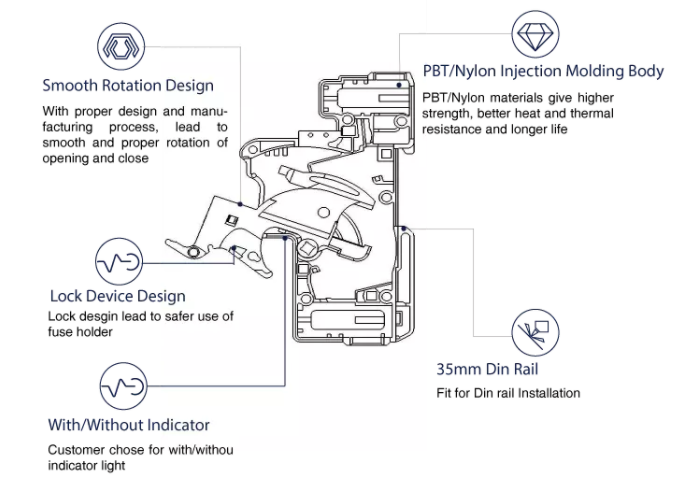

Advantages of 1P 2P 3P Din Rail Fuse Base 10x38mm Fuses Link AC Cylindrical
RT18-32 Fuse Holder
• The shell is made of high quality plastic, with clear advantages
in thickness, transparency and smoothness
• Make sure that the fuse is disconnected from the display to avoid
erroneous actions
• New upgrade, steady state buckle portable disassembly
• Open mold, careful treatment, galvanized screw, pure copper
conductive terminal, reliable pressing, easy installation
Application of 1P 2P 3P Din Rail Fuse Base 10x38mm Fuses Link AC
Cylindrical RT18-32 Fuse Holder
This series fuse is suitable for AC 50Hz, rated voltage to 1000V,
rated current to 32A. It is mainly used for protecting the
electrical circuit against overload and short-circuits(gG/gL).
Because of different melting tablets, it also may derive for
rotecting the semiconductor device and others complete set
installment from short-circuit (aR/gR/gs/gtr) as well as the
electric motor from short-circuit (aM). The rated breaking capacity
is to 100KA. They conform to national standard GB13539 and
international electrical committee standard IEC60269.
Drawing of 1P 2P 3P Din Rail Fuse Base 10x38mm Fuses Link AC Cylindrical
RT18-32 Fuse Holder
| Model | Max Current | Rated Voltage | Pole | Fuse Size |
| RT18-32 1P | 32A | 1000V | 1 | 10 x38 |
| RT18-32 2P | 32A | 1000V | 2 | 10 x38 |
| RT18-32 3P | 32A | 1000V | 3 | 10 x38 |
FAQ
Q: How to order our product ?
A:1). Please tell us the model and quantity and other request you
need.
2). We make the PI for you.
3). After you confirm the PI, we arrange the order for you after
receiving your payment.
4). After the goods finished, we send the goods out to you and tell
you the tracking number.
5). We will track your goods until you receive the goods.
Q: What's your warranty ?
A: 1 years
Q: Where is your company?
A: Our address: Chashan town, Dongguan city, China.
Q: What's your shipment method?
A: We ship by Express, by air, by sea, by train. Normally we
checked and compare, then provide
customer the most proper shipment method.
Q: What's about MOQ?
A: First order MOQ=1pcs
Q: If i want to release order, what's the payment method you accept
?
A: We accept T/T, Paypal, Western union,etc.
Q: If i want to release order, what's the process?
A: Thanks. You can send inquiry to us, or send us by email, we will
reply within 24hrs.
