556 Series Thru-Hole Circuit Board Mount Vertical Blocks Radial Leaded Micro Fuse Holder

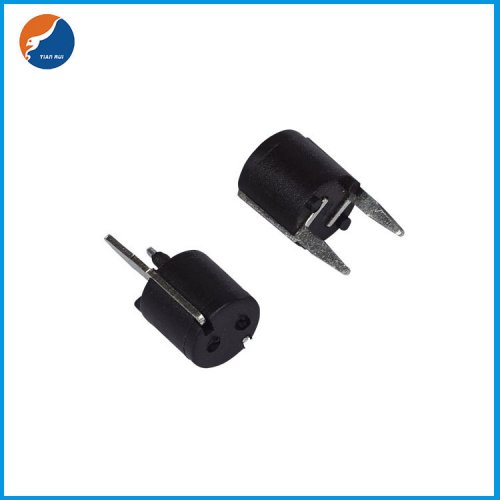

Product Name: 556 Series Radial Leaded Micro Fuse Holder

Description: Thru-hole circuit board mount blocks designed for

MICRO/ TR3 type and other fuse series with .025” diameter leads rated to 5 amps.

Electrical : Rated at 5A / 1.6W to 125 volts.

Compatible Fuse: 556 Series Vertical, Micro/TR3 Fuses

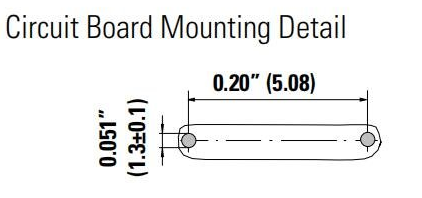

Mounting Method : PC Board Thru-Hole @ 5.08 hole spacing

Mount Color & Direction: Black Vertical

Molded Part Specs: Black Thermoplastic UL 94V0

Metal Parts and Terminals: Copper Alloy with Tin Plating

Ambient Temperature: –40ºC to +100ºC.

Unit Weight : 0.42g

Application

Suitable for power supply and circuit overload protection.

Widely used in battery charging, consumer electronics, power supply, industrial controller and other fields.
