Unipolar Bipolar Automotic Reset Temperature Limiter Ceramic
Bimetal Thermostat For Dishwasher Deep Fryer
Description of Automotic Reset Temperature Limiter Ceramic Bimetal Thermostat
Cx series is a square series thermostat mainly developed for the
European market.
There are two structures of monomer and double body, and the
product has obtained EU patent.
Operating Temperature | 0 - 230℃ |
Reset Tolerance | ≥5K |
Electrical Characteristics | UL :125V～10A/13.5A,0 - 230℃:100,000 cycles; |
| ENEC:250V～10A/13.5A,0 - 230℃:100,000 cycles； |
Contact Resistance | ≤ 50mΩ |
Housing Material | 95% AI2O3 CERAMIC |
Features of Automotic Reset Temperature Limiter Ceramic Bimetal Thermostat
Good electrical conductivity
This product adopts standard metal and adopts special continuous
stamping process; the riveting part of the plug adopts
high-conductivity technology, the power supply copper wire has a
good bite effect, and the temperature rise test performance meets
the conventional certification requirements.
Metal material
Using copper material, the lead content is below 100PPM, durable
Anti-rust and corrosion-resistant electroplating
It adopts automatic roller plating, and the surface gloss is good.
The plating layer is difficult to fall off, and it has passed the
salt spray test.

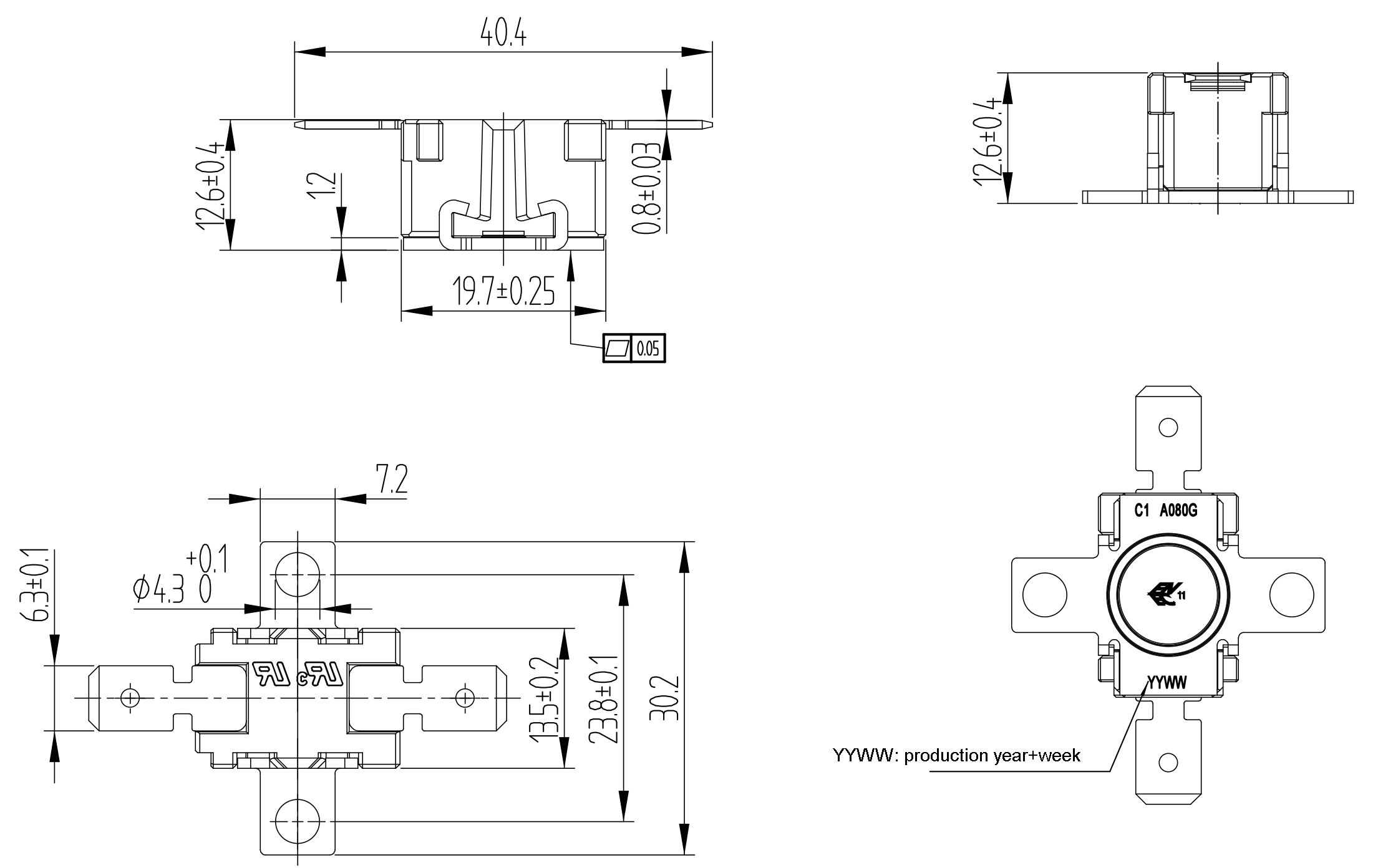

Drawing of Automotic Reset Temperature Limiter Ceramic Bimetal Thermostat
Working Principle of Automotic Reset Temperature Limiter Ceramic Bimetal Thermostat
The current passes through the moving contact terminal, and then
the static contact terminal is connected to the electrical
appliance (such as battery, etc.) to form a loop; when the
electrical appliance does not work properly and the ambient
temperature is too high, the heat is transmitted to the bimetal
through the temperature-sensing steel cover to achieve correction.
When the temperature is tripped, the bimetal flips over to quickly
disconnect the electrical contact and cut off the circuit. When the
temperature drops to the reset temperature, the bimetal resets and
quickly closes the electrical contact to connect the circuit,
continuing the cycle.
Application of Automotic Reset Temperature Limiter Ceramic Bimetal Thermostat
Mainly used in microwave ovens, water dispensers, electric water
bottles, coffee pots, air conditioners, ovens, instant kettles,
rice cookers, dishwashers, disinfection cabinets, refrigerators,
washing machines, dishwashers and other household appliances for
precise temperature control and overheating protection.
