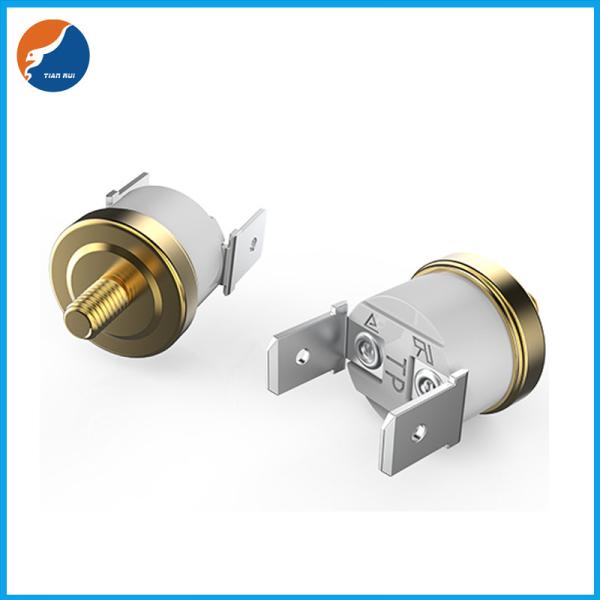

Durable Copper Head Ceramic KSD301 Bimetal Thermostat 16A 250V
Temperature Controller Limiter
Specification of Copper Head KSD301 Bimetal Thermostat 16A 250V
| Action temperature: | 0-270℃; (Tol.: ±3K, ±5K, ±10K); |
| Reset temperature tolerance: | ≥5K; common temperature difference range 8-30K; |
| Electrical Specifications: | CQC:250V～10A/16A, 0 - 230℃:100,000 cycles; |
| UL :125V～10A/16A, 0 - 230℃:100,000 cycles; |
| TUV:250V～10A/16A, 0 - 230℃:100,000 cycles； |
|
| CQC/TUV:250V～10A/16A, 230 - 270℃:30,000 cycles |
| VDE:250V～10A, 0 - 180℃: 100,000 cycles; |
| VDE:250V～16A, 0 - 210℃: 30,000 cycles; |
| DC small current application: 200mA - 1A, the contact is specially
customized; |
| Contact resistance: | ≤ 50mΩ; |
| Shell material: | Shell material: 95% AI2O3 CERAMIC; |
Terminal Types of Copper Head KSD301 Bimetal Thermostat 16A 250V
a. Terminal type: 187series of 4.8*0.5mm and 4.8*0.8mm, 250 series
of 6.3*0.8mm
b. Terminal Angle: bending angle: 0~90°C optional
Function of Copper Head KSD301 Bimetal Thermostat 16A 250V
When the temperature rises, the contact is opened, the temperature
drops, and the contact is closed, it is normally closed; when the
temperature rises, the contact is closed, and the temperature
drops, and the contact is open, it is normally open.
Main Application of Copper Head KSD301 Bimetal Thermostat 16A 250V
It is generally used for temperature control and protection
applications of various small household appliances with an
operating temperature of 100 °C and a medium temperature of 270 °C.
Working Principle of Copper Head KSD301 Bimetal Thermostat 16A 250V
The current passes through the moving contact terminal, and then
the static contact terminal is connected to the electrical
appliance (such as battery, etc.) to form a loop; when the
electrical appliance does not work properly and the ambient
temperature is too high, the heat is transmitted to the bimetal
through the temperature-sensing steel cover to achieve correction.
When the temperature is tripped, the bimetal flips over to quickly
disconnect the electrical contact and cut off the circuit. When the
temperature drops to the reset temperature, the bimetal resets and
quickly closes the electrical contact to connect the circuit,
continuing the cycle.
Usage of Copper Head KSD301 Bimetal Thermostat 16A 250V
It is used as temperature control for household electric appliances
and widely applied in coffee pots, automatic toasters,
laminators, electric water pots, steam guns, steam irons, wind
warmers, microwave ovens, water dispensers, etc.
