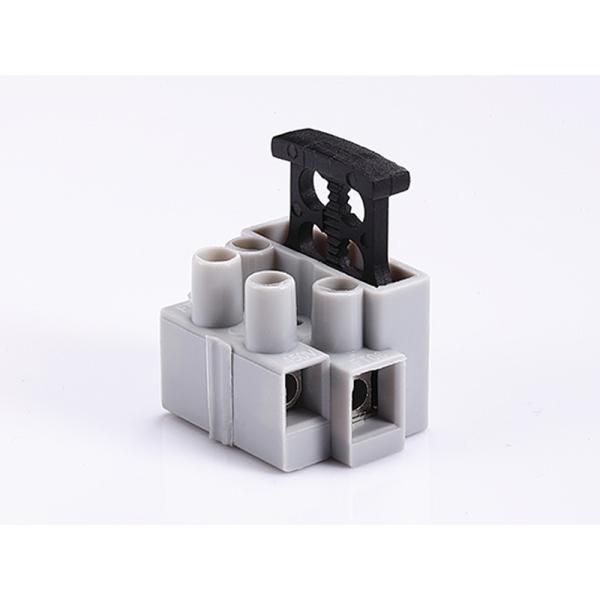

2 PIN Pole PCB Screw Fuse Terminal Connector Block With Glass Ceramic Tube Fuse

Ask Lasest Price
Brand Name :	Tianrui
Model Number :	FT06-2 FT06-2W
Certification :	VDE CQC
Price :	Negotiable
Payment Terms :	T/T, Paypal, Mastercard, Wetern Union, Alipay, etc
Supply Ability :	1000000PCS per Month
Delivery Time :	5-7 work days

Add to Cart

Product Details
Company Profile

2 PIN Pole PCB Screw Fuse Terminal Connector Block With Glass Ceramic Tube Fuse

2 PIN Pole PCB Screw Fuse Terminal Connector Block with Glass Ceramic Tube Fuse

1. Housing : Polyamide 6/6 94V-2 grade

2. Metal Part : nickel plated, metal-alloy insert

3. Terminal Screw : M3 X 6 zinc plated

4. Earthing Screw : M3 X 14 zinc plated

5. Voltage/Ampere :

- Fuse Holder : 250V/6.3A

- Terminal : 450V/32A

6. Temperature : -40℃ to 110℃

Features of 2 PIN Pole PCB Screw Fuse Terminal Connector Block with Glass Ceramic Tube Fuse

Small pitch to save space

Low structural height

Large wiring capacity

The plug socket is protected against wrong insertion and dislocation

FT06-2 2 PIN Pole PCB Screw Fuse Terminal Connector Block with Glass Ceramic Tube Fuse

Model number	FT06-2
Electrical parameters
IEC/EN
		Fuse Holder	Terminal
Rated voltage(V)	250		450
Rated current(A)	6.3		32
Operating temp	Polyamide 66(V-2)	T55
Connection parameters
		IEC/EN standard
Connection capacity	Solid core wire	2.5-4.0mm²	0.5-4.0mm²
	Stranded wire	2.5-4.0mm²	0.75-4.0mm²
	Flexible wire	2.5-4.0mm²	0.75-4.0mm²
Stripping length (mm)		7-8
Wiring		Screw locking
Screw size		M3
Repeatable wiring		√
Monopolar/Multipolar		Multipolar
Pole		2
Product fixing method		Screw
Materials
Insulation materials	Material	Polyamide 66
	Fire rating	UL 94V-2
Clamps		Copper
Matching product
Tube fuse		5x20mm
Packing quantity
700

FT06-2W 2 PIN Pole PCB Screw Fuse Terminal Connector Block with Glass Ceramic Tube Fuse

Model number	FT06-2W
Electrical parameters
IEC/EN
		Fuse Holder	Terminal
Rated voltage(V)	250		450
Rated current(A)	6.3		32
Operating temp	Polyamide 66(V-2)	T55
Connection parameters
		IEC/EN standard
Connection capacity	Solid core wire	2.5-4.0mm2	0.5-4.0mm²
	Stranded wire	2.5-4.0mm2	0.75-4.0mm²
	Flexible wire	2.5-4.0mm2	0.75-4.0mm²
Stripping length (mm)		7-8
Wiring		Screw locking
Screw size		M3
Repeatable wiring		√
Monopolar/Multipolar		Multipolar
Pole		2
Product fixing method		Screw
Materials
Insulation materials	Material	Polyamide 66
	Fire rating	UL 94V-2
Clamps		Copper, stainless steel (wire shrapnel)
Matching product
Tube fuse		5x20mm
Packing quantity
700
