    2 3 4 5 Poles 450 Volt 24 Amp Push In Cable Wiring Connector For LED Lights

    Ask Lasest Price
    Brand Name : Tianrui
    Model Number : P02 Series
    Certification : ROHS
    Price : Negotiable
    Payment Terms : T/T, Paypal, Mastercard, Wetern Union, Alipay, etc
    Supply Ability : 1000000PCS per Month
    Delivery Time : 5-7 work days
    • Product Details
    • Company Profile

    2 3 4 5 Poles 450 Volt 24 Amp Push In Cable Wiring Connector For LED Lights


    2 3 4 5 Poles 450 Volt 24 Amp Push In Cable Wiring Connector For LED Lights


    1. Product name : Screw Less Push In Wire Connector
    2. Series: P02 Series

    3. Housing : Polyamide 66

    4. Flammability Class : 94-V2
    5. Wiring Capacity : 0.5-2.5mm2

    6. Product Process : Injection Molding

    7. Pole: 2 3 4 5 Ports

    8. Color: White

    9. Feature: Snap-in Pins for Easy Fixing


    Specification of Screwless Push In Wire Connector


    Electrical Data
    IEC/EN
    UL
    Rated Voltage (V)
    450
    300
    Rated Current (A)
    24
    16
    Ambient Temperature
    Polyamide 66
    T110
    105℃
    Connection Data
    Cross Section
    IEC/EN
    UL
    Installation side
    A holes
    Solid conductor
    0.5-2.5mm²
    AWG 14-20
    Stranded conductor
    Flexible conductor
    0.5-1.5mm²
    -
    B holes
    Solid conductor
    0.5-1.5mm²
    AWG 16-20
    Stranded conductor
    Flexible conductor
    -
    Lighting side
    a/b holes
    Solid conductor
    0.5-2.5mm²
    AWG 14-18
    Stranded conductor
    Flexible conductor
    -
    Strip length (mm)
    8-10
    Materials
    Insulating materials
    Designation
    Polyamide 66
    Flammability class
    UL 94V-2
    Clamping unit
    Copper+stainless steel

    Features of Screwless Push In Wire Connector


    * Push wire connector
    * For various types of conductors
    * Test ports for easy functional test
    * Safe, fast and easy wiring
    * Wire release function
    * Various types of earth connection
    * Various markings available

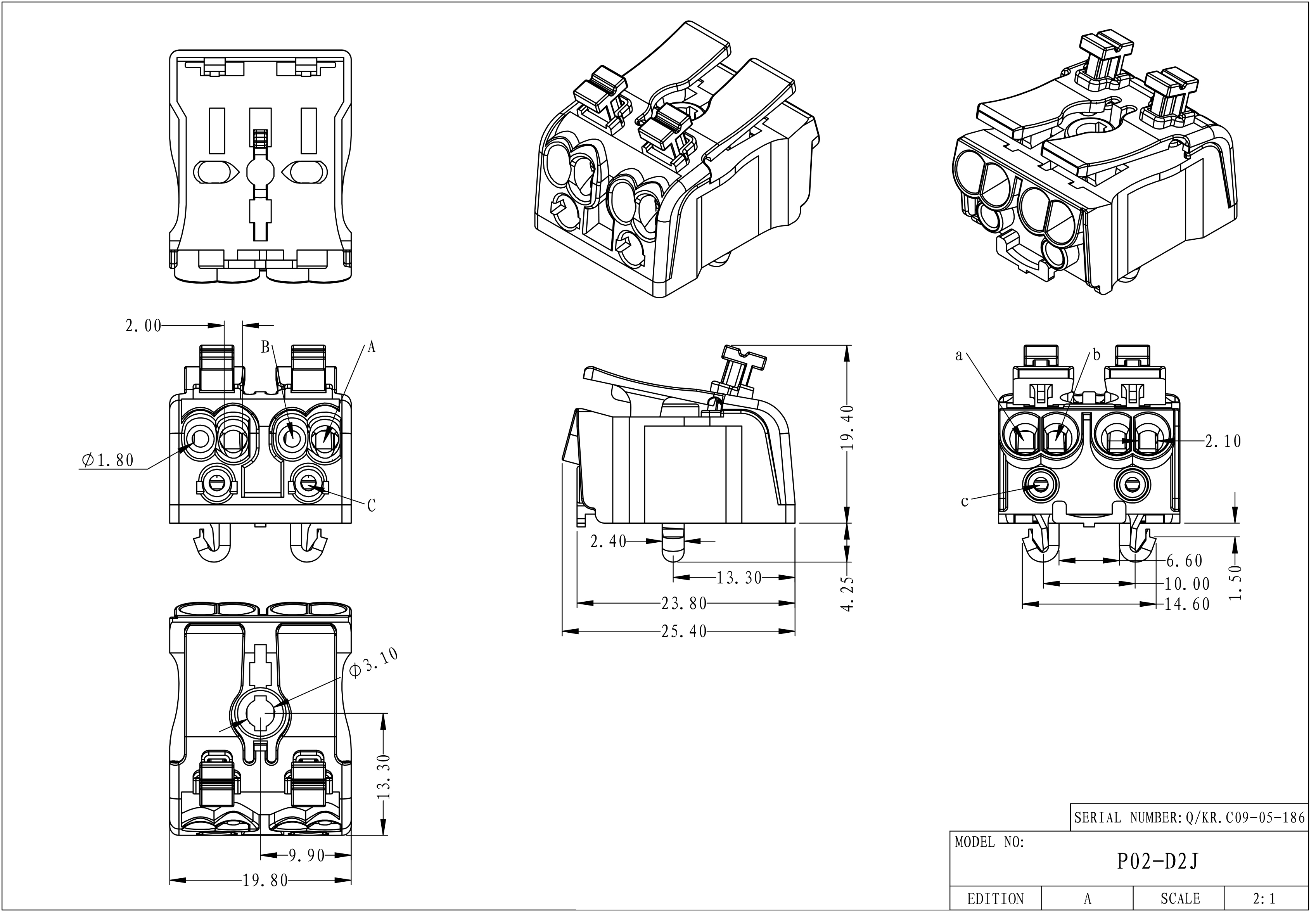

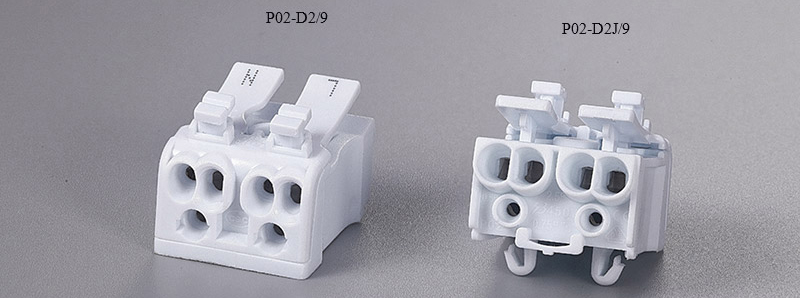

    P02-D2/9 P02-D2J/9 2 Ports Screwless Push In Wire Connector





    P02-D2/(9) P02-D2J/(9) 2 Ports Screwless Push In Wire Connector

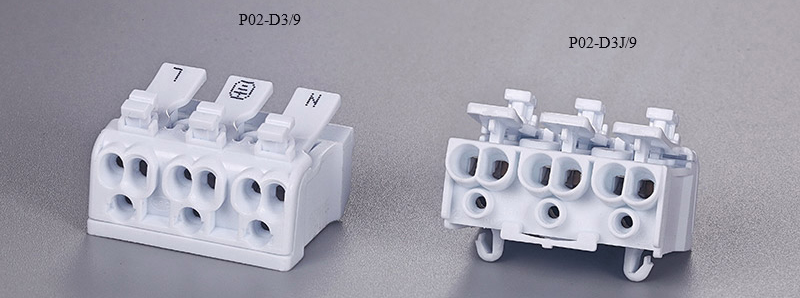

    P02-D3/9 P02-D3J/9 2 Ports Screwless Push In Wire Connector

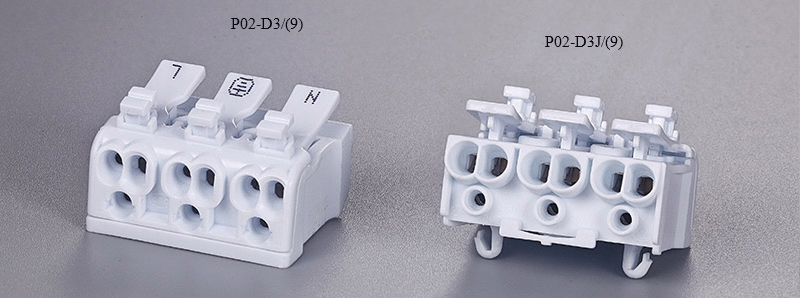

    P02-D3/(9) P02-D3J/(9) 2 Ports Screwless Push In Wire Connector

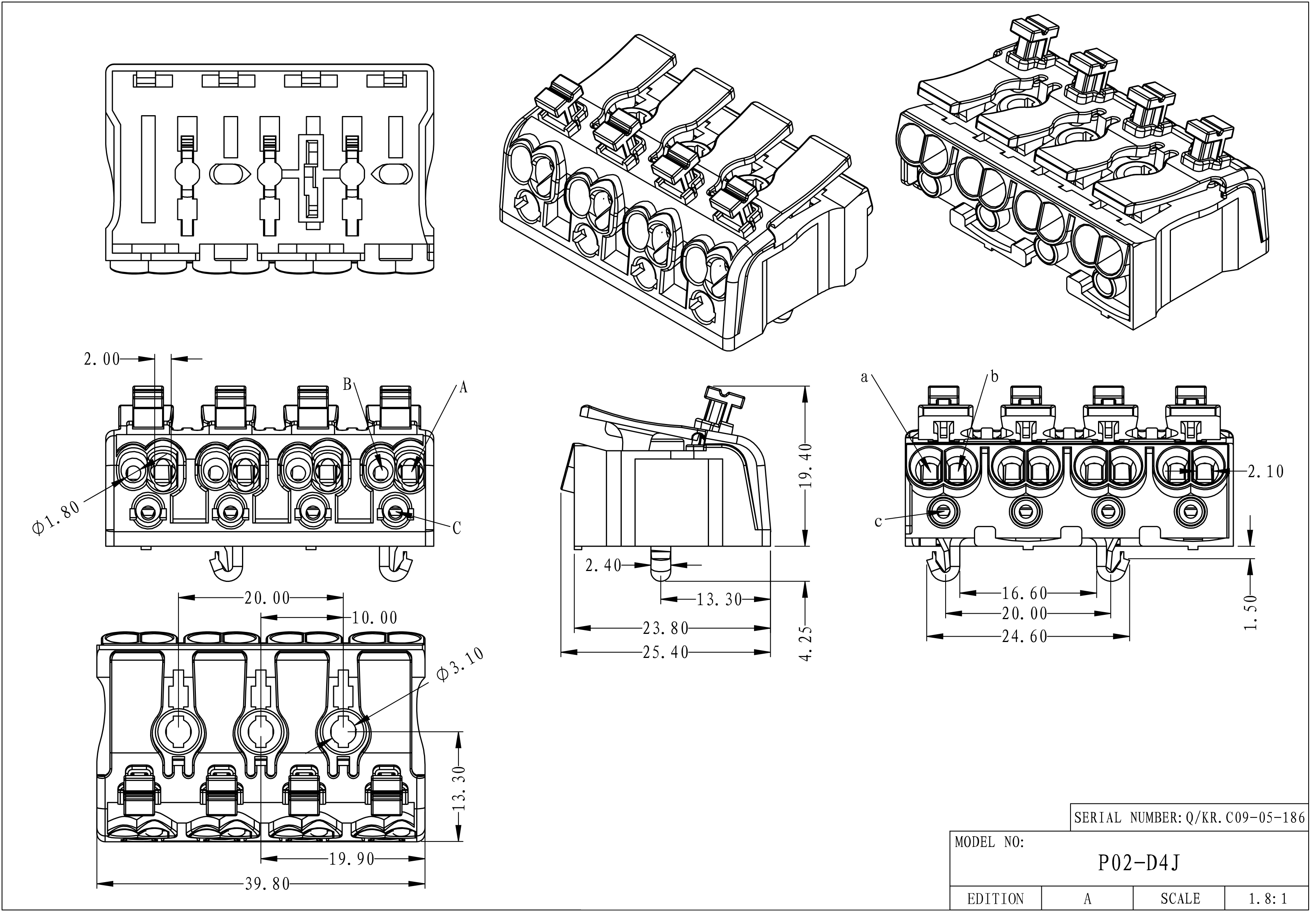

    P02-D4/9 P02-D4J/9 2 Ports Screwless Push In Wire Connector

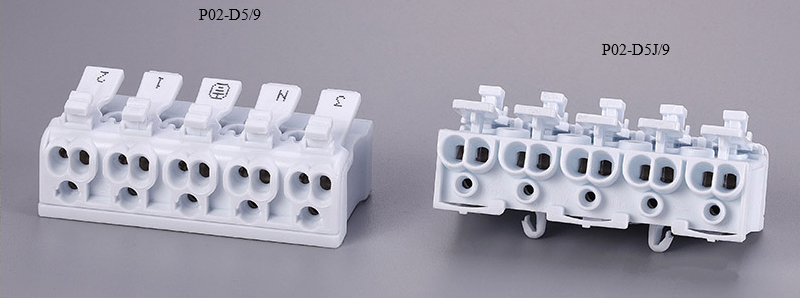

    P02-D5/9 P02-D5/9 2 Ports Screwless Push In Wire Connector
