Fast Connecting PC Housing 400V 18AWG Push Wire Connector For Stranded Conducts

Ask Lasest Price
Brand Name :	Tianrui
Model Number :	P01-i2, P01-i4, P01-X3
Certification :	VDE CQC
Price :	Negotiable
Payment Terms :	T/T, Paypal, Mastercard, Wetern Union, Alipay, etc
Supply Ability :	1000000PCS per Month
Delivery Time :	5-7 work days

Add to Cart

Product Details
Company Profile

Fast Connecting PC Housing 400V 18AWG Push Wire Connector For Stranded Conducts

Quick Fast Connecting Transparent PC Housing 400V 600V 18AWG 12AWG Push Wire Connector For Solid And Stranded Conducts

1. Product name : Quick Fast Connecting Push Wire Connector
2. Part number: P01-i2, P01-i4, P01-X3
3. Type : Push-in Wire Connectors

4. Housing : Polycarbonate
5. Flammability : 94V-2

6. Wire Range : 18-12 AWG 0.75-4 mm2

7. Pole: 2 Poles, 3 Poles, 4 Poles

8. Clamping Unit: Copper and Stainless Steel Spring

9. Application: Lamps, Appliances, Wiring Installation

Features of Quick Fast Connecting Transparent PC Housing 400V 600V 18AWG 12AWG Push Wire Connector

*Push wire connector

*For solid and stranded conductors

*Transparent housing

*Safe, fast and easy wiring

P01-i2 Quick Connecting Transparent Housing 400V 600V 18AWG 12AWG Push Wire Connector

Item no		P01-i2
Electrical Data
		IEC/EN	UL
Rated Voltage (V)		400	600
Rated Current (A)		32
Ambient Temperature	Polycarbonate	T105	105℃
Connection Data
		IEC/EN	UL
Cross Section	Solid conductor	0.75-4mm²	AWG 12-18
	Stranded conductor	1.5-4mm²	AWG 12-16
	Flexible conductor	-	-
Strip length (mm)		12
Materials
Insulation Materials	Designation	Polypropylene	Polycarbonate
Insulation Materials	Flammability class	UL 94V-2
Packing Quantity
6000PCS/Carton

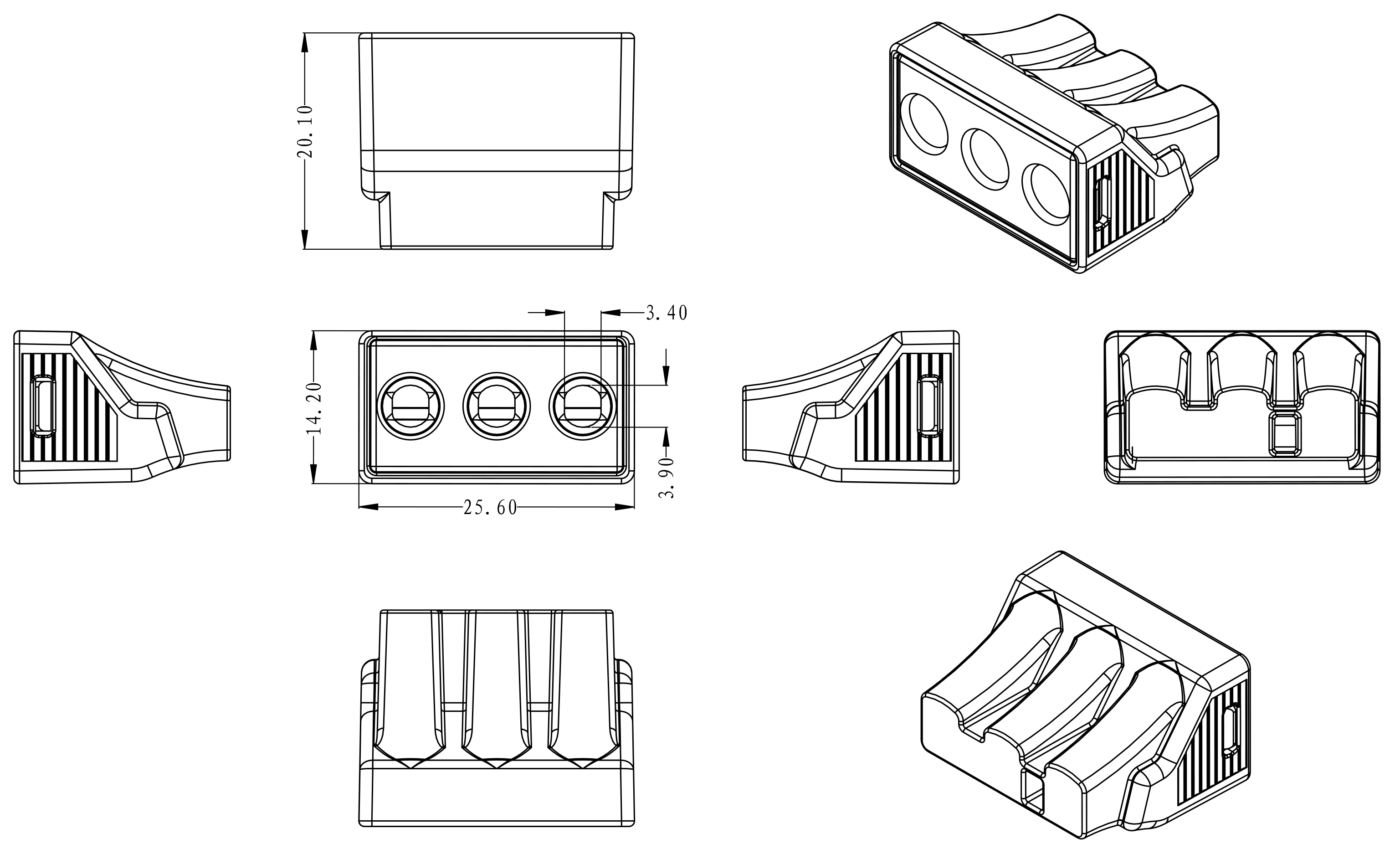

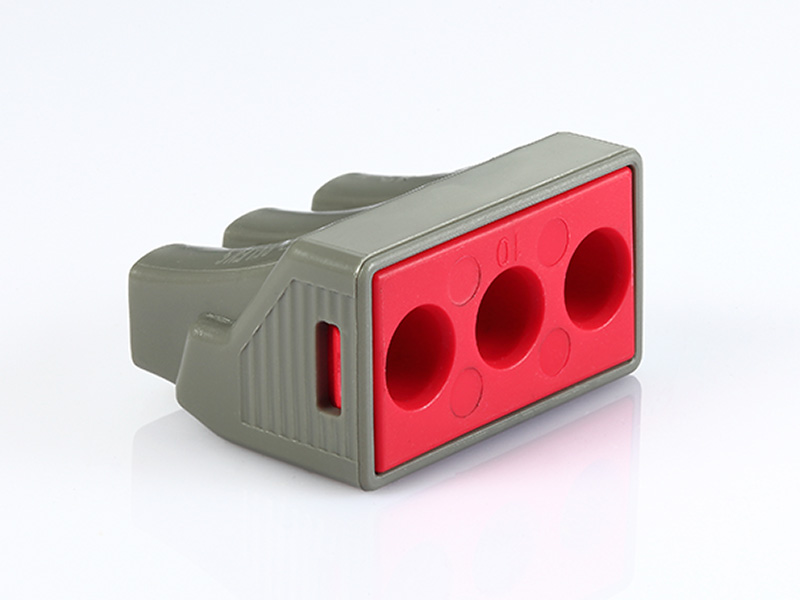

P01-X3 Fast Connecting PC Housing 400V 600V 18AWG 12AWG Push Wire Connector

Item no		P01-X3
Electrical Data
		IEC/EN
Rated Voltage (V)		400
Rated Current (A)		41
Ambient Temperature	Polycarbonate	T105
Connection Data
		IEC/EN
Cross Section	Solid conductor	2.5-6mm²
	Stranded conductor	2.5-6mm²
	Flexible conductor	-
Strip length (mm)		12
Materials
Insulation Materials	Designation	Polycarbonate
Insulation Materials	Flammability class	UL 94V-2
Packing quantity
2000PCS/Carton

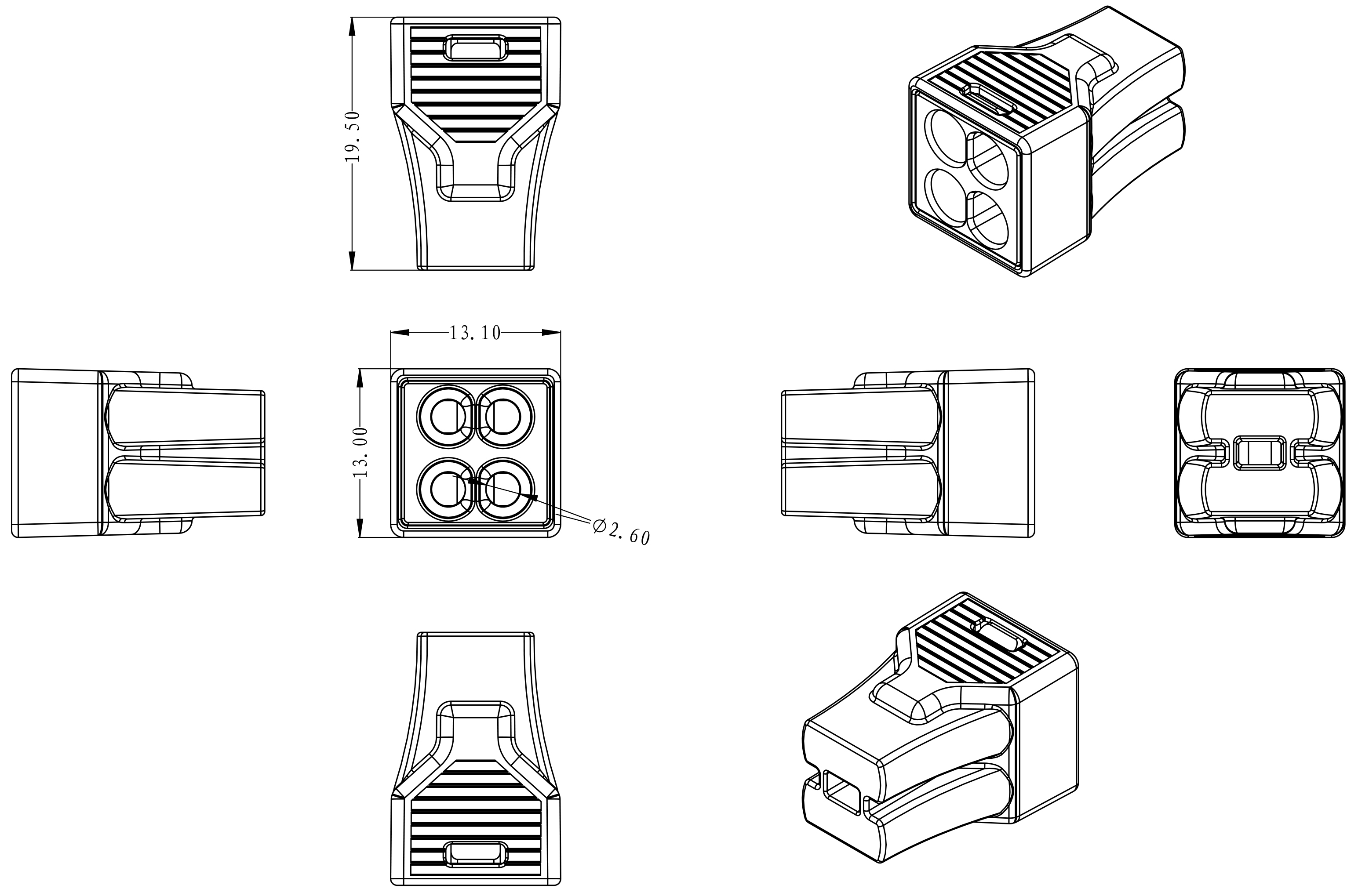

P01-i4 Fast Connecting PC Housing 400V 600V 18AWG 12AWG Push Wire Connector

Item no		P01-i4
Electrical Data
		IEC/EN	UL
Rated Voltage (V)		400	600
Rated Current (A)		32
Ambient Temperature	Polycarbonate	T105	105℃
Connection Data
		IEC/EN	UL
Cross Section	Solid conductor	0.75-4mm²	AWG 12-18
	Stranded conductor	1.5-4mm²	AWG 12-16
	Flexible conductor	-	-
Strip length (mm)		12
Materials
Insulation Materials	Designation	Polypropylene	Polycarbonate
Insulation Materials	Flammability class	UL 94V-2
Packing Quantity
4000PCS/Carton
