    P01 Series Push To Install 8 Poles Screw Less Push Power Wire Connectors

    Ask Lasest Price
    Brand Name : Tianrui
    Model Number : P01-82
    Certification : VDE CQC
    Price : Negotiable
    Payment Terms : T/T, Paypal, Mastercard, Wetern Union, Alipay, etc
    Supply Ability : 1000000PCS per Month
    Delivery Time : 5-7 work days
    • Product Details
    • Company Profile

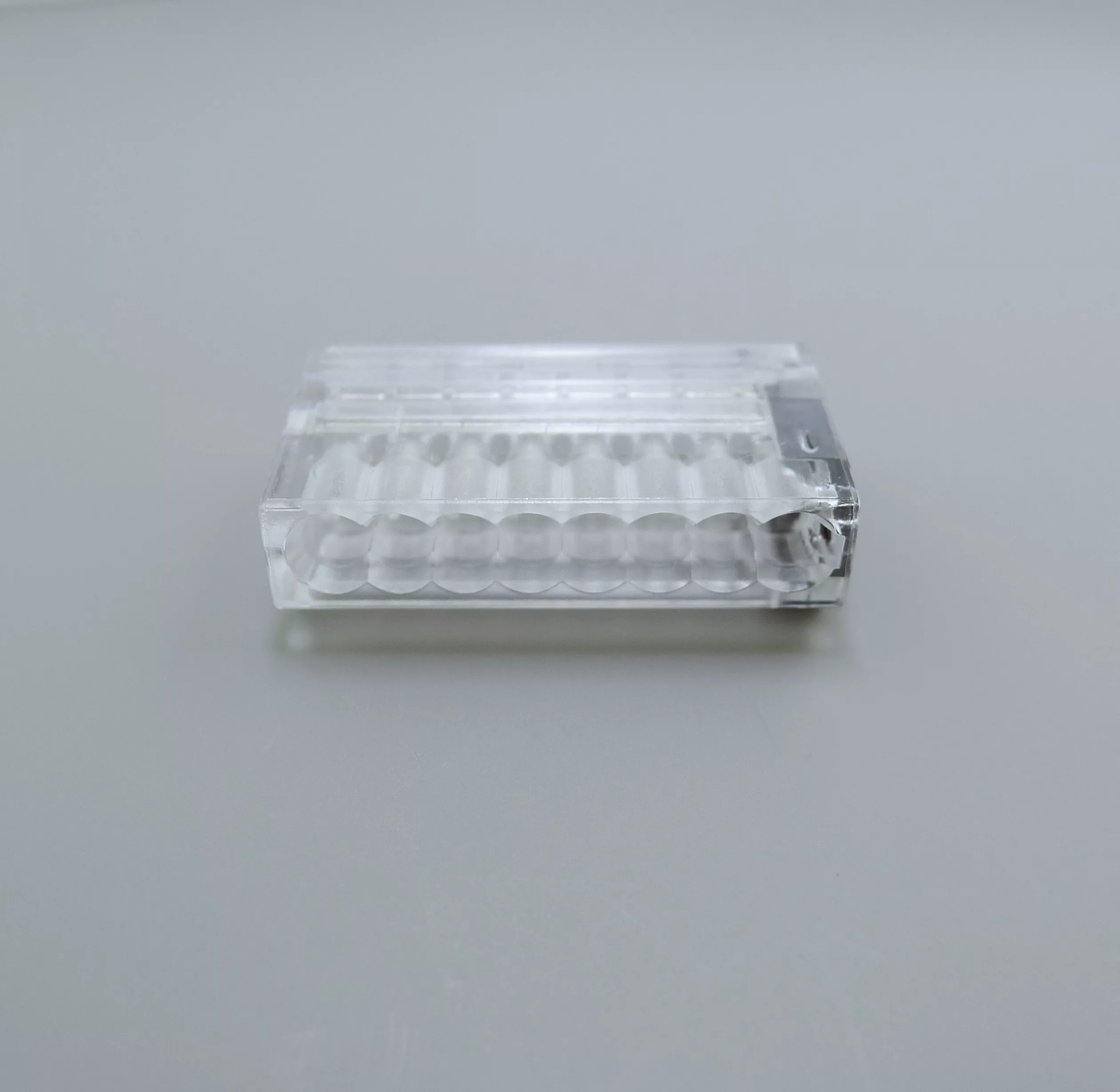

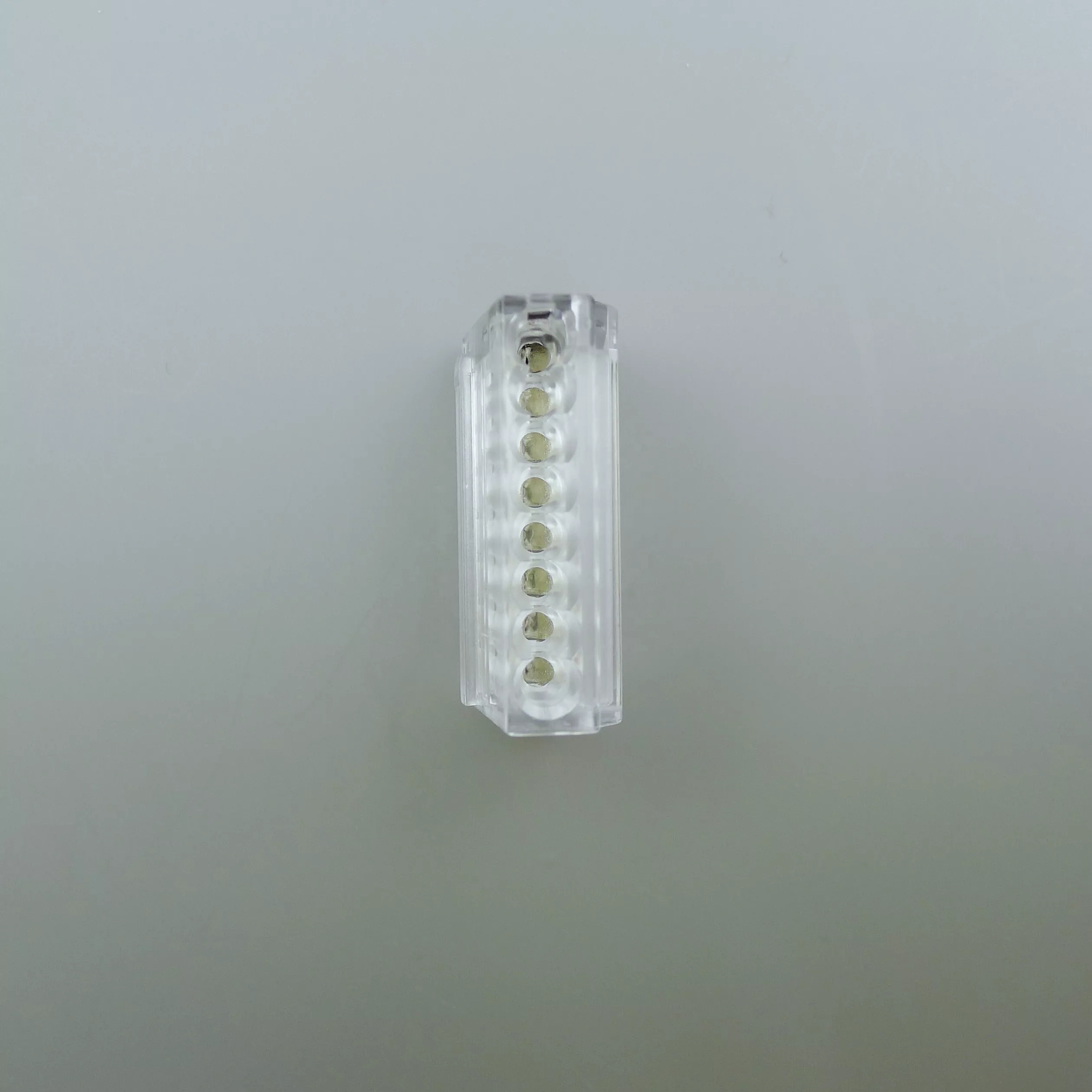

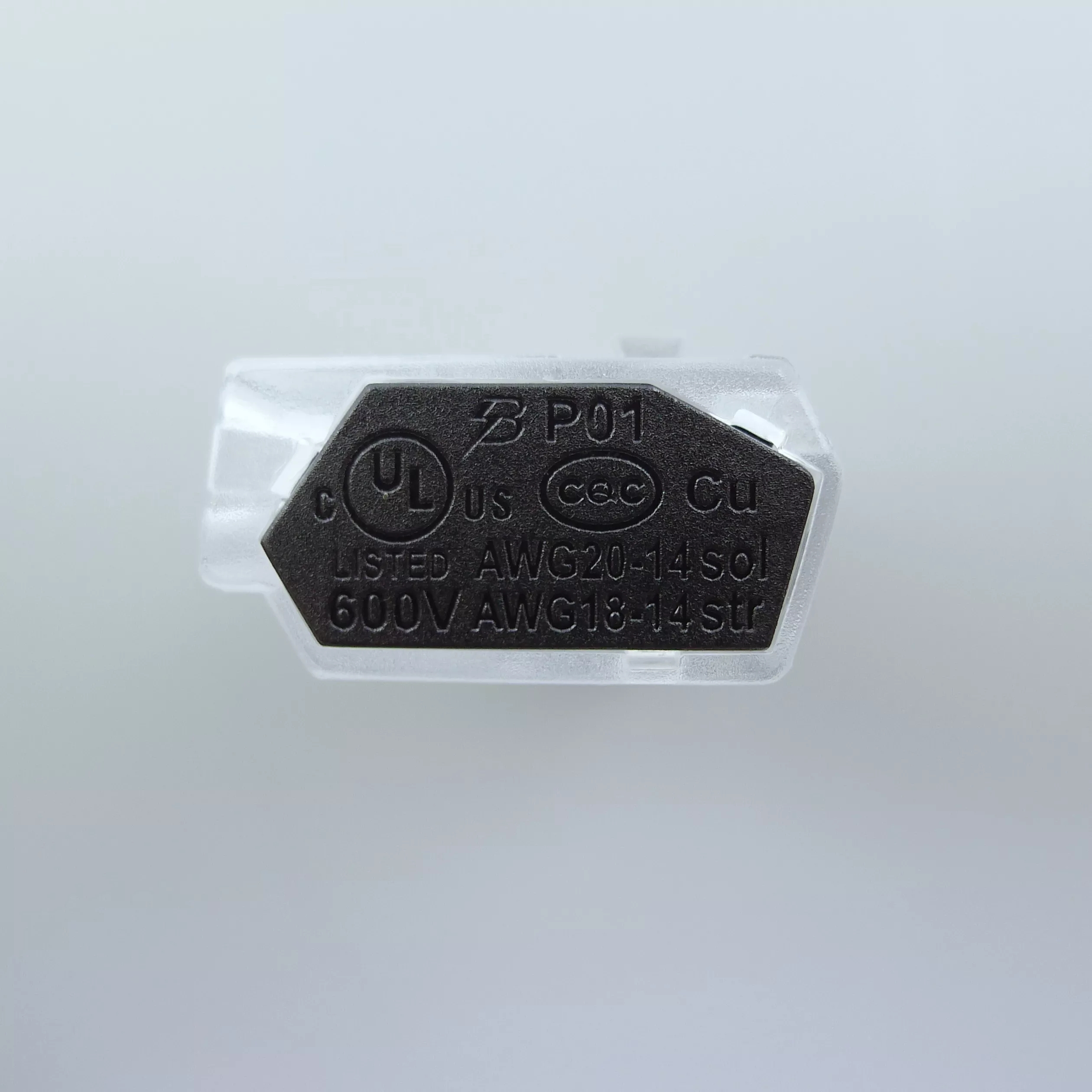

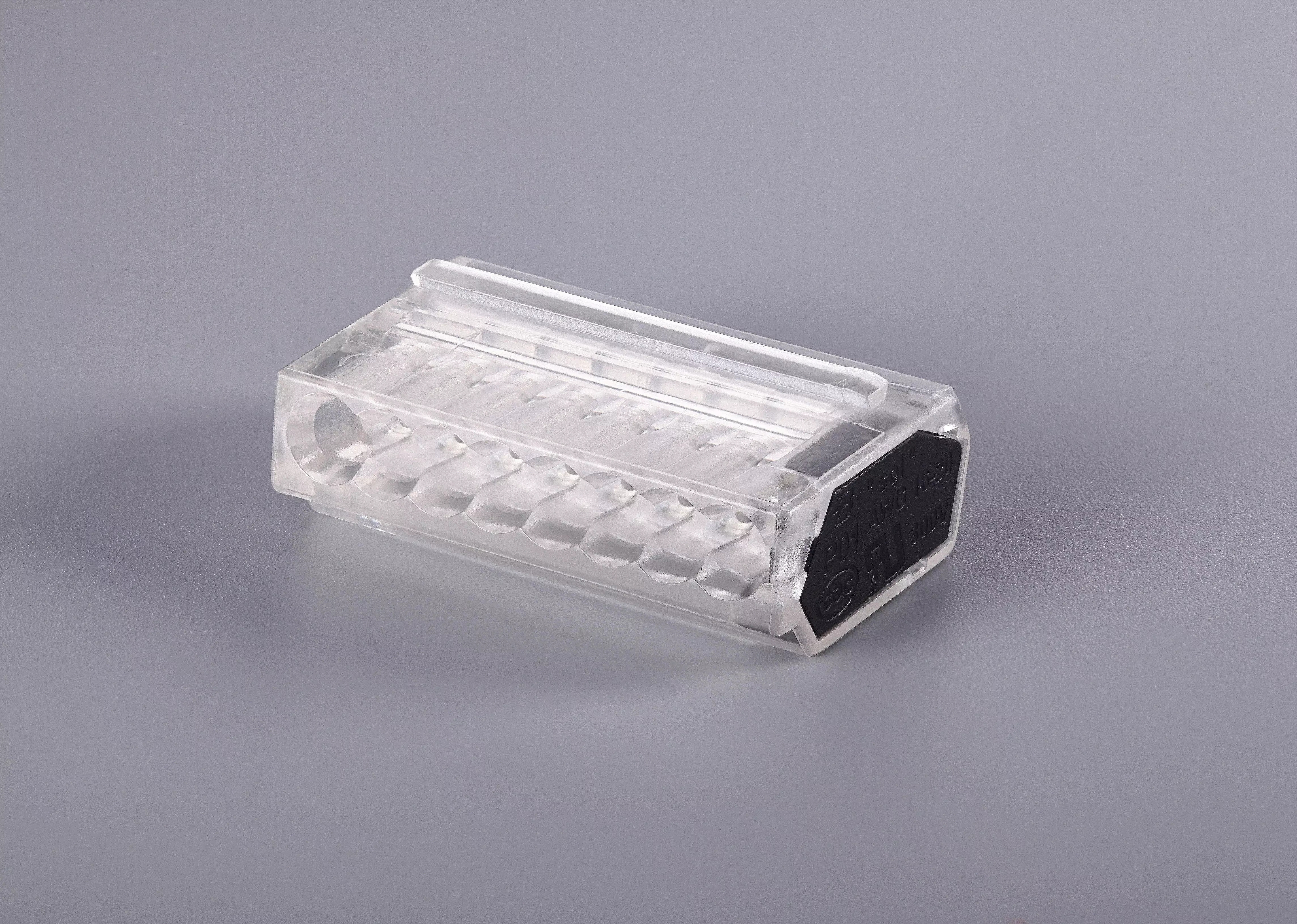

    P01 Series Push To Install 8 Poles Screw Less Push Power Wire Connectors


    P01 Series 8 Poles Screw Less Push Wire Connectors


    1. Product name : Screw Less Push Power Connector
    2. Part number: P01-82
    3. Type : Push-in Wire Connectors

    4. Connection Mode : Push-Pull Connection
    5. Connector Type : Composite Electric Connector

    6. Product Process : Injection Molding

    7. Pole: 8 poles

    8. Shape: Rectangle

    9. Usage: Power Connection


    Features of P01 Series 8 Poles Screw Less Push Wire Connectors


    Push-in wire connecctor with good retaining force
    For solid wire/stranded wire/tinned flexible wire
    Transparent housing for visual inspection of connection
    Interlock housing for orderly installation
    Colour-coded for easy identification


    P01-82 P01 Series 8 Poles Screw Less Push Wire Connectors


    Item No.
    P01-82
    Electrical Data
    IEC/EN
    UL
    Rated Voltage (V)
    450
    600
    Rated Current (A)
    24
    -
    Ambient Temperature
    Polycarbonate / Polypropylene
    T110
    105℃
    Connection Data
    IEC/EN
    UL
    Cross Section
    Solid conductor
    0.5-2.5mm²
    AWG 14-20
    Stranded conductor
    1.0-2.5mm² (7 strands included)
    AWG 14-18
    Strip length (mm)
    13
    Means of connection
    push in
    Rewirable
    Number of terminals
    single
    Number of connection points
    8
    Materials
    Insulation Materials
    Designation
    Polycarbonate, Polypropylene
    Flammability class
    UL 94V-2
    Packing Quantity (pcs/carton)
    1000
