    Waterproof Automotive In Line Fuse Holder For E77 E79 Circuit Breaker Resettable

    Ask Lasest Price
    Brand Name : Tian Rui
    Model Number : SL-709BA
    Certification : ROHS
    Price : Negotiable
    Payment Terms : D/P, T/T,Paypal, Western Union
    Supply Ability : 1000000PCS/Month
    Delivery Time : 5-7 Days
    • Product Details
    • Company Profile

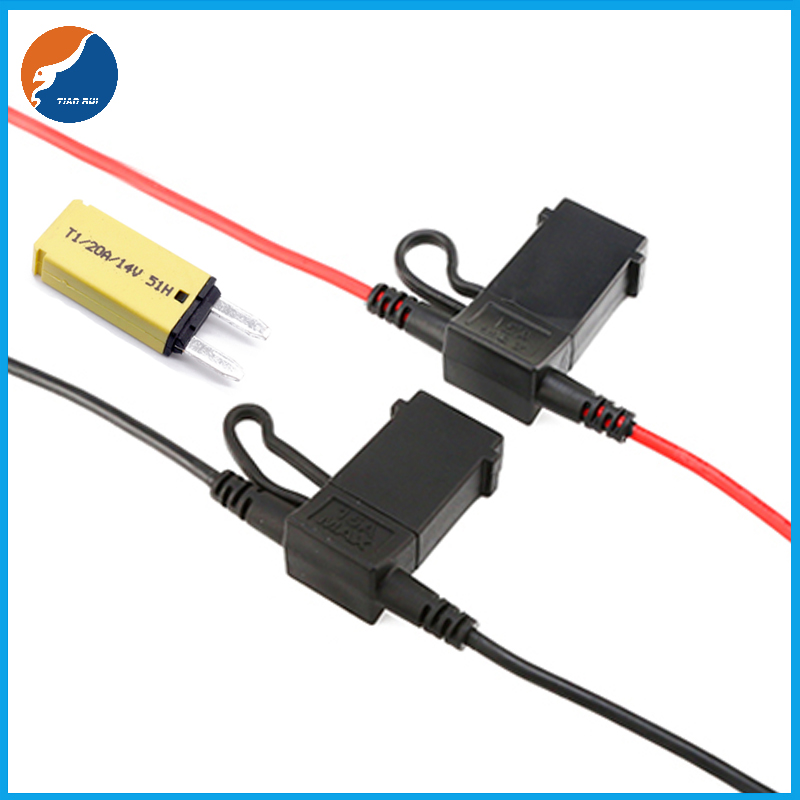

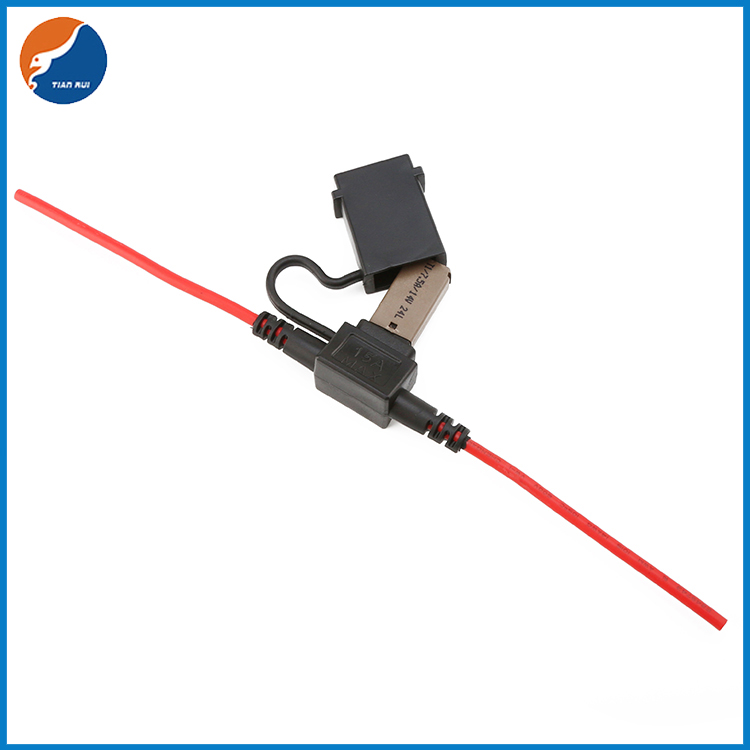

    Waterproof Automotive In Line Fuse Holder For E77 E79 Circuit Breaker Resettable


    E39 E38 E37 Circuit Breaker Resettable Fuse Holder Splash Proof Auto Inline Fuse Holder 12AWG For ATY ATO ATC Auto Fuses

    Quickly add circuit protection for accessory lighting, panel displays, air conditioners, and blower motors using the ATO Series 32V Waterproof In-Line Fuse Holder. This blade fuse holder features a built-in protective cover to provide an waterproof and dust-tight enclosure. The standard configurations are compatible with ATO blade fuses from 1A to 20A, while the heavy-duty configurations accept ATO blade fuses up to 25A or 30A, depending on the model.

    Specification of E39 E38 E37 Circuit Breaker Resettable Fuse Holder Splash Proof Auto Inline Fuse Holder

    NameIn-line Fuse Holder
    Net weight30g
    Wire length20cm or customized
    Voltage32V Max
    Wire size10AWG-18AWG
    ColorRed black
    Rated current1-30A
    Fuse SizeE77 E78 E79 Resettable Fuse, ATO ATC blade fuse
    MaterialPVC
    ContactsC194 copper alloy,tin plated
    CrimpMeet SAE/USCAR 21 standard
    Circuit breakerATO-E77 E78 E79


    Features of E39 E38 E37 Circuit Breaker Resettable Fuse Holder Splash Proof Auto Inline Fuse Holder

    •Accepts ATO blade fuses (sold separately unless indicated) from 1A to 20A (standard-duty) or up to 25A or 30A (heavy-duty), depending on the model
    •Built-in cover protects the installed fuse from dust and water
    •Heat-resistant thermoplastic fuse holder body with a UL 94 V-0 flammability rating
    •Wire leads come in various sizes and colors for simple in-line installation
    •Tin-plated copper alloy contacts for corrosion resistance

    Application of E39 E38 E37 Circuit Breaker Resettable Fuse Holder Splash Proof Auto Inline Fuse Holder


    Fuse holders can be used in any applications where you need to ensure electrical protection, isolation and switching under load of inductive or resistive loads. The technology solutions applied to reduce power dissipation help to minimize module heating. Fuse holders are suitable for protection against overloads and short circuits.

    E77 E78 E79 Circuit Breaker Resettable Blade Inline Fuse Holder




    Other Inline Resettable Fuse Holders
