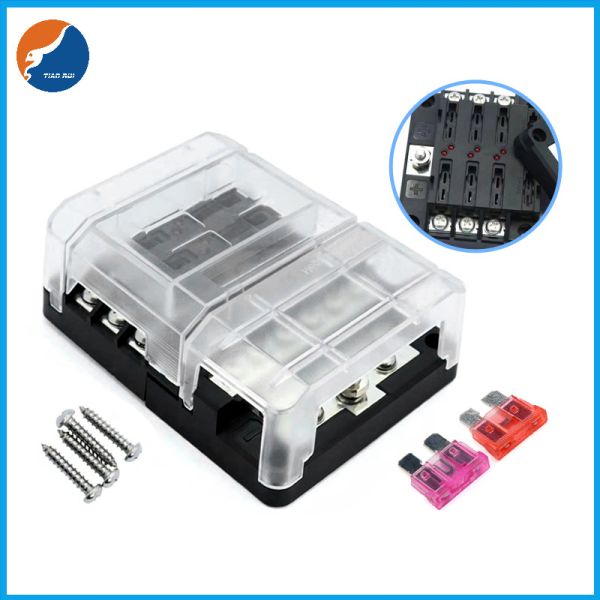

Car Boat Marine 32V 6 Way ATO ATC Fuse Block Holders Fuse Box With LED Indicators and Negative Busbar

●Voltage Rating| DC 32V Max

●Amp Rating per Branch | 30A (Screw Terminals) / 20A (Quick Terminals)

●TMax Cumulative Amp | 100A per block

●Terminal Stud Size | M5 (3/16")

●Screw Size | M4 (5/327) (AOA190x Only)

Specification of Modular Design Blade( ATP/ATO/ATC)Fuse Blocks

Description of 6 Way Fuse Block

The TR27x series are compact and solid blade fuse blocks designed for 24-hour circuits.The fuse blocks come with blown fuse indication LEDs,clear cover with recessed areas for label stickers and anre available in two versions with different terminals(screw or quick terminals).

Features of 6 Way Fuse Box

■Accepts Automotive Blade Fuses (ATP/ATC/ATO)

■Modular Design saves shelf space (2 items can be combined into 4 models)

■Transparent cover with recessed area for label stickers

■60 pieces assorted label stickers set included

■Storage for 2 spare fuses (for each 6P block)

■LED indication of blown fuses

Applications of 6 Way Fuse Holder

Suitable for all 12/24V battery cars and ships, such as battery cars, cars, motorcycles, buses, trailers, cranes, buses, RVs, yachts, ships, etc.

6P Fuse Block with Negative Bus Bar

TR273 comes with 6 circuits negative bus bar whensold pre-assembled in factory.
