High-Current 500A Automotive Vehicle 298 Bolt-down ANM MEGA Fuse Holder

The MEGA 298 Bolt-Down Series High-Current Fuse Holder works with MEGA bolt-down fuses. As a high-amp fuse holder, it's ideal for battery and alternator connections as well as providing ultra-high-current protection for other types of heavy gauge cables. Interlocking pins on the sides let you connect additional MEGA 298 Bolt-Down Series fuse holders for multi-fuse applications.

Specification of 298 Series MEGA ANM Bolt Down Fuse Holder

1. Product Name: MEGA ANM Fuse Holder
2. Fuse Size: ANM Fuse
3. Max Fuse Rating: 500A
4. Rated Voltage: 32V
5. Material: PA66+Screw-thread Steel+Nickel Plated Brass
6. Mounting Torque: 5NM
7. Studs: M8 Threaded

Description of 298 Series MEGA ANM Bolt Down Fuse Holder

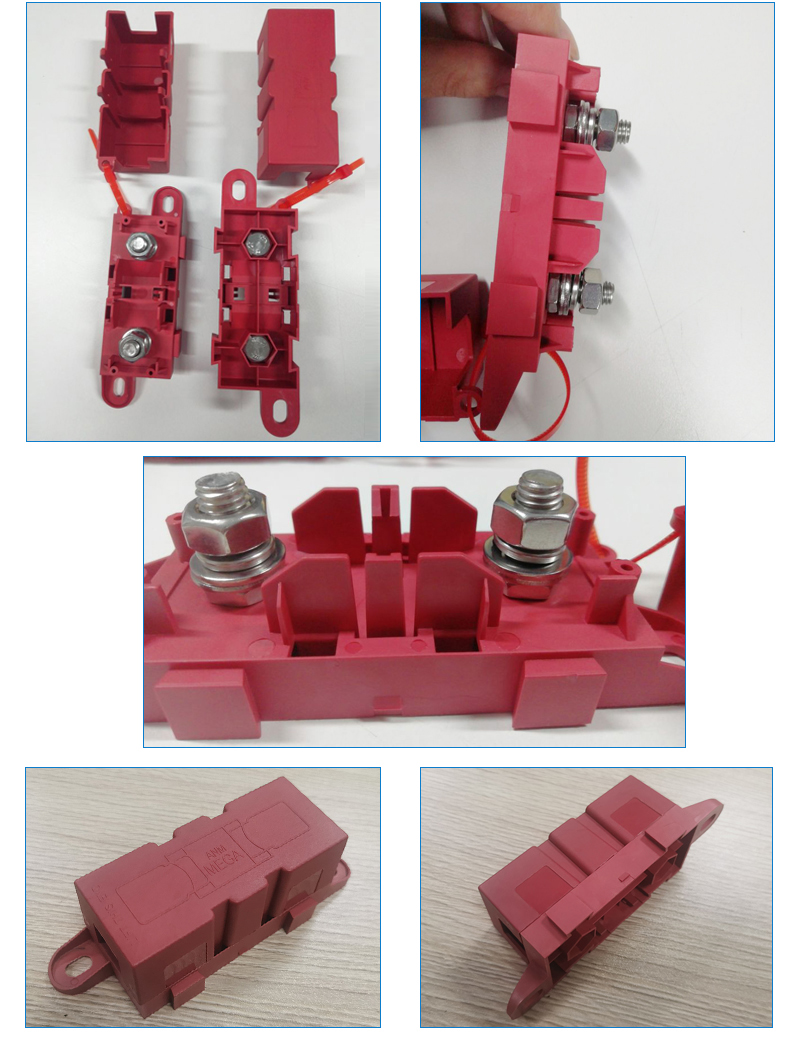

Use with MEGA fuse up to 500amps. Ideal for battery and alternator connections and other heavy gauge cables requiring ultra high current protection. Includes protective cover. Features interconnecting pins on side of fuse block for secure multiple block configurations. Includes M8 threaded studs and hex nuts with lock washers. Fuse not included.

Features and Benefits of 298 Series MEGA ANM Bolt Down Fuse Holder

•Compatible with MEGA fuses with a current rating of up to 500 amps (fuse not included)
•Silicone O-ring and grommets create a splashproof seal when the fuse holder is fully assembled (base and cover sold separately) •Interconnecting pins on the side of the fuse holder allow for multiple block configurations
•M8 stud input and output terminals

Application of 298 Series MEGA ANM Bolt Down Fuse Holder

Battery and Alternator Connections

High-Current Auto ANM Fuse Holder

Applicable for ANM auto fuse
