ANS Auto Car Bolt Down Fuse Block Holder Substitute Littelfuse MIDI 498 Series 04980900ZXT

Thanks to interlocking pins on its sides, the MIDI 498 Series 32V Bolt-Down High-Current Fuse Holder can be used as a single automotive fuse holder or combined with additional fuse holders to create a multi-fuse block. Compatible with MIDI bolt-down fuses up to 200 amps, the high-amp fuse holder comes with a protective thermoplastic cover that can be tethered to the base. The MIDI 498 Series fuse holder is offered in a wide variety of configurations. Base style options include one with mounting tabs and one without. Plus, the protective thermoplastic cover is available with openings in different locations to accommodate cables from different directions
(openings vary by part number).

Specification of ANS Auto Car Bolt Down Fuse Block Holder Substitute Littelfuse MIDI 498 Series

Feature of ANS Auto Car Bolt Down Fuse Block Holder Substitute Littelfuse MIDI 498 Series

• Compatible with MIDI bolt-down fuses rated up to 200amps (fuse sold separately)
• Glass-filled thermoplastic body withstands harsh underhood conditions
• M5 threaded studs and washers for simple fuse installation
• Interlocking pins on the sides of the fuse holder let you connect additional MIDI 498 Series fuse holders to create a multi-fuse block
• Base style options include one with mounting tabs and M6 holes for out-board mounting and one without mounting tabs featuring M3 holes for in-board mounting
• Included UL 94 rated protective cover has 6 available locations for openings to accommodate various cable entry needs (actual openings vary by part number)

Application of ANS Auto Car Bolt Down Fuse Block Holder Substitute Littelfuse MIDI 498 Series

High-Current Circuit Protection

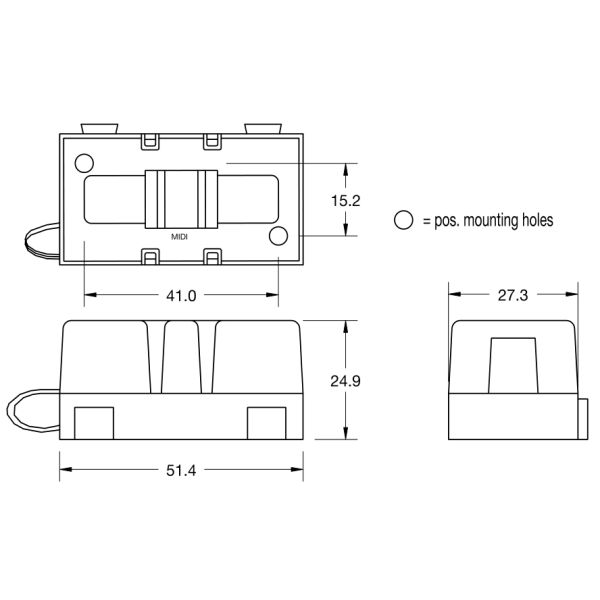

Drawing of ANS Auto Car Bolt Down Fuse Block Holder Substitute Littelfuse MIDI 498 Series

Display of ANS Auto Car Bolt Down Fuse Block Holder Substitute Littelfuse MIDI 498 Series
