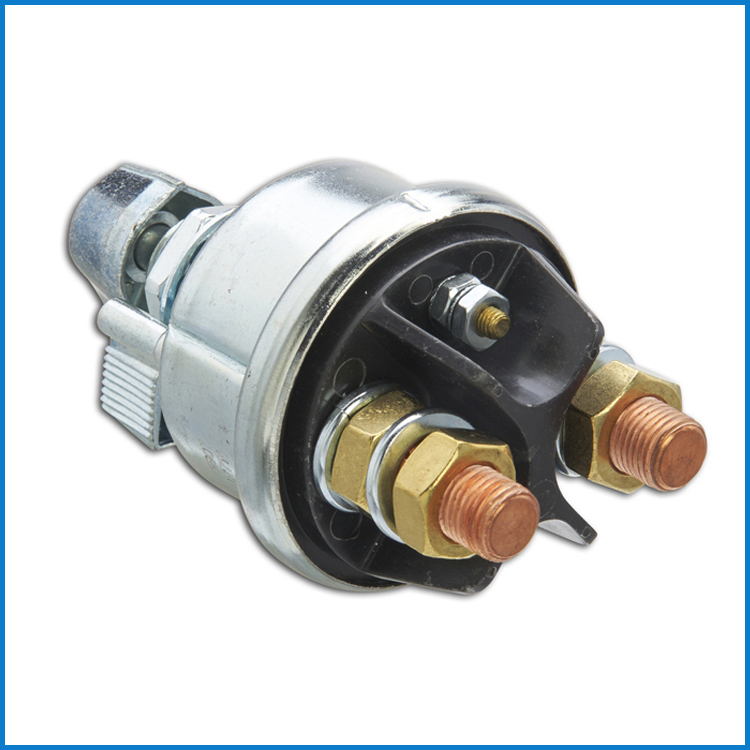

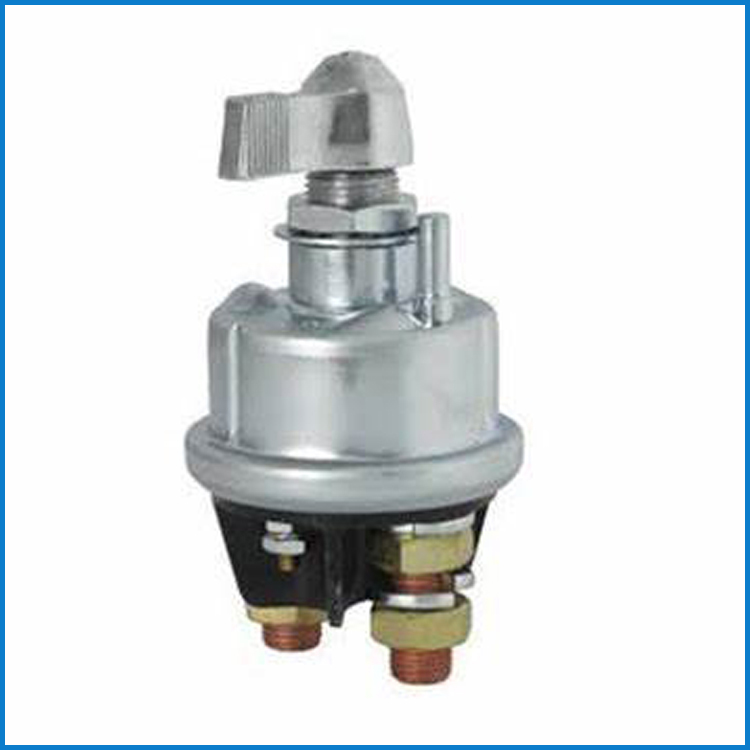

300A 36V SPST 75907 75908 Power Cut Isolator Kill Master Battery Disconnect Switch For Car Vehicle RV Marine

This battery disconnect switch is used with alternator cutoff, which features safety , theft protection and easy installation. Die cast zinc alloy housing , die cast lever, connecting brass slips, insulation slips, springs and structure have been improved in last 8 years step by step go guarantee reliable performance.

Specification of 300A 36V SPST 75907 75908 Power Cut Isolator Kill Master Battery Disconnect Switch

Master Disconnect Switch
Continuous Amp Rating Of 20 Amps At 12 Volts
Momentary Rating Of 125 Amps At 12 Volts
Spliced To Battery Cable
For Direct Power Shut off
Useful During Battery Charging
Useful When Car Not In Use
Switch Activation: Manual
Switch Actuation: Rotary (turn)
Voltage Compatibility: 12
Continuous Amp Rating: 20 amps
Surge Amp Rating: 125 amps
Includes Alternator Disconnect: No
Includes Magneto Disconnect: No
Waterproof: No
Mounting Bracket Included: No
Emergency Off Decal Included: Yes

Features of 300A 36V SPST 75907 75908 Power Cut Isolator Kill Master Battery Disconnect Switch

Our New Heavy Duty Master Battery Disconnect Switch is mainly control power supply

Universal apply for street roads, RVs, trailers, or just about any vehicle where a battery cut off switch is required

Quality guaranteed: Water proof,durable,easy to control,ensure the vehicle electrical system reliability and stability

Aluminum housing and heavy duty

185 amp constant / 1000 amp surge

3/8" Solid brass terminals and nuts

Mounting

75" Threaded Stem with Nut

Application of 300A 36V SPST 75907 75908 Power Cut Isolator Kill Master Battery Disconnect Switch

Can be used as interior and exterior of the increase in all kinds of electrical devices on / off key (eg: Strobe, chassis lights,
fog lights).

Easy To Install In A Minute

1. Disconnect battery.

2. Determine negative cable.

3. Choose suitable mounting position for switch. (you can drill a hole at the thread of the handle.

4. Install switch. Please refer to the wiring diagram in the instructions.

NOTE: Do not attach positive and negative cables to shutoff switch at the same time. Otherwise, battery explosion may result.

5. Reconnect battery and check for correct operation.

NOTE: Be sure ignition switch is in OFF position before turning shut-off switch to OFF position to eliminate voltage spikes that could damage ignition components.

Package Included

1 x Battery Disconnect Switch
