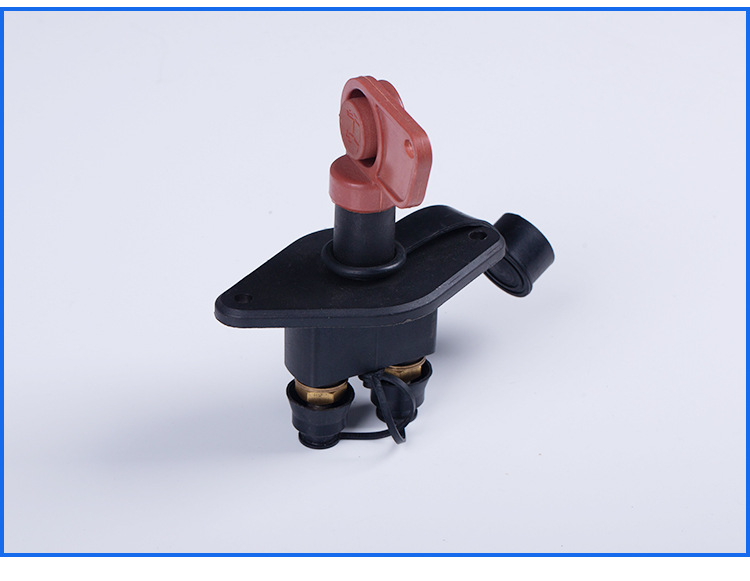

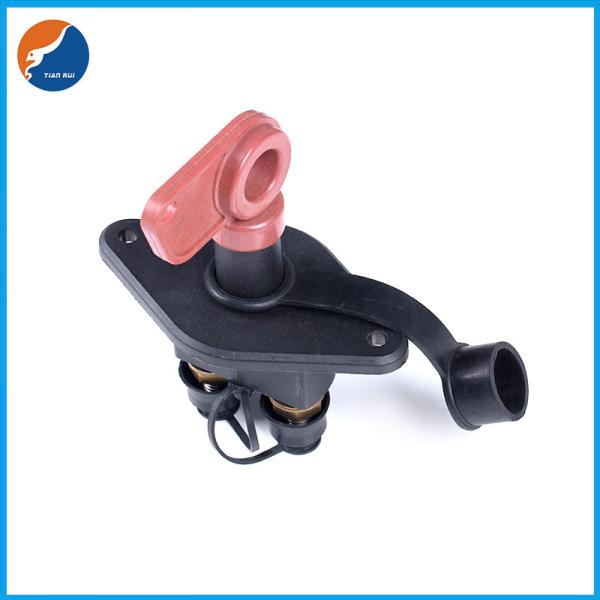

ATV High Current Car Power Master Battery Rotary Switch 81255020018 For Man Truck

This product is suitable for professional racing cars and has been widely used in various racing cars abroad. At present, this combination switch is used to transform racing cars in coastal cities in my country.

Wide range of uses, can be used as an on/off key to increase the type of electrical equipment inside and outside the car (such as: flashers, chassis lights, fog lights, dome lights, etc.

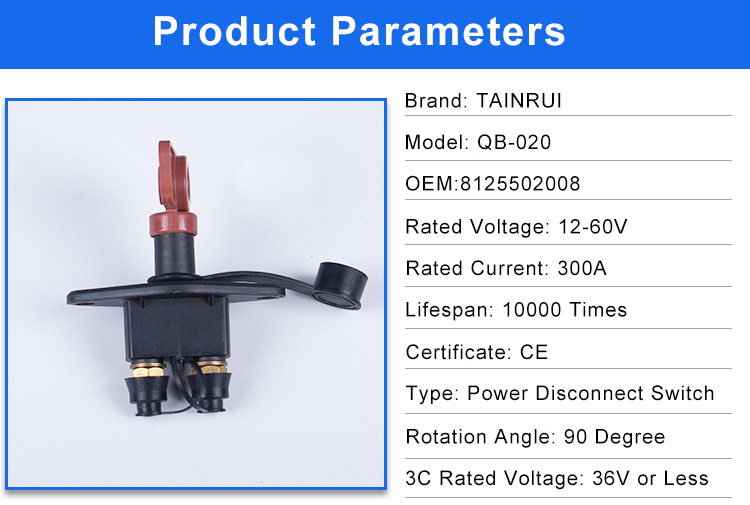

Specification of ATV High Current Car Power Master Battery Rotary Switch 81255020018

Master Disconnect Switch

Product weight: 250g
Product size: 7.2*7.2*10.5cm
Rated Current/Voltage: 300A 12-60V DC
Screw diameter: 10MM
Contact resistance: 50m
Insulation resistance: 100M
Dielectric Strength: 1500VAC/1min
Electrical life: 1000 Times

Features of ATV High Current Car Power Master Battery Rotary Switch 81255020018

Made of pure copper, reliable quality, small size, to be added to your car, put it in a suitable place, pure copper switch safety switch

Application of ATV High Current Car Power Master Battery Rotary Switch 81255020018

High quality battery switch (rotary switch)
New high-quality, widely used in automotive electronics, electrical products and various vehicles, marine products, can better protect your motor.

Easy To Install In A Minute

1. Disconnect battery.

2. Determine negative cable.

3. Choose suitable mounting position for switch. (you can drill a hole at the thread of the handle.

4. Install switch. Please refer to the wiring diagram in the instructions.

NOTE: Do not attach positive and negative cables to shutoff switch at the same time. Otherwise, battery explosion may result.

5. Reconnect battery and check for correct operation.

NOTE: Be sure ignition switch is in OFF position before turning shut-off switch to OFF position to eliminate voltage spikes that could damage ignition components.

Package Included

1 x Battery Disconnect Switch
