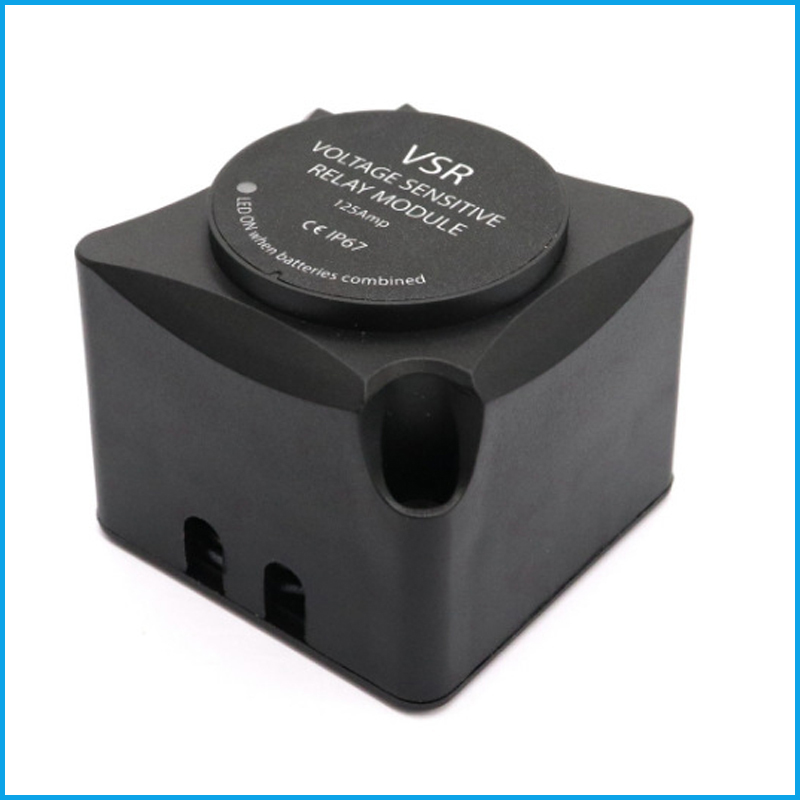

RV Dual Battery VSR Voltage Sensitive Relay Marine ACR Automatic Charging 125A Camper Split Charger Relay

Voltage Sensitive Relay (VSR) / Auto Charge Relay
VSR is short for Varistor

Specification of RV Dual Battery VSR Voltage Sensitive Relay Marine ACR Automatic Charging 125A Camper Split Charger Relay

Nominal Voltage | DC 12V
Combine / Open Voltage | DC 13.3V / 12.8V
Continuous Current Rating | 125A
Intermittent Current Rating | 140A

Size: 69*69*57.65mm

Weight: 0.2kg
Power Consumption | 10mA (Standby) / 330mA (Engage) / 0mA (Storage Mode)
Note |CE IP67 ISO8846/SAE J1171 (Ignition Protected)

Features of RV Dual Battery VSR Voltage Sensitive Relay Marine ACR Automatic Charging 125A Camper Split Charger Relay

Automatically combines two batteries when charging and isolates the two batteries when not charging.
No voltage drops comparing to battery isolator diodes(0.6V).
Dimensions fits Heavy Duty Modular Fuse Box Series (BF43x) and Battery Switch, matching mainstream products in market
Robust Glass Fiber reinforced Nylon enclosure
Built-in LED indication (ON when VSR engages)
Port for remote LED indicating VSR status (LED not included)
Surface or panel mount options provides flexibility when installing
Optional Storage Mode allows zero power consumption when engine is off.

Application of RV Dual Battery VSR Voltage Sensitive Relay Marine ACR Automatic Charging 125A Camper Split Charger Relay

Suitable for RV Marine boats, etc.
