40A to 800A Bolt Down ADLE ANL Stud Mounting Glass Fiber Fuse

ADLE Fuse

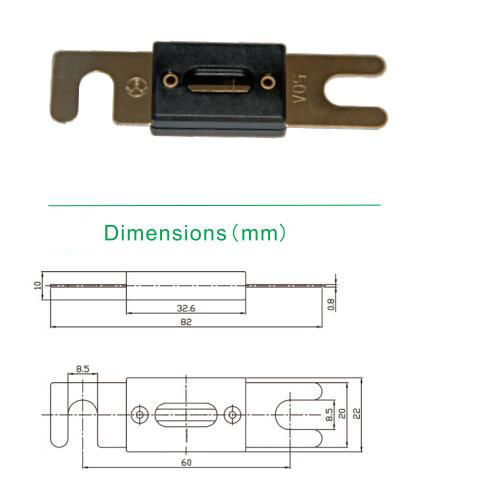

Specification

ANL Bakelite Auto Fuse

Model: Large stud fuse

Rated current : 40A to 800A

Rated voltage : 32V/48V/72V/125V

Material: Bakelite+Copper

Color: black

Certification: UL / UR / ROHS

Standard: DIN43560/1

Electrical Characteristic

Description

1. the fuses shown are for in motor vehicles, boats and trailers to protect not intended to restrict the design and use of other configurations and materials copable of meeting the vehicle requirements.

2. A fuse is a device designed to interrupt the electrical circuiut when subjected to overcents. This action is to be nonreversible and the fuse is intended to be replaced after the circuit, malfunction has been corrected.

ADL Fuse

Specification

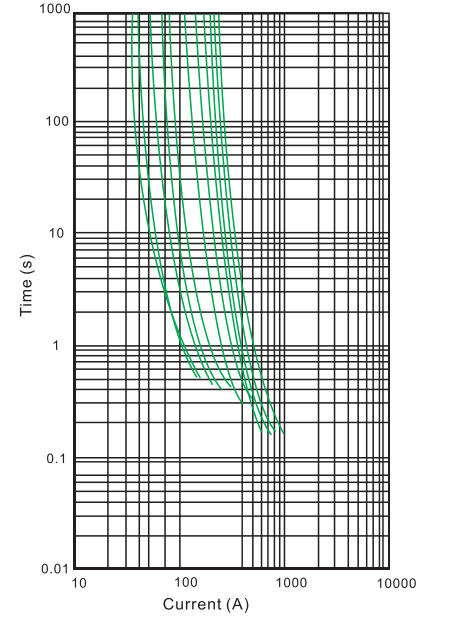

Time-Current Characteristics

ADL Non Time-delayed Current Limiters

Time- Current Characteristic Curves
