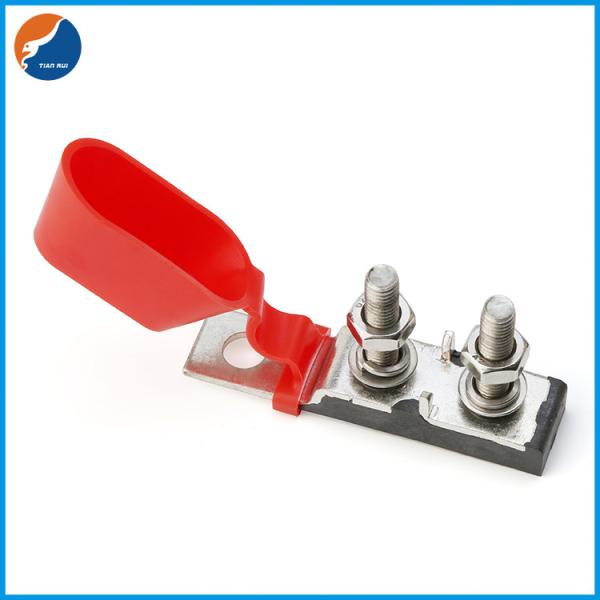

    MRBF Terminal Fuse Block Dual Studs Compact Mount for Marine Rated Battery Fuse M8

    Ask Lasest Price
    Brand Name : Tianrui
    Model Number : TRCF
    Certification : ROHS
    Price : Negotiable
    Payment Terms : T/T, Paypal, Mastercard, Wetern Union, Alipay, etc
    Supply Ability : 1000000PCS per Month
    Delivery Time : 5-7 work days
    • Product Details
    • Company Profile

    MRBF Terminal Fuse Block Dual Studs Compact Mount for Marine Rated Battery Fuse M8

    MRBF Terminal Fuse Block Dual Studs Compact Mount for Marine Rated Battery Fuse M8


    Marine-grade, ignition-protected fuse blocks accommodate high amperage MRBF fuses. Suitable for protecting DC main, inverter, windlass, and bow thruster circuits. Mounts on a 3/8" battery post, battery switch or busbar, allowing for easy installation in tight space constraints and satisfies ABYC 7" circuit protection rule. Includes insulating cap to prevent accidental shorts.


    Weatherproof design can be used in small open cockpit boats and other harsh environments, and can prevent short circuits caused by other unexpected events.


    Specification of Dual Studs MRBF Terminal Fuse Block


    Stud Size: M8 (5/16")

    Fuse holder mounting hole: 3/8" (9.53MM)

    Applicable fuse current rating: 300A

    Maximum rated voltage of fuse: 58V

    Nut material: steel (galvanized)

    Stud Material: Stainless Steel

    Insulation Material: Ceramic

    Fuse Material: Copper Alloy (Nickel Plated) Silver

    Fuse case: PES plastic transparent


    For Use WithMRBF Fuses
    Mount TypeTerminal
    Number of Fusesup to 2
    Source TypeCommon
    Maximum Voltage58V DC
    Maximum Amperage per circuit300A
    Item Dimensions LxWxH‎7 x 3 x 3 inches
    Ingress ProtectedIP66 when used with battery terminal (MRBF) fuses
    Ignition ProtectedSAE J1171 when used with battery terminal (MRBF) fuses

    Features of Dual Studs MRBF Terminal Fuse Block


    Excellent Action - The mrbf fuse block features a compact design for DC main inverter, winch, automotive and bow thruster circuit protection, providing high current circuit protection in tight spaces; high ignition transient current provides protection .


    Excellent Design - The stud design is small and simple, the double stud design can reduce the number of bases used and save space; the weatherproof design can be suitable for small open cockpit boats and other harsh environments, effectively preventing other accidents. circuit short circuit.


    Stud Specifications - Stud Size: M8 (5/16"), Fuse Holder Mounting Hole: 3/8" (9.53MM), Applicable Fuse Current Rating: 200A, Fuse Maximum Voltage Rating: 58V.


    Excellent Materials - Seat Material: Thermoplastic Body, Nut Material: Steel (Zinc Plated), Stud Material: Stainless Steel, Cover Material: Plastic, Insulation Material: Ceramic, Fuse Material: Copper Alloy (Nickel Plated), Fuse Housing : PES plastic.


    Friendly Reminder - Do not install the fuse directly on the battery terminals. Must be used with terminal fuse box, double stud base can be used with 30-300A fuse at will.


    Application of Dual Studs MRBF Terminal Fuse Block


    Full range circuit protection for automotive and marine applications. The breaking capacity meets the requirements of conventional vehicle batteries and 12V, 24V and 42V electrical networks. Compact, high-amp fuse appropriate for DC Main, inverters, windlass, and bow thruster circuit protection. Provides high current protection in tight space constraints. Ignition protected when used with MRBF Terminal Fuse Blocks. Isolated stud design uses standard M8 hardware and permits stacking of terminals.


    Package Includes


    1x Dual MRBF Terminal Fuse Block; 1x Red Insulating Cap; 2x Washers; 2x Lock Washers; 2x M8 Hex Nuts; 2x 200A Fuses(sold separametely).
