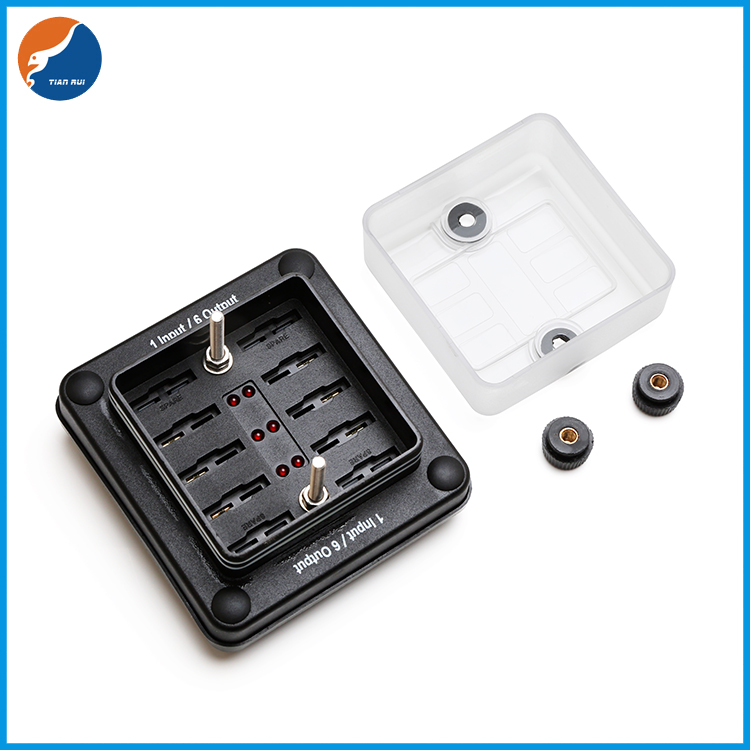

Waterproof DC ATC ATO Fuse Blade Block Holder 6 Way Car Vehicle
Automotive Fuse Box
Model: TR-FB614
Name: waterproof 6 way fuse box
Net weight: 172G
Gross weight: 211g
Size: 8.7x9.2x4.2cm
Input rated voltage: 32V
Input rated current: 100A
Output maximum current: 30A per road
Product material: PA66 base, PC dust cover, nickel -plated copper
terminals, stainless steel screws, DIY stickers
Main connection terminal: M5 double head bolt (maximum 100A 32V DC)
Main line conductor:#4-6AWG
Single -line terminal: copper/nickel plating 1/4 "(6.3mm) (maximum
20A 32V DC)
Single-line conductor:#12-16AWG
Open hole size: 5.5*6cm
Product accessories: sticker X1; self -attack screw X4; 20A
insurance film X4; 15A insurance film X4; 10A insurance film X2; 5A
insurance film X2; suitable for 1A to 20A ATO or ATC fuse.
Item | Waterproof 6 Way Fuse Box with LED |
Input | DC 12V-32V |
Input / Output Current | 30A max. per circuit |
Size | 6 Way Middle Blade Fuse Block |
Material | Plastic+Metal |
Broad Compalitity | Car, Boat, Marine, Motorcycle, Atv, Rv Etc |
Package | 1 x 6 Way Fuse Box |
Fuse Function of Waterproof DC ATC ATO Fuse Blade Block Holder 6 Way Car Vehicle
Automotive Fuse Box
When the circuit fails or abnormalities, the current is accompanied
by the continuous increase of the current and the elevated current
may damage some important devices or valuable devices in the
circuit, which may also burn the circuit or even cause fire. The
fuse protection electronic equipment is not damaged by current, and
it can also avoid serious damage caused by electronic equipment due
to internal faults. Therefore, there are rated specifications on
each fuse, and the fuse will be melted when the current exceeds the
rated specifications. If the fuse is placed correctly in the
circuit, then when the fuse will increase to a certain height and a
certain temperature at a certain height and a certain temperature,
the fuse will be cut off and cuts the current, thereby protecting
the safe operation of the circuit.
Advantages of Waterproof DC ATC ATO Fuse Blade Block Holder 6 Way Car Vehicle
Automotive Fuse Box
[1] The product adopts PBT anti -flame retardant high temperature
and temperature and environmental protection material, which fully
meets [The fuse seat must have good mechanical strength,
insulation, heat resistance, and flame retardant. Conditions of
short circuit and other phenomena
[2] All bus and fuse clips are nickel -plated copper, which are
resistant to corrosion resistance and excellent electrical
conductivity
[3] All fasteners are stainless steel, the insurance box input, the
output end is fixed with a tight screw, which can be installed
faster quickly, and the insurance box is fixed with a self -attack
screw, which is simpler and safer to install.
[4] Product gift stickers, according to the name marked on the
sticker, the corresponding sticker is on the electrical appliance
we connected.
[5] Product distribution fuse, you can choose the fuse of the Abe
according to the current electrical appliance.
Application of Waterproof DC ATC ATO Fuse Blade Block Holder 6 Way Car Vehicle
Automotive Fuse Box
Can be installed on the car, off -road vehicles, RVs, bus, yacht,
boat, etc.
