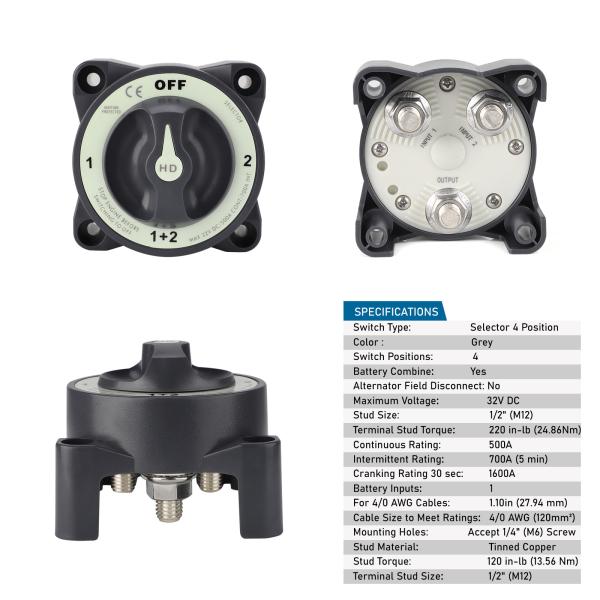

HD Series Heavy Duty Selector 4 Posistion Battery Switch 32V 500A
3002
500 Amps continuous rating for outboards and small gasoline or
diesel engines.
Battery management is central to the safe operation of a boat or
vehicle.
All boats and vehicles with an engine have at least one battery
with the primary purpose of starting the engine and providing power
for loads such as lights, pumps, and electronics. The safe
switching between batteries, loads, and charge sources is achieved
using products like the m-series battery switches.
An innovative snap-together design increases reliability and
longevity without the use of internal fasteners. The back cover is
one-piece with break-out-sides, for easier installation. Every stud
is pressed into a copper reinforced bus for added support.
Specification
Product Name | Boat Marine RV Battery Switch |
| Color | Grey |
Switch Type | Selector 4 Posistion |
| Switch Positions | 4 |
| Battery Combine | Yes |
| Continuous Rating | 500A |
Intermittent Rating | 700A (5 min) |
| Starting Rating 30 sec | 1600A per circuit |
| Maximum Voltage | 32VDC |
| Stud Size | 1/2" (M12) |
| Stud Material | Tinned Copper |
| Stud Torque | 220 in-lb (24.86 Nm) |
| Battery Inputs | 2 |
| Cable Clearance For 4/0 AWG Cables | 1.10in (27.94 mm) |
| Cable Size to Meet Ratings | 4/0 AWG (120mm²) |
| Mounting Holes | Accept 1/4" (M6) Screw |
| Weight | 1.30lb (0.59 kg) |
Features
• Tin-plated copper studs for maximum conductivity and corrosion
resistance
• Accepts up to 4/0 AWG (120 mm²) battery cables
• Studs accept 1/2" (M12) ring terminals
• 7/8" (22 mm) stud length accepts multiple cable terminals
• One-piece terminal stud design never loosens over time
• One-piece stainless flange nuts ensure safe and secure
connections
• Fits most low amperage battery switch hole patterns
• Case design allows surface or rear mounting options
• Tactile indicator conveys knob position by feel
Function
Prevent leakage, protect the power supply, disconnect the battery
safely.
Application
This battery master switch is widely used for Car, Marine, Boat,
RV, Camper, Travel Trailer, Truck, ATV, UTV, Battery banks and
other 0-48V Devices.
