    Littelfuse 443 Series Replacement 250V 0.5A 0.75A 1A 1.25A 1.5A 2A 2.5A 3A 3.5A 4A 5A 6.3A SMD Fuse for LED Lighting

    Ask Lasest Price
    Brand Name : Tian Rui
    Model Number : 1032F 1031T
    Certification : ROHS REACH
    Price : Negotiable
    Payment Terms : D/P, T/T,Paypal, Western Union
    Supply Ability : 1000000PCS/Month
    Delivery Time : 5-7 Days
    • Product Details
    • Company Profile

    Littelfuse 443 Series Replacement 250V 0.5A 0.75A 1A 1.25A 1.5A 2A 2.5A 3A 3.5A 4A 5A 6.3A SMD Fuse for LED Lighting


    Littelfuse 443 Series Replacement 250V 0.5A 0.75A 1A 1.25A 1.5A 2A 2.5A 3A 3.5A 4A 5A 6.3A SMD Fuse for LED Lighting

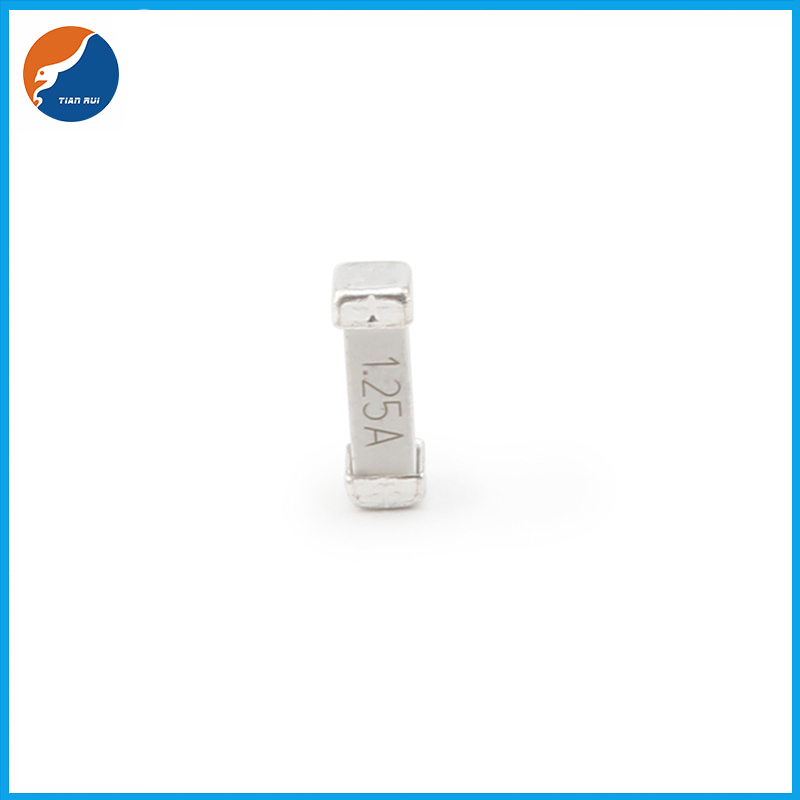

    The Nano2 Fuse is a small square surface mount fuse that is designed to enable compliance with the RoHS directive. This product is fully

    compatible with lead-free solder alloy and higher temperature profiles associated with lead-free assembly


    Littelfuse 443 Series Replacement 250V 0.5A 0.75A 1A 1.25A 1.5A 2A 2.5A 3A 3.5A 4A 5A 6.3A SMD Fuse for LED Lighting


    Littelfuse 443 Series Replacement 250V 0.5A 0.75A 1A 1.25A 1.5A 2A 2.5A 3A 3.5A 4A 5A 6.3A SMD Fuse for LED Lighting


    Littelfuse 443 Series Replacement 250V 0.5A 0.75A 1A 1.25A 1.5A 2A 2.5A 3A 3.5A 4A 5A 6.3A SMD Fuse for LED Lighting


    SPECIFICATION


    NO.ComponentMaterialQuantity
    ①CapSilver Plated Brass2
    ②BodyCeramic tube1


    Rated currentRated voltageBreaking capacitySafety Aproval
    UR
    200mA250V/125V
    DC
    72V/100V
    DC
    63V60V/32V
    DC    		1KA@32V
    500A@72V60V
    150A@63V72V100V
    150A@125V250V    		●
    250mA●
    300mA●
    315mA●
    375mA●
    400mA●
    500mA●
    600mA●
    630mA●
    700mA●
    750mA●
    800mA●
    1A●
    1.25A●
    1.6A●
    2A●
    2.5A●
    3A●
    3.15A●
    3.5A●
    4A●
    5A●
    6A●
    6.3A●
    7A●
    8A●
    10A●
    12A●
    15A●
    16A●
    20A●
    25A●
    30A●
    40A●







    PRODUCT CHARACTERISTICS


    No.ItemContainReference standard
    1
    Insulation Resistance    		10,000 ohms minimumMIL-STD-202G, Method 302 Test ConditionA
    2
    Solderability    		T=235℃±5 ℃, t=5+0/-0.5s,
    Cover≧95%    		MIL-STD-202G, Method 208H
    3
    Resistance to Soldering Heat    		10 sec at 260℃MIL-STD-202G, Method 210F Test
    Condition B
    4
    Thermal Shock    		5 cycles, -65℃ to 125℃,
    15minutes @each extreme    		MIL-STD-202G, Method 107G Test
    Condition B
    5
    Mechanical Shock    		100G’s peak for 6 milliseconds, 3 cyclesMIL-STD-202G, Method 213B Test 1
    6
    Vibration    		0.03” amplitude, 10-55 Hz in 1 min. 2hrs each XYZ=6hrsMIL-STD-202G, Method 201A
    7
    Moisture Resistance    		10 cyclesMIL-STD-202G, Method 106G
    8
    Salt spray    		48hrsMIL-STD-202G, Method 101E Test
    Condition B

    ELECTRICAL CHARACTERISTICS


    Ampere Rating% of Ampere RatingOpening Time
    200mA – 40A100%4 hours, Min .
    250%120s, Max .


    Recommended Soldering Parameters


    Profile Featuren

    Pb-Free

    assembly

    Average Ramp-up Rate

    (Tsmax to Tp)

    		3 °C /sec Max.

    Preheat

    Temperature Min Ts(min)

    Temperature Max Ts(max)

    Temperature Max Ts(max)

    150°C

    200°C

    60-120 sec

    Peak Temperature(Tp)250°C

    Time within 5°C of actual Peak

    Temperature(Tp)

    		5 sec
    Melting tin time(TL)20sec~4Osec
    Ramp-down Rate6°C/sec Max .
    Time25 °Cto peak Temperature8minutes Max

    Application
    Notebook PCLCD/PDF TVLCD/PDP panelLCD monitor
    LCD backlight inverterPortable DVE playerPower supplyNetworking
    PC serverCooling fan systemStorage systemTelecom system
    Wireless base stationWhite goodsGame consoleAutomotive
    Battery charging circuitOffice AutomationIndustrial equipmentMedical equipment
