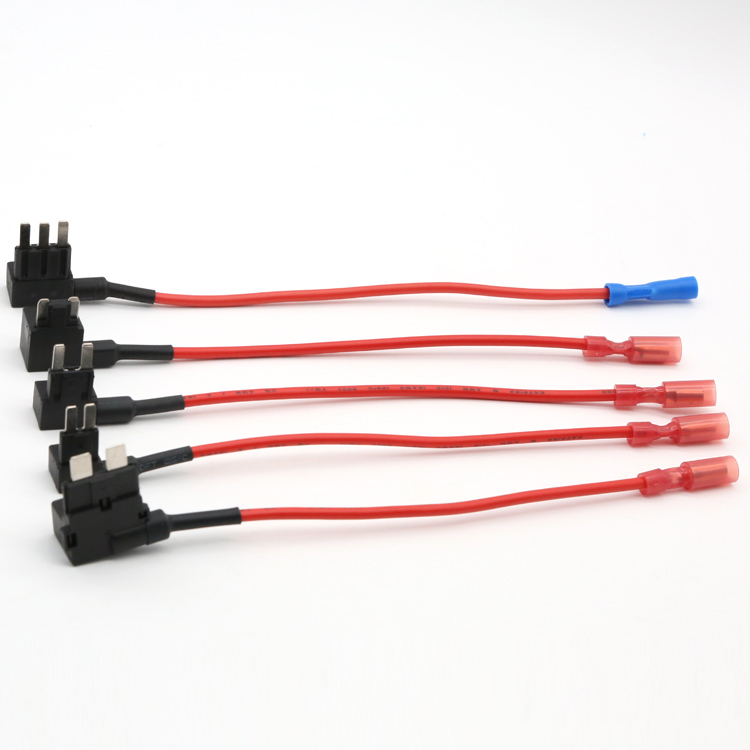

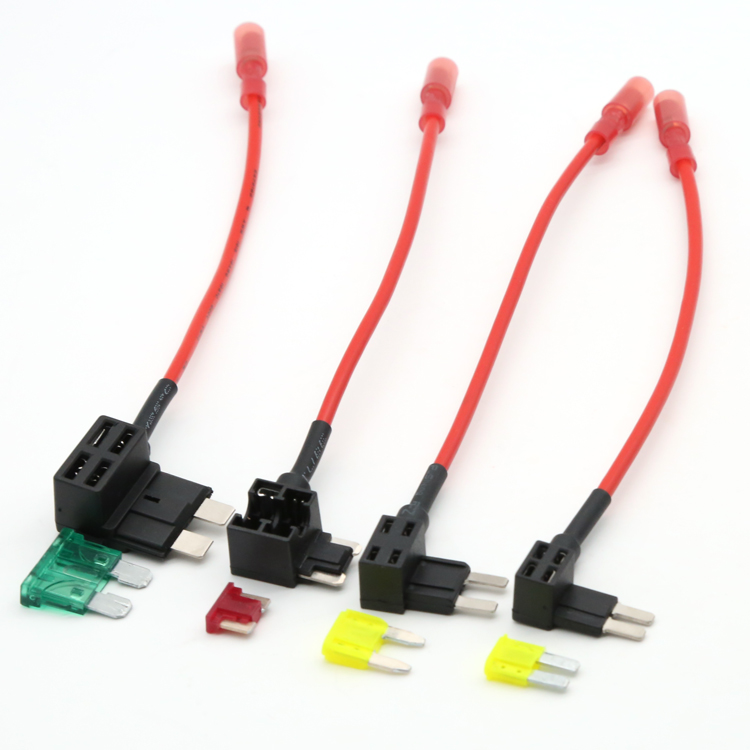

Replacement FHM20200Z 0FHM0200Z 0FHM0200ZP FHM0200ZPA 0FHM0200Z-NC
0FHM0200S Add-A-Circuit Fuse Tap Holder with Butt Splice Connectors
Specification
| Product Name | Add-A-Circuit Fuse Tap |
| Rated Current and Voltage | 1-20A 32V |
| Fuse Size | Blade Auto Fuse |
| Contacts | Nickel Plated Brass |
| Wire Size | 16AWG to 20AWG |
| Wire Length | 150MM or Customized |
| Holder Color | Black |
| Type | Fuse Holder |
| Outer Material | PVC |
| Usage | Automotive Vehicle |
Features
1: It is suitable for car line installation/modification to take
electricity without breaking the line.
2: The power supply position is the fuse box, insert one to fill
one, and place the original fuse close to the plug seat, and place
the fuse needed for the modification on the other seat (connected
with the wire).
Application
It is widely used in automotive LEDs, automotive fuse boxes,
automotive alarms, automotive positioners, automotive engines and
other power-taking parts.
The Correct and Simple Operation Method
1: Connect the ground wire first. Please remember that the ground
wire must be connected to the screw on the car steel plate; the
plastic upper screw cannot be used as a ground wire (low current or
no power)
2: First insert the fuse into the outer pin of the electrical
appliance, and then insert the electrical appliance into the
position you want to find, usually the ACC position. If you are
looking for a location, pull out the original fuse first. Use fuse
clips or needle-nose pliers! If it is empty, insert it directly!
See if the LED test light is on (if there is no led test light, use
the recorder and external equipment to test whether it works)
3: Remember the key point: Take the empty space inside the
appliance, don't insert the fuse!
4: If there is no electricity, pull out the electrical appliance,
turn it 180°, switch the two feet, and insert the car's fuse base
again. When the power is successfully taken, insert the fuse of the
original car to the inner position of the electric appliance to
supply power to the equipment of the original car!
5: Special note: The fuse is powered by each fuse current.
Low-current devices such as driving recorders and electronic dogs
can be connected in series with the original car's fuse, but
high-current devices such as air pumps are not allowed to be
borrowed in series! If you still don’t understand, please contact
us.
Wiring Method
First: prepare tools, scissors, wire strippers, wire clamps, dark
wire car charger, fuse box.
Second: Connect the electric appliance and the double-headed shovel
to the charging line (red) and the neutral line (black) of the car.
Third: twist the red and black wires of the dark line car into a
spiral.
Fourth: Connect the electric appliance and the corresponding car
charger live wire (red) to the wire clip, double-head shovel and
the car charger zero wire (black) to the wire clip, pinch the wire
clip with pliers, and close the lid.
