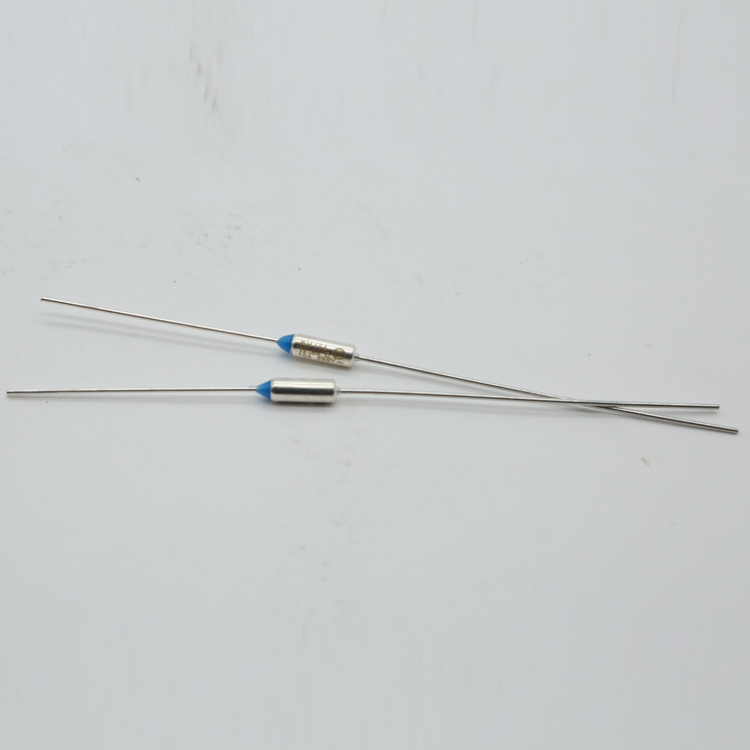

    DF Series 94C 98C 104C 113C 117C 121C 128C 142C 152C 167C 184C 192C 205C 216C 240C 257C 10A 15A 16A 20A 25A 30A Thermal Cutoff Fuse

    Ask Lasest Price
    Brand Name : TAMURA
    Model Number : DF Series
    Certification : ROHS
    Price : Negotiable
    Payment Terms : T/T, Paypal, Mastercard, Wetern Union, Alipay, etc
    Supply Ability : 1000000PCS per Month
    Delivery Time : 5-7 work days
    • Product Details
    • Company Profile

    DF Series 94C 98C 104C 113C 117C 121C 128C 142C 152C 167C 184C 192C 205C 216C 240C 257C 10A 15A 16A 20A 25A 30A Thermal Cutoff Fuse


    DF Series 94C 98C 104C 113C 117C 121C 128C 142C 152C 167C 184C 192C 205C 216C 240C 257C 10A 15A 16A 20A 25A 30A Thermal Cutoff Fuse


    Thermal fuses can sense overheating caused by abnormal operation of electrical and electronic products, thereby cutting off the circuit to avoid fire. Commonly used in: hair dryers, electric irons, rice cookers, electric stoves, transformers, motors, water dispensers, coffee pots, etc. After the thermal fuse is operated, it cannot be used again and only operates once at the fuse temperature.


    Specification


    Product NameThermal Fuse
    Rated Current10A 15A 16A 20A 25A 30A
    Rated Voltage250V AC
    Temperature Range94℃ to 257℃
    LeadsAxial Lead
    TypeMetal Thermal Fuse
    Body Size11x4mm
    ResettableNon-resettable

    DF Series 94C 98C 104C 113C 117C 121C 128C 142C 152C 167C 184C 192C 205C 216C 240C 257C 10A 15A 16A 20A 25A 30A Thermal Cutoff Fuse


    Model No.TF℃) Rated Function TemperatureT0(℃)Fusing-off temperatureTh(℃) Holding temperatureTm(℃) Max temperatureULTUVCQC

    IEC60691

    standard

    Company standard
    DF94/DF94S/DF94M/DF94L9484-9487-9179450
    DF98/DF98S/DF98M/DF98L9888-9893-9883450
    DF104/DF104S/DF104M/DF104L10494-10499-10489450
    DF113/DF113S/DF113M/DF113L113103-113108-11398450
    DF117/DF117S/DF117M/DF117L117107-117112-117102450
    DF121/DF121S/DF121M/DF121L121111-121116-121106420
    DF128/DF128S/DF128M/DF128L128118-128123-128113300
    DF142/DF142S/DF142M/DF142L142132-142137-142127450
    DF152/DF152S/DF152M/DF152L152142-152147-152137420
    DF167/DF167S/DF167M/DF167L167157-167162-167152420
    DF184/DF184S/DF184M/DF184L184174-184179-184169420
    DF192/DF192S/DF192M/DF192L192182-192187-192177450
    DF205/DF205S/DF205M/DF205L205195-205200-205190450
    DF216/DF216S/DF216M/DF216L216206-216211-216200450
    DF240/DF240S/DF240M/DF240L240230-240235-240210450
    DF257/DF257S/DF257M/DF257L257247-257252-257210450

    Noted:
    1.DF***:125VAC25A 250VAC 25A;
    2.DF***S: 125VAC10/15/16A 250VAC10/15/16A;
    3.DF***M:125VAC 20A 250VAC 20A;
    4.DF***L:125VAC 30A 250VAC 30A( but DF121L,DF128L not UL certificate).







    Size


    Working Principle


    The trigger part is a thermal pellet with special formula.The pellet presses compressiong spring and makes the contact connected under common temperature condition.When the working temperature of thermal link reaches the rated function temperature, the thermal pellet would melt and the compressiong spring is released. Then , trip spring will push star contact and make it disconnected to lead.The circuit would be cut off permanently.
