0603 Ceramic Body Time-delay Slow Blow Acting Time-lag SMD Fuses Surface Mount Chip Fuse

06.100 Series 0.25~8A 63Vdc/32Vdc

Description

●1 .6x0. 81x0.65mm physical size

●Solder-free design

●Designed toUL248-1.

●RoHS compliant,Halogen free and L ead-free

Specifications

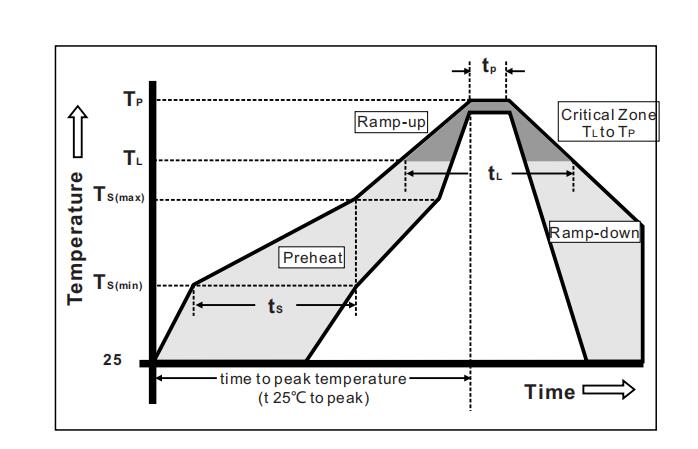

Reflow Conditon

Pb-free assembly

Pre Heat

- Temperature Min (Ts(min))

150℃

- Temperature Max (Ts(max))

200℃

- Time (Min to Max) (ts)

60 – 120 seconds

Average Ramp-up Rate (Liquidus Temp (TL) to peak)

3℃/second max.

TS(max) to TL - Ramp-up Rate

5℃/second max.

Reflow

- Temperature (TL) (Liquidus) - Temperature (tL)

217℃ 60 – 150 seconds

Peak Temperature (TP)

260+0/-5℃

Time within 5°C of actual peak Temperature (tp)

30 seconds

Ramp-down Rate Time 25°C to peak Temperature (TP) Do not exceed

6°C/second max 8 minutes max. 260°C

Product Characteristics

Materials										Body: Ceramic Terminatons: Silver over-plated with tin Element: Alloy(Ag,Cu,Zn) Cover Coat:Glass
Operatng Temperature										-55°C to 125°C Consult temperature rerating curve chart.
Thermal Shock										300 cycles -55°C to 125°C
Humidity										MIL-STD-202F, Method 103B,Condition D
Vibraton										Per MIL-STD-202F, Method 201A
Insulaton Resistance (Afer Opening)										Greater than 10,000 ohms
Resistance to Soldering Heat										MIL-STD-202G,Method 210F, Condition D

Time Current Curve

Packaging

5,000 pieces of fuses in plastic or paper taper

Type

A

B

W

F

E

Spec

1.85±0.10

1.10±0.10

8.00±0.10

3.50±0.05

1.75±0.10

Type

P

P0

P1

D0

T

Spec

4.00±0.10

4.00±0.10

2.00±0.05

1.50±0.10

0.65±0.10

(Unit: mm)
