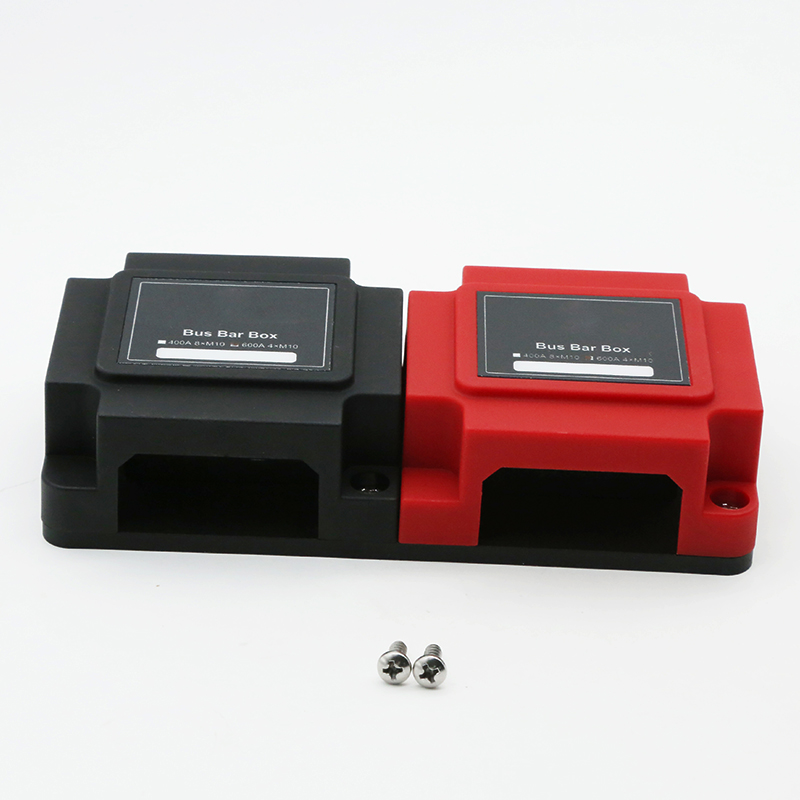

Red Black 8xM10 Studs Bus Bar 400A 12V 48V DC Power Distribution Block Positive and Negative Busbar

.Base& Cover Material: Nylon,Glass Fiber reinforc
.Bus Material: Tin-Plated Copper
.Max Operating Voltage: DC 48V
.Max Continuous Amp: 400A
.Terminal Stud Size: 8xM10(3/8")
.Dimensions(LxWxH): 168x79x40mm

Features of Red Black 8xM10 Studs Bus Bar 400A 12V 48V DC Power Distribution Block Positive and Negative Busbar

1, Premium Materials & Security: Tin-Plated Copper distribution block bus for max conductivity and security. High-current collecting rail is Glass Fiber and Reinforced Nylon base, which ensures great mechanical strength and durability. Stainless steel screws and nuts for improved corrosion and rust resistance in salt water or corrosive environments.
2, The rated current of the 8-posts power distribution block bus bar is 400 Amp. The max. voltage is 48 V DC.
3, Ideal for Multiple Batteries Wiring Configurations: Our bus bar terminal block with 8x 3/8" bolts Terminals, more connection points for the red positive pole and the black negative, removable sides for easy wiring configuration. The 8-way bus wiring block will make setting up your electrical systems quick, neat and easy.
4, Safely Fit for: The Terminal busbar is suitable for max voltage 48 v dc power systems such as solar panel, RV, automotive, trucks, yacht, fresh or salt water boats etc. to consolidate, distribute or protect your electrical system.
5, The Battery Power Distribution Block Bus Bar Box Dimension (L x W x H): 6.61"x 3.11"x 1.57" ( 168x79x40mm).
6, Gauge Cable Fit: The bus bar is rated for 400 amps and the threaded stud is 3/8"( M10). Any gauge wire will work as long as the terminal end has a 3/8" Lug and the combined amp draw of all connected wires do not exceed 400amps.
7, Safe Note: a, the wire and over current protection is sized based on the load; b, Make sure the Lug can work with 400A current.
8, Easy Installation: surface mount, screws included.

Application of Red Black 8xM10 Studs Bus Bar 400A 12V 48V DC Power Distribution Block Positive and Negative Busbar

Marine Boat, Vessels,RV, Tractor, Motorcycle, ATV, UTV, Car, Truck and Other 12V/24V DC Conditions.
