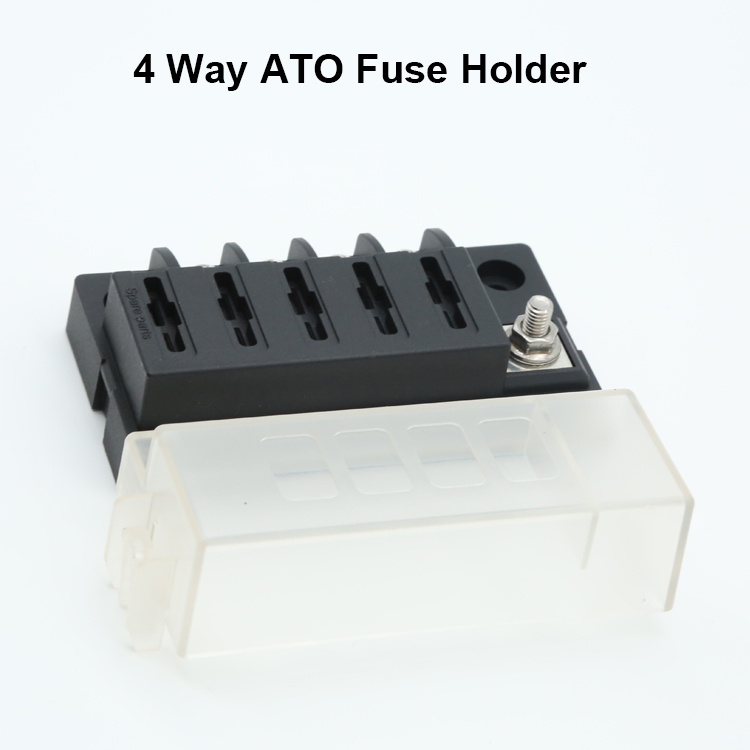

12V 24V Single side Blade Fuse Holder Boat Fuse Box 4 Way Circuit Position Automotive Fuse Block

1. The main material PA66 base+PC cover;.
2. 4pcs ATO blade fuses can be installed;
3. Total input current ≤100A, single circuit current ≤ 30A;
4. 1 input 4 output.

Features of 12V 24V Single side Blade Fuse Holder Boat Fuse Box 4 Way Circuit Position Automotive Fuse Block

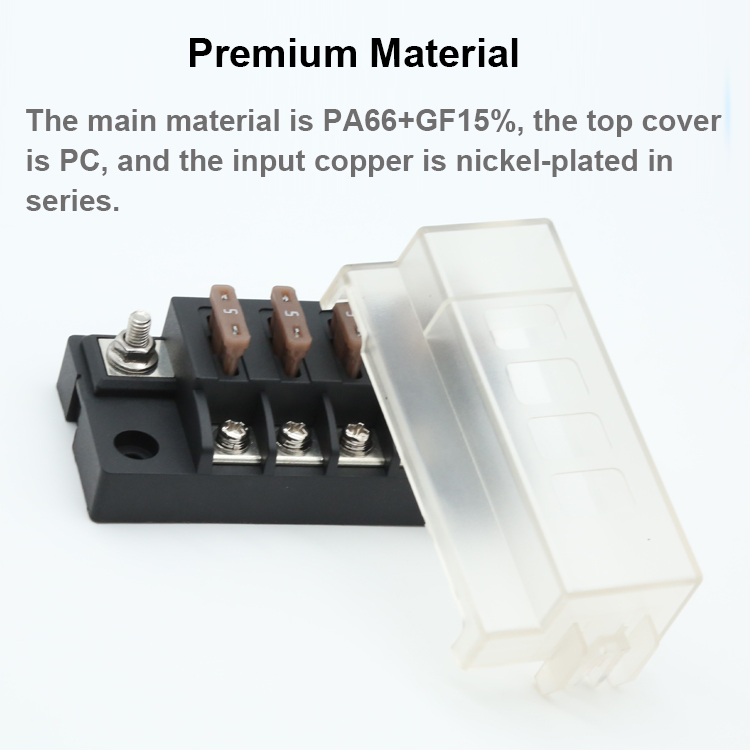

•The main material is PA66+GF15%, the top cover is PC, and the input copper is nickel-plated in series.

•A single slot is suitable for a circuit with a continuous working current less than 30A and a maximum total input current of 120A.

•This 6- way fuse box in sturdy construction can be used in automotive electronic field, motorsport applications, electrical devices, trailers, cars, boats, etc.

Application of 12V 24V Single side Blade Fuse Holder Boat Fuse Box 4 Way Circuit Position Automotive Fuse Block

Ideal for Cars, Vans, Motorcycles, Quads, Boats, Marine, Tractor & Many other Automotive Uses.

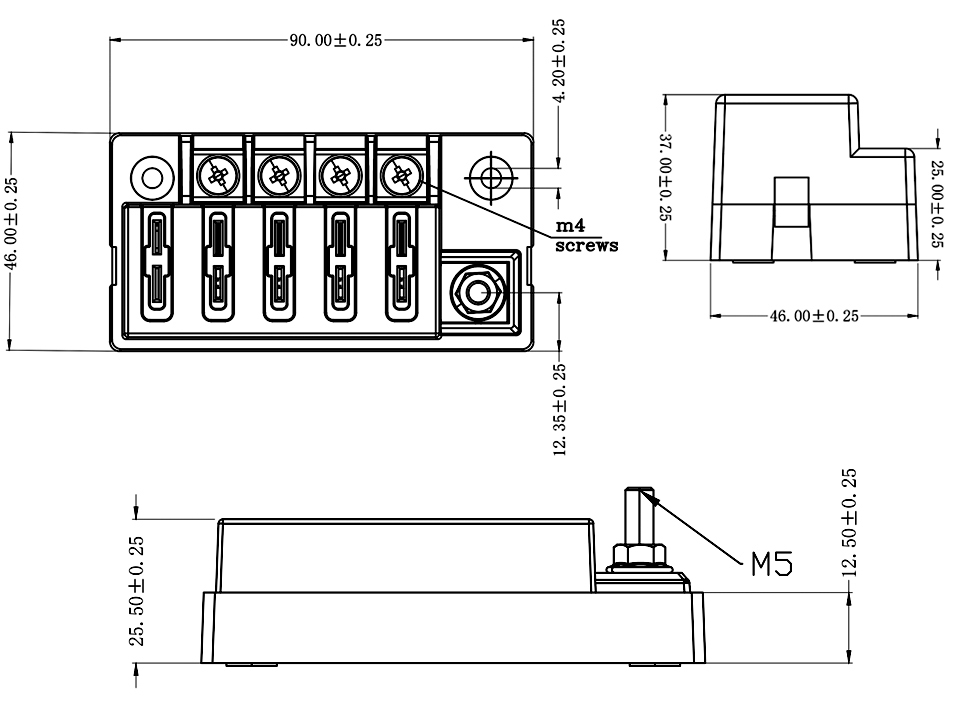

Drawings of 12V 24V Single side Blade Fuse Holder Boat Fuse Box 4 Way Circuit Position Automotive Fuse Block

More Fuse Holders for Options
