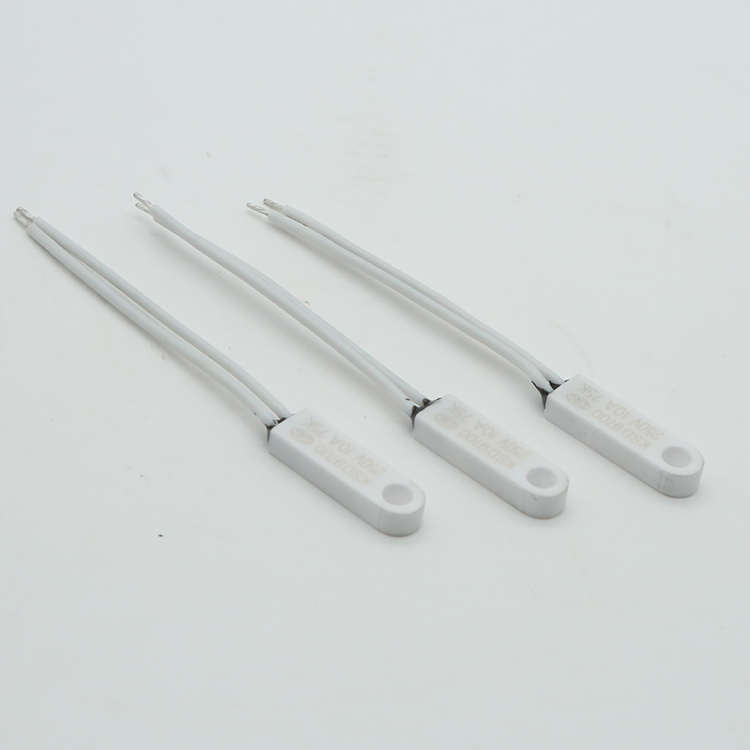

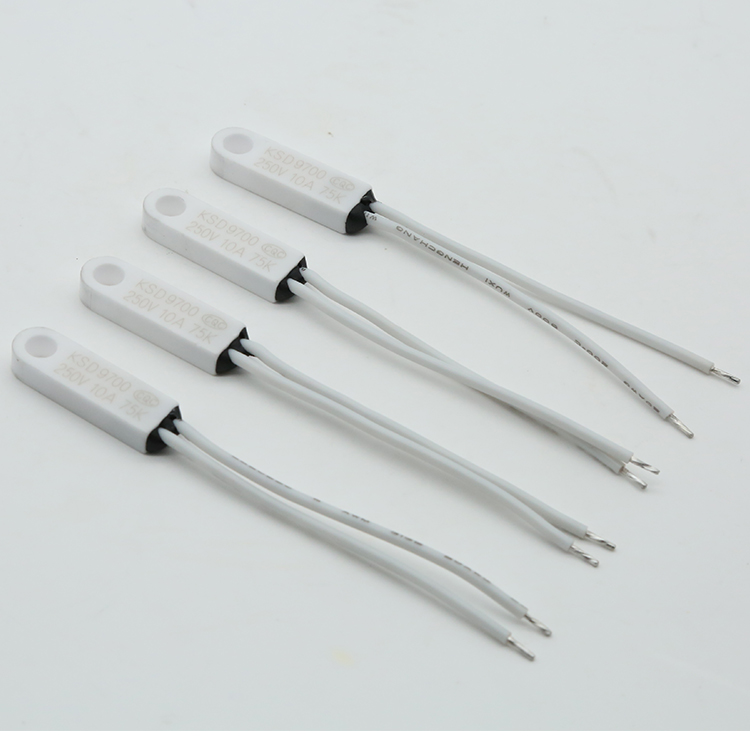

KSD9700 Thermal Switch Protector with Hole 10A 250V 40C to 160C

KSD9700 series thermal protector consists of dish shape high sensitive bimetallic element,movable contact-head,static contact-piece,soleplate,outer case,ghermal resistant lead and so on. When operation,the bimetallic element is in free state and movable contact-head and static contact-piece are closed and the circuit is on.when the electric appliance is in operation is in operation and produces heat caused by some troubles and temperature is raised to the rated action temperature of the product,the bimetallic element produces inner stuess and acts quickly and pushes the movable contact-head and make the vontact point off and the power supply is rurned off the electric appliance stop.in this way the thermal protection is made. When the temperature of electric appliance to be protected is dropped to the rated reset temperature.the bimetallic element restores to its primary state and contact point is closed. The electric appliance restores its work. The product has many advantages such as small in resistor,quick in temperature feeling, fast in action, safe and reliable,compact and so on.

Specification

Technical Parameters

The Model Number Explain

KSD9700-A: The Metals Outer Shell Type Product.

KSD9700-B: The Plastics Outer Shell Type Product.

The Metals Outer Shell Type The Product Outer Shell Take An Electricity, Should Add To Insulate A Coat.

Features of Structure

1.Regard the sensitive bimetal as temperature sensible object, which can quickly sense the temperature, and act quickly without drawn-arc.

2.The design is free from thermal effect of current, providing accurate temperature, long service life and low internal resistance.

3.Applies imported environmental protection material (approved by SGS test) and accord with the requirements of export.

Direction for Use

1.The product is applicable to various motors, induction cookers, dust arrestors, coils, transformers, electrical heaters, ballasts, electric heating appliances, etc.

2.The product should be closely attached on the mounting surface of the controlled instrument when it is arranged in a way of contact temperature sensing.

3.Avoid the collapse or deformation of outer casings under great pressure during installment so as not to decrease the performance.
Note: Clients may choose diverse outer casings and conducting wires subject to different requirements.
