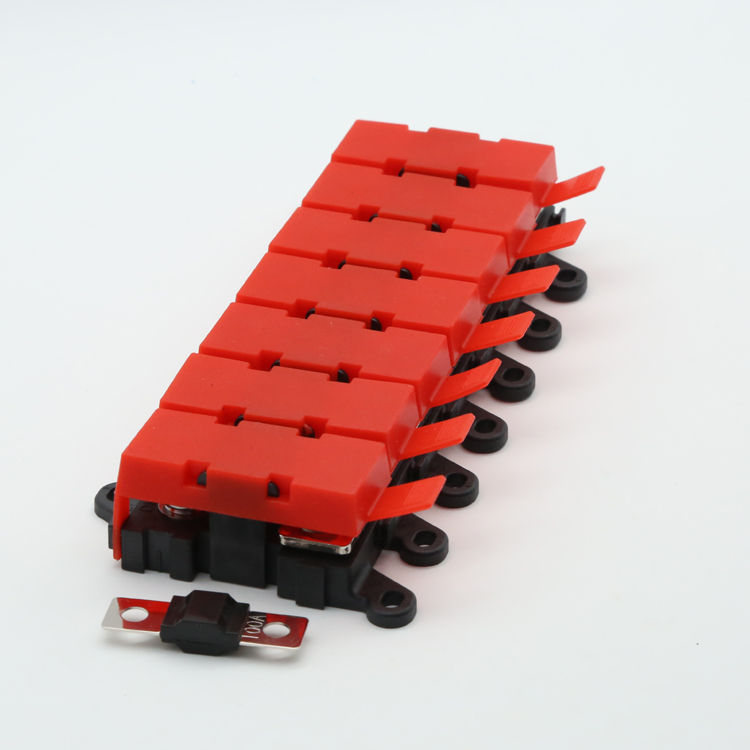

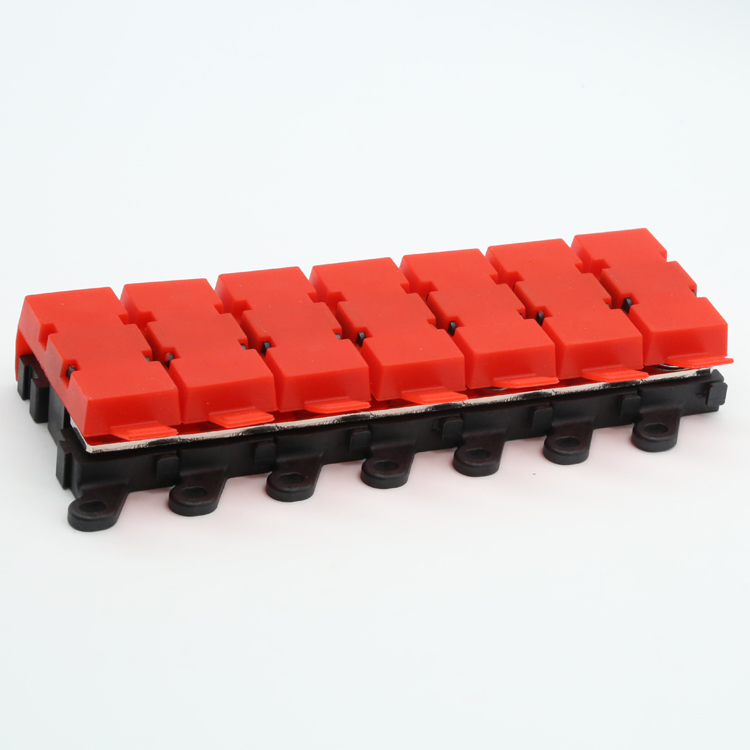

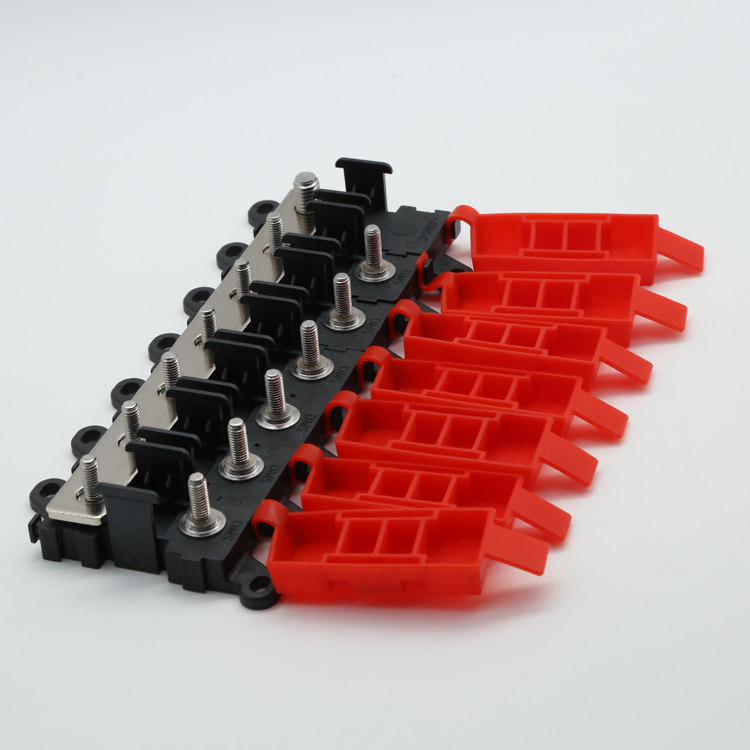

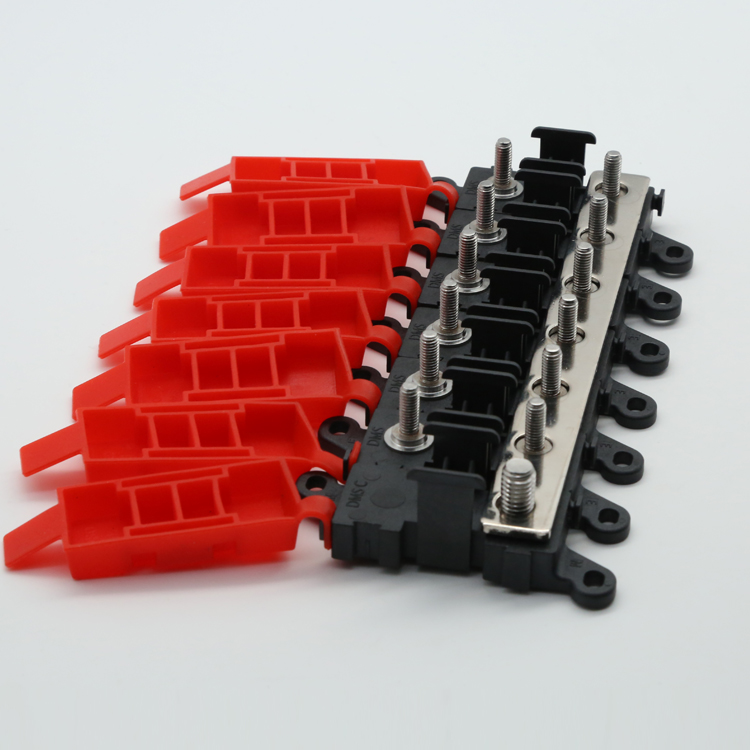

Vehicle Truck RV Modified Large Fork 6 Way Bolt Type ANS MIDI Fuse Holder

Specification

BDFS fuse (medium fuse) multi -pole fuse block
The main branch of the main branch is configured to a suitable 6 MIDI fuse all the bus to a single input thread.
You can perform DIY module
Rick value: MIDI fuse block 200A
Temperature: -40 degrees Celsius (-40 F) to 85 degrees Celsius (185 F)
Torque: Installation: 22 pounds (2.5 nm)
Fuse module: M5, 44 inches-pounds (5 nm)
Enter module: M8,88 inches-pounds (10 nm)

Material:
Silicon rubber cover, temperature -resistant 200 degrees Celsius.
Base PPS, 94V0, temperature resistance 230C.
Narut (input unit): M8 stainless steel band snail snail (MIDI fuse block): M5 stainless steel, K-shaped nuts related products: BDFS (MIDI fuse, 23-200A)

Features

1. Use mainstream components to ensure stable operation and improve system safety;
2. The internal copper bar design has a large flow capacity up to 200A;
3. Engineering plastic shell, flame retardant grade UL 94V0, has the advantages of anti-aging, non-deformation, impact resistance, anti-static, corrosion resistance, etc.;
4. Six-channel insurance output, simple and easy to operate, and easy to maintain.

Application

The products are used in construction machinery, forklifts, agricultural machinery, special vehicles and other equipment to distribute low-voltage power to their equipment and protect back-end electrical appliances.
