Littelfuse Car Mini Blade Fuse 997 0997 Series 58V DC 0997005WXN 0997010WXN 0997015WXN

Littelfuse Car Mini Blade Fuse 997 0997 Series 58V DC 0997005WXN 0997010WXN 0997015WXN

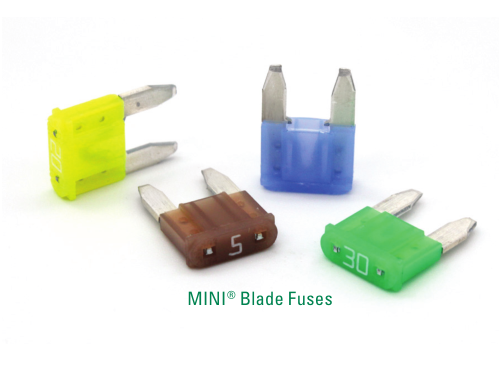

MINI Blade Fuses Rated 58V

MINI style fuse for use in 42V Systems. Same Time-Current characteristic as the 32V MINI fuse. Fits into standard MINI® fuse sockets. Has a rejection feature to prevent fuses with lower voltage rating from being wrongfully inserted into the circuit. Current rating 2A - 30A @58 VDC max.

Specification

Interrupting Rating:	1000A @ 58 VDC
Voltage Rating:	58 VDC
*Component Level Temperature Range:	-40°C to +125°C
Terminals:	Silver plated zinc alloy
Housing Material:	PA66
Complies with:	SAE J2077, SAE 2576 ISO 8820 UL 248 Special Purpose Fuses

Ordering Information

Part Number	Rating	Package Size
0997xxx.WXN	2 - 30	3000

Ratings

Part Number	Current Rating (A)	Housing Material Color	Test Cable Size (mm2)	Typ. Voltage Drop (mV)	Cold Resistance (mΩ)	I²t(A²s)
0997002_	2	0000	0.5	171	55.60	2.8
0997003_	3	0000	0.5	153	33.75	9.4
0997004_	4	0000	0.5	121	23.48	17
0997005_	5	0000	0.5	129	17.75	25
099707.5_	7.5	0000	0.75	135	10.85	68
0997010_	10	0000	1	108	7.42	93
0997015_	15	0000	1.5	98	4.58	270
0997020_	20	0000	2.5	96	3.21	380
0997025_	25	0000	2.5	86	2.36	625
0997030_	30	0000	4	87	1.85	1100

Time-Current Characteristics

% of Rating	Opening Time Min/ Max (s)
110	360,000s/-
135	0.75s/ 600 s
200	0.15s/5s
350	0.080s/0.500 S
600	0.030s/0.100s

Time- Current Characteristic Curves

0997004.WXN, 0997005.WXN, 099707.5WXN, 0997010.WXN, 0997015.WXN, 0997020.WXN, 0997025.WXN, 0997030.WXN
