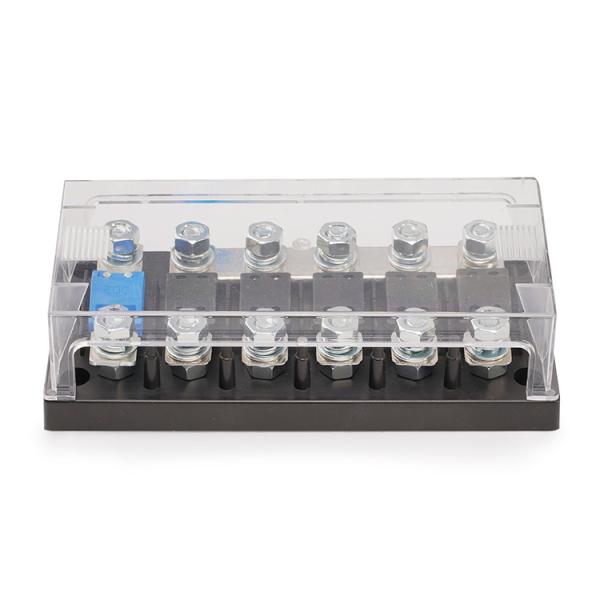

Heavy Duty Marine 6 Way MEGA Fuse Block Holder with Busbar 200A 250A

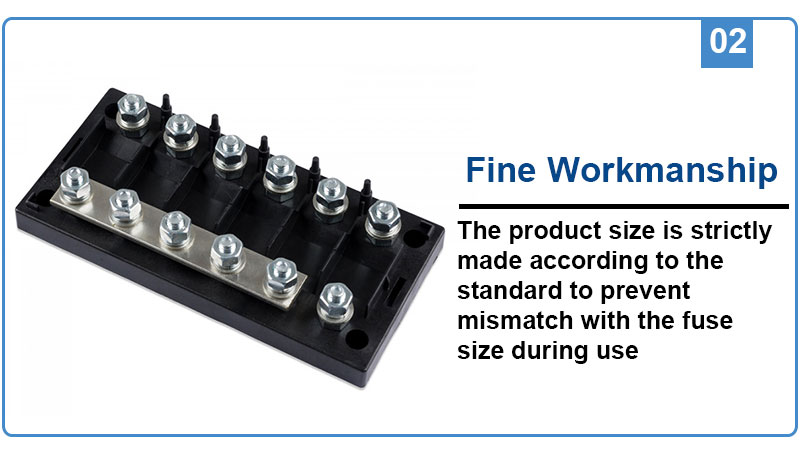

This compact and affordable fuse holder mounts five MEGA fuses on a common copper busbar rated to 250A, plus a single stand-alone fuse, and is rated to 70VDC maximum for appropriate usage on a 12 or 24VDC nominal voltage system.

A typical installation might be a high-capacity stand-alone fuse for an inverter, plus assorted loads like a solar controller, battery charger, and distribution panel mounted to the common source.

Dimension wth the protective cover are 50.9 x 181.5 x 88.0 mm (2.0" x 7.2" x 3.5")

The bolts are galvanized steel, so these are not recommended for salt-water environments.

**Assembly is required (pro tip: thin nuts on the bottom, thick nuts on top)!**

Specification

Features

1. Use mainstream components to ensure stable operation and improve system safety;
2. The internal copper bar design has a large flow capacity up to 250A;
3. Engineering plastic shell, flame retardant grade UL94V0, has the advantages of anti-aging, non-deformation, impact resistance, anti-static, corrosion resistance, etc.;
4. 6-channel insurance output, simple and easy to operate, and easy to maintain.

Application

The products are used in construction machinery, forklifts, agricultural machinery, special vehicles and other equipment to distribute low-voltage power to their equipment and protect back-end electrical appliances.
